Tab Mounting Dimensions
Measurements shown below are in inches and (mm).
Note that DIN mounting is recommended over tab mounting. See
EC-BOS-9. With no option modules added, allow at least 1.5" (38mm) clearance around all sides.
1
2
Option expansion module. Up to four (4) may be used. See
3
Distances between center of tabs from one unit to another unit.
6/13
Mounting on a DIN

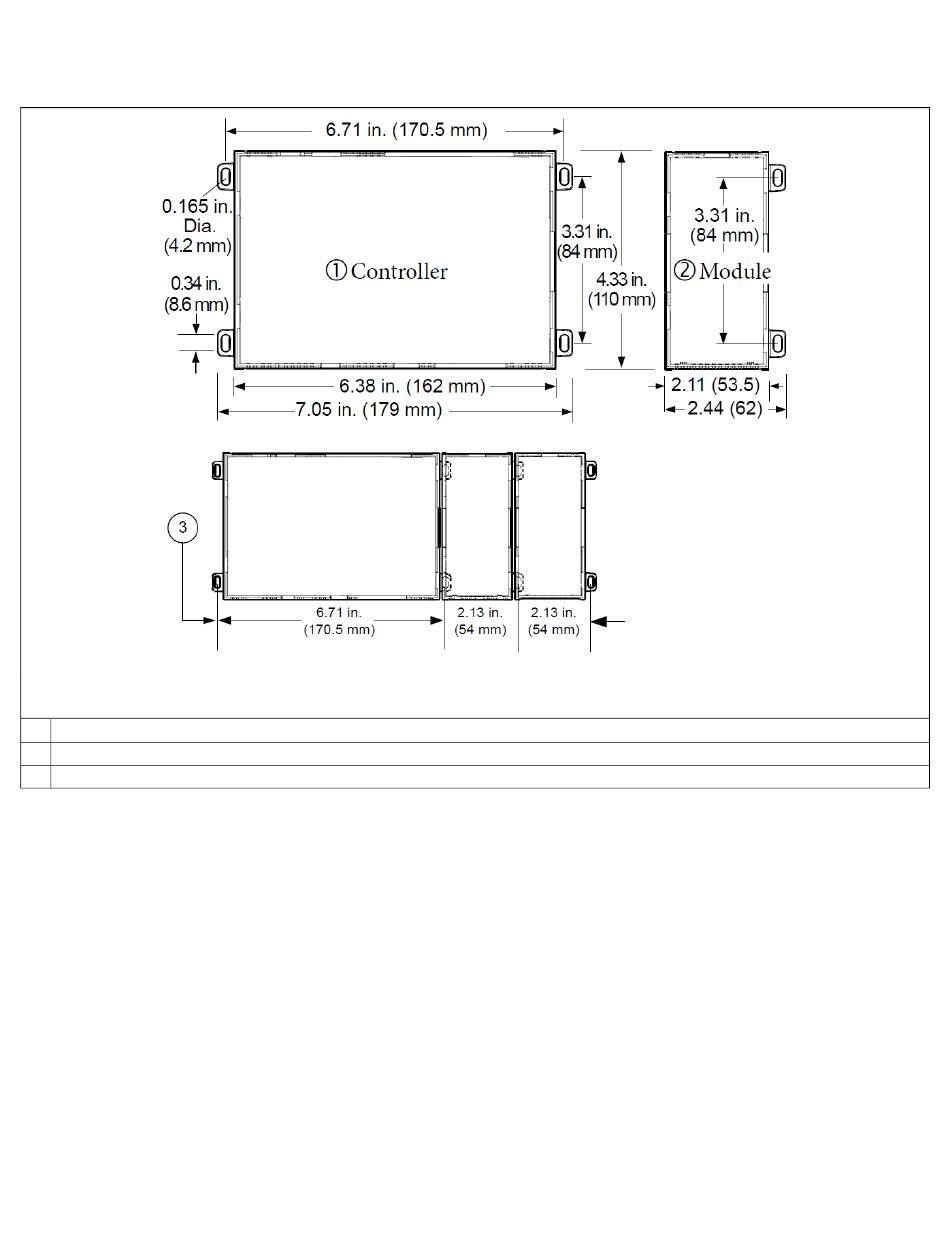

Figure 3: EC-BOS-9 tab mounting dimensions
Option Module and Capacity
Rail.
Considerations.
