Director's Cage for 4"-7" LCD Camera Monitors (P-DMC)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything
that is listed below.
2 x Offset Brackets
2 x Posts
2 x Main Brackets

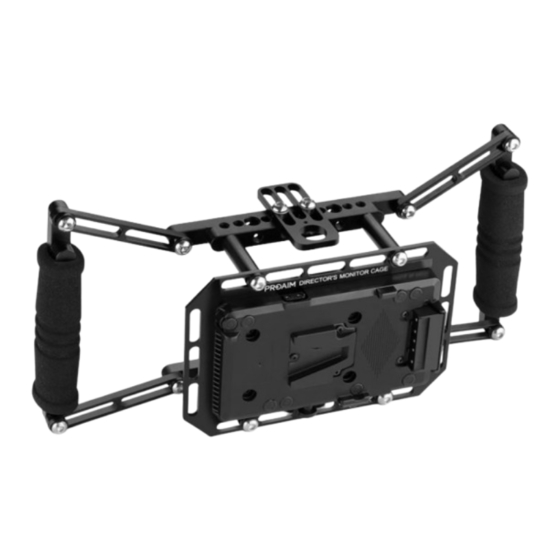

Director's Monitor Cage
6 x Screws
(Size: 1/4"x 3/8")
4 x Side Brackets
2 x Handles
Neck Strap
4 x 1/4"-2" Bolts
14 x Screws
1 x 4mm L-Type
(Size: 1/4" x 5/8")
Allen Key
32 x Plastic Washers
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable
copyright statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM P-DMC
Summary of Contents for PROAIM P-DMC
- Page 1 Director's Cage for 4”-7” LCD Camera Monitors (P-DMC) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Director's Cage Setup Director’s Monitor Cage Assembly • Insert the plastic washer into the 1/4”-2” bolt and insert it into the Director’s Monitor Cage, as shown in the image. • Now, insert the post into the bolt. • Repeat the same step to insert the remaining bolts and posts.
- Page 3 • Repeat the same step for attaching the sec- ond Main Bracket. Offset Bracket Assembly • Mount the Offset Bracket on the Main Brack- et and insert the bolts aligning with the threads. • Tighten the bolts using the Allen Key. •...
- Page 4 Handle Assembly • Attach the handle to the Side Bracket and insert the 1/4” x 5/8” screw. NOTE: To attach the Handle, loosen the screws of the Side Bracket as needed and adjust the side Bracket per your requirement. • After inserting the screw tighten it using the 4mm Allen Key.
- Page 5 • Remove the Bolt and the Post. • Repeat the same step to remove the other bolt and post NOTE: To mount the screen, remove bolts and post , from one Main Bracket only. • Mount the Screen (Not Included) on the Director’s Monitor Cage and insert the screw into the Screen by aligning with the threads.
- Page 6 Neck Strap Assembly • Attach the hook of the Neck strap to the Side Bracket. • Attach the Offset Bracket to the Main Bracket. Feature: The included neck strap helps keep you fatigue-free while walking/running with the cage. • Insert and tighten the bolt using the Allen Key.
- Page 7 YOUR PROAIM DIRECTOR'S CAGE FOR 4”-7” LCD CAMERA MONITORS ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
