Universal 9" Camera Monitor Director Cage (P-DMC-59)
A s s e m b l y M a n u a l

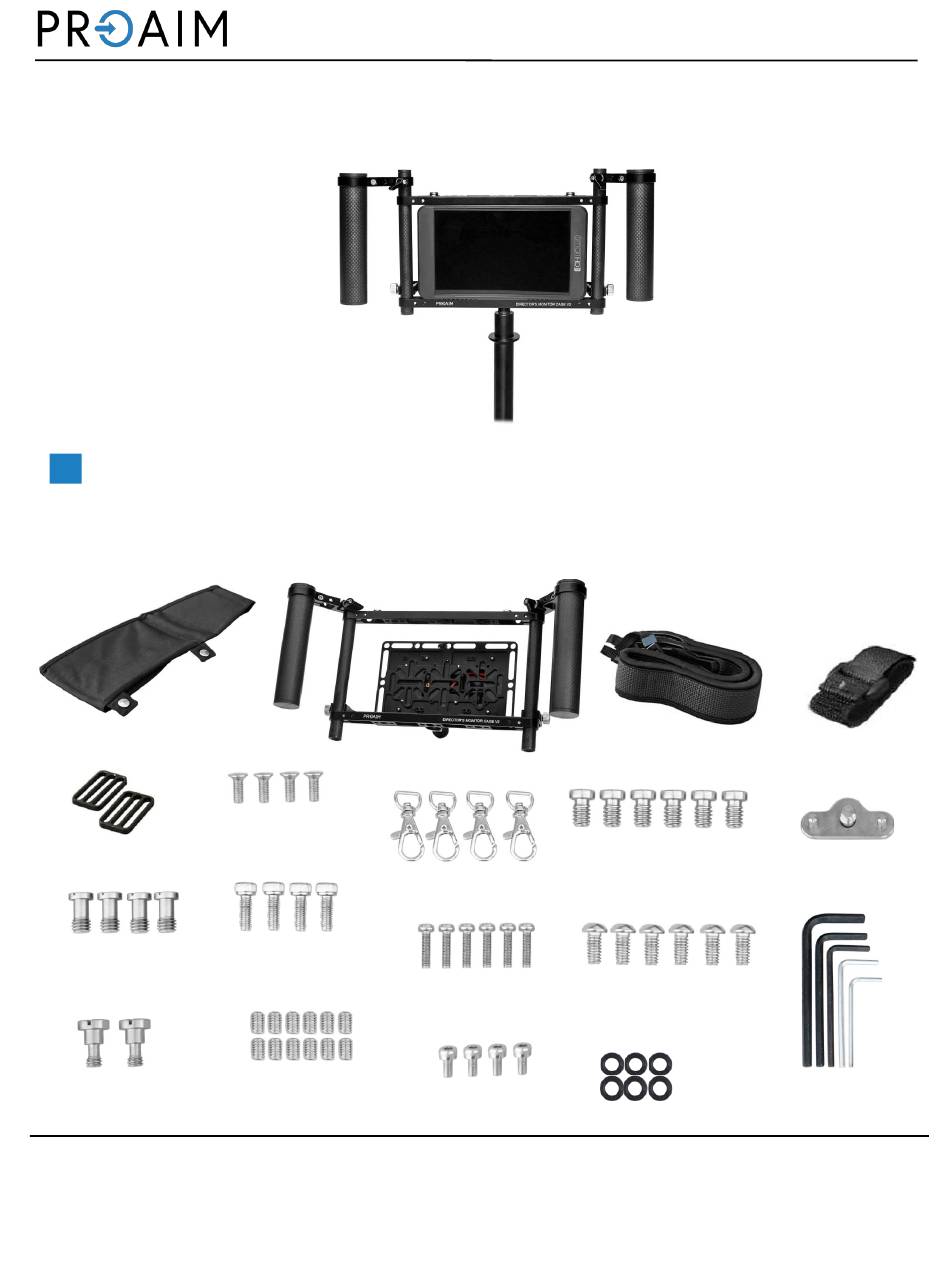

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything
that is listed below.
Sun Shade
Neck Strap
Velcro Strap
Monitor Cage
(4pcs) 3 x 8 mm
Philips screw
2 x Offset brackets
(6pcs) 1/4 X 9.5
1/4 LCD screw
4 x Teradek XT/LT
mm LN Screws
(4pcs)
(4pcs) 3/8 x 16 mm
4x12 mm LN Bolts
(6pcs) 3 x12mm
LCD mount screws
(6pcs) 1/4 X12.5
pan Philips screws
mm BH screws
(12pcs) 6x 4 mm
(2pcs) 1/4 x 14 mm
3/16, 4mm, 3mm, 2.5mm,
(4pcs) 3 x 6 mm
Grub screws
LCD Mount Screws
6 x Washers
2mm Allen keys
LN Screws
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable
copyright statutes or in writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the P-DMC-59 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM P-DMC-59

Summary of Contents for PROAIM P-DMC-59

  • Page 1 Universal 9” Camera Monitor Director Cage (P-DMC-59) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
  • Page 2 Director's Cage Setup Handle Adjustment • Loosen the Handle’s knob and move the Handle to the front. • Now, securely re-tighten the knob. • Follow the same process for the second Handle. Main Bracket Adjustment • Loosen both the screws of the main bracket using the 3mm Allen Key.
  • Page 3 Main Bracket Height Adjustment...
  • Page 4 Screen Mounting • Mount the Screen (Not Included) the Director’s Monitor Cage. • Now, insert the (1/4 x 9.5mm) LN screw. • Now, securely tighten the LN Screw using the 4mm Allen key. Offset Bracket Mounting • Attach the Offset Bracket to the Main Bracket. •...

  • Page 5: Battery Mounting

    Neck Strap Mounting • Attach the Neck strap to the Side Bracket. Feature: The included neck strap helps keep you fatigue- free while walking or running with the cage. Battery Mounting • Attach the V-Mount Battery (Not Included) to the Di- rector’s Monitor Cage.
  • Page 6 • Mount the Director’s Monitor Cage on the Stand (Not Included). • Re-tighten the bottom knob of the Director’s Monitor cage to secure it. Feature: The cage's design allows you to mount it on any C-stand or Tripod, giving you the freedom to choose your setup and empower your creative process.
  • Page 7 This feature ensures your equipment is safe from scratches. YOUR PROAIM UNIVERSAL MONITOR DIRECTOR CAGE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase.
