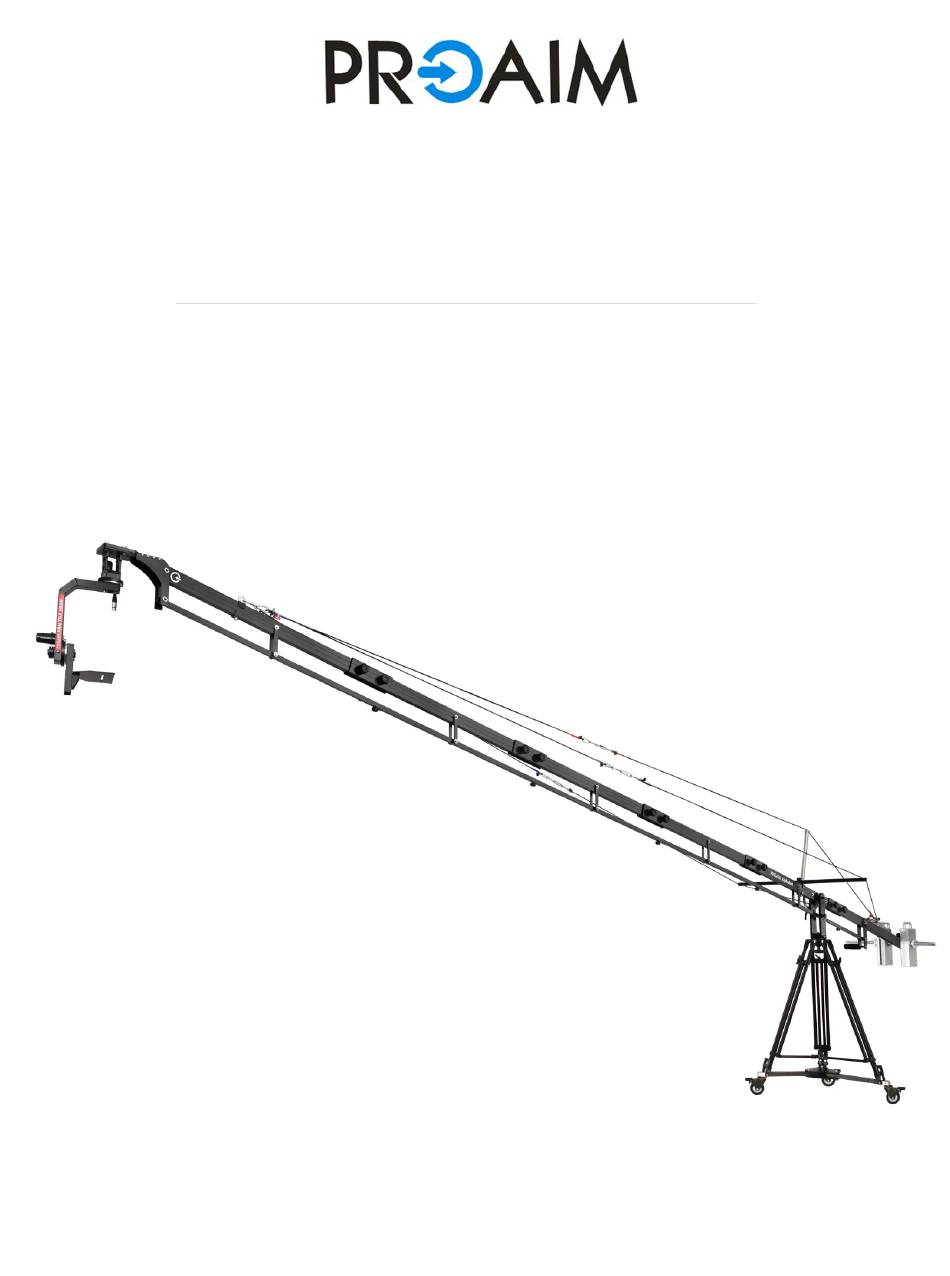

Alphabet 21ft Jib Crane
Package
(P-A21-JCP)
I N S T R U C T I O N M A N U A L
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by
the applicable copyright statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM P-A21-JCP
Summary of Contents for PROAIM P-A21-JCP
- Page 1 Alphabet 21ft Jib Crane Package (P-A21-JCP) I N S T R U C T I O N M A N U A L All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
- Page 2 Camera Cranes are quite important tools in the world of filmmaking especially when you want to add visual interest to your shots. To achieve this, Proaim introduced Alphabet 21ft Jib Crane Package that is highly stable and gets easily integrated into your shooting style. Along with this, we also kept it lightweight, compact and quick to assemble so that you can use it in various shooting scenarios.
- Page 3 Proaim Alphabet 21ft Jib Crane package...
- Page 4 Proaim Alphabet 21ft Jib Crane package Storage Bags...
- Page 5 Proaim Alphabet 21ft Jib Crane package ASSEMBLING YOUR PROAIM PORTABLE DOLLY • Take out the bolt from the center of dolly and spread it on floor. Then put the bolt back through the center of dolly again. • Now, place the tripod foot on the dolly and tie it down with the help of elastic clips as shown in the picture.
- Page 6 Proaim Alphabet 21ft Jib Crane package ASSEMBLING JIB SECTIONS • Install the Hub (Section 2 of Jib) into bowl of your 100 mm tripod stand and tighten the hub with center locking knob. ASSEMBLING JIB SECTIONS • Loosen the provided knob at the end of section 2 to slide the bars of section 3 into the end of section 2 •...
- Page 7 Proaim Alphabet 21ft Jib Crane package 2. Section 2a with 2, 2b with 2a, 2c with 2b & 1 with 2c : For attaching these sections follow the same steps as mentioned above. A S S E M B L I N G C A B L E G U I D E A N D S U P P O R T R O D •...
- Page 8 Proaim Alphabet 21ft Jib Crane package 2. Section 2a with 2, 2b with 2a, 2c with 2b & 1 with 2c : For attaching these sections follow the same steps as mentioned above. A S S E M B L I N G C A B L E G U I D E A N D S U P P O R T R O D •...
- Page 9 Proaim Alphabet 21ft Jib Crane package • Similarly attach the second blue cable and align both the blue cables to the side of support rod. • Now attach one end of 14.3ft red cable to red hook on back side of jib (section 3 ) and align the red cable to the cable guide from top.
- Page 10 Proaim Alphabet 21ft Jib Crane package • The jib arm can be locked (tilting) with the help of this knob. • Insert the weight rod & weights (not supplied) to both ends and secure with the help of closers. •...
- Page 11 Proaim Alphabet 21ft Jib Crane package M O U N T I N G C A M E R A O N H E A D P L A T F O R M • Camera can be mounted directly on the head platform with the help of provided chuknut.
- Page 12 Install the 12 volt DC power (4 pin XLR) in rear of joystick box. Note: Any 12 volt battery may operate the PROAIM™ Sr. PAN TILT HEAD as long as the connector mates and is #1 pin Negative and #4 pin Positive.
- Page 13 Proaim Alphabet 21ft Jib Crane package • Attach the 4-pin power cord to rear of joystick box. • Attach the four pin male connector of cable to the four pin female connector of head for panning & tilting. • If the joystick control is opposite, undo the connectors at the motors, rotate 180 degrees and re-install.
- Page 14 Proaim Alphabet 21ft Jib Crane package 1 8 f t j i b Length: 18ft Camera Plate Length: 0.8 ft Length without Camera Plate: 17.15 ft Length with camera Plate: 17.95 ft (Complete Length) Camera Weight Without Camera 15Kg Counter Weight 16Kg (16 + 3.5)=19.5Kg...
- Page 15 Proaim Alphabet 21ft Jib Crane package YOUR ALPHABET 21FT CAMERA JIB CRANE PACKAGE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
