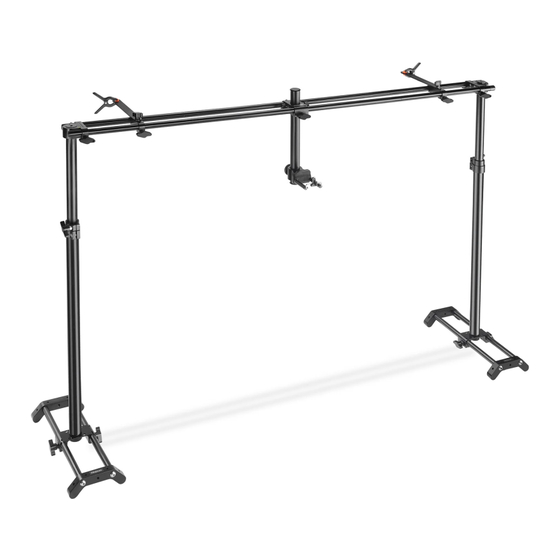

4ft Versatile Overhead Camera Platform System (P-OHCP-02)
A s s e m b l y M a n u a l

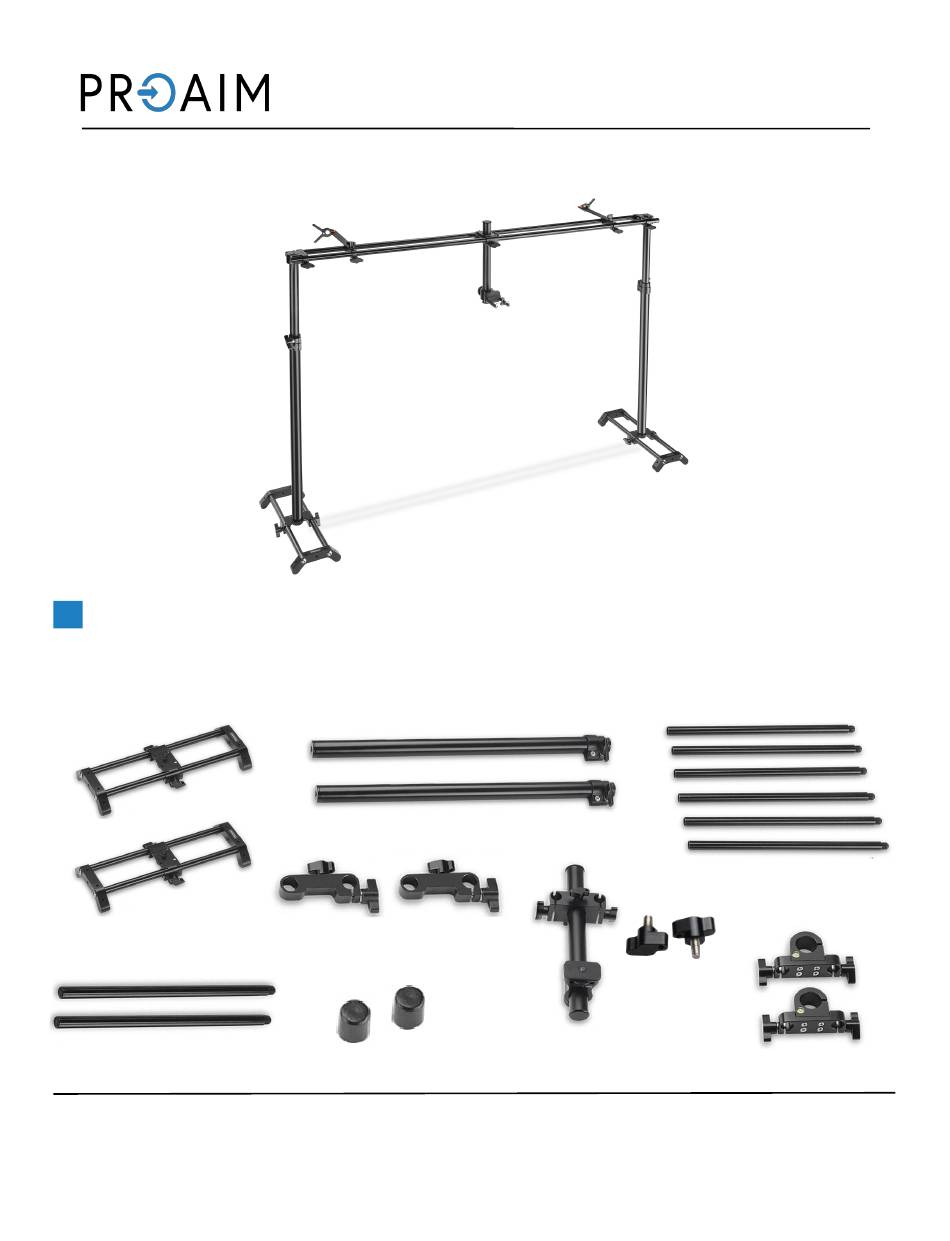

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
2 x Telescopic Poles
6 x 300mm Male Rods
2 x Pole Stands
2 x Accessory Clamps
2 x Knobs
Center Bar with adjustable
2 x Pole Connectors
camera mount
2 x 300mm Female Rods
2 x Female Caps
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM P-OHCP-02
Summary of Contents for PROAIM P-OHCP-02
- Page 1 4ft Versatile Overhead Camera Platform System (P-OHCP-02) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 2 x Backdrop Brackets iPhone Adapter 1 x 3/16” L-Type Allen key BS100 2 x Plastic Clips 1 x 4mm T-Type Allen key...
- Page 3 INDEX Sr. No Particulars Page No. 4ft Versatile Overhead Camera Setup Telescopic Poles & Pole Stand Assembly Height Adjustment Pole Connector Assembly Male & Female Rods Assembly Center Bar Assembly Accessory Clamps Assembly Backdrop Brackets Assembly Center Bar Positioning Center Bar Height Adjustment Camera Setup iPhone Adapter Assembly...
-
Page 4: Height Adjustment
4ft Versatile Overhead Camera Setup Telescopic Poles & Pole Stand Assembly • Insert the telescopic pole into the pole stand. • After inserting the pole stand, tighten the knob on the bottom side of the telescopic pole. • Repeat the same process for inserting the second telescopic pole into the pole stand. - Page 5 • Adjust the position of the pole stand per your requirement. Pole Connector Assembly • Loosen the bolt of the pole connector using a 4mm T-Type Allen key and mount it on the pole stand. • After mounting the pole connector, re-tighten the bolt.
- Page 6 Center Bar Assembly • Insert both side knobs into the Center Bar. • Loosen the side knob of the Center Bar and insert the rod. • After inserting the rod, securely tighten the knob. • Repeat the same process for inserting the second rod.
- Page 7 • After inserting the rods, tighten the knob securely. • Loosen both knobs of the pole connector and insert both rods with clamp accessory into the pole connector, as shown in the image. • After inserting the rods, re-tighten the pole connector knobs.
- Page 8 Feature: The knob can be loosened or tightened for adjusting the backdrop brackets. Center Bar Positioning • To adjust the position of the Center Bar, loosen its knobs and adjust the Center Bar per your requirement. Different Positioning of Center Bar Center Bar Height Adjustment •...
- Page 9 Camera Setup • Loosen the knob on the camera mounting platform position your requirement. • Attach the Camera (Not Included) to the camera mounting platform and lock it securely. • Your Camera is securely mounted. • Use the two plastic clips to clamp your backdrop to the brackets.
- Page 10 • Slide the iPhone Adapter and mount your iPhone (Not Included) on it. BS100 Mounting • Attach the BS100 to the Camera Mount on the Center Bar. NOTE: The Centre Bar, with an adjustable Camera Mount featuring a 1/4"-20 knob, is compatible with most Cameras.
- Page 11 YOUR PROAIM 4FT VERSATILE OVERHEAD CAMERA PLATFORM SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
