Spin-3 (3-Axis) Motorized Pan Tilt Head (PT-SPIN-3)
A s s e m b l y M a n u a l

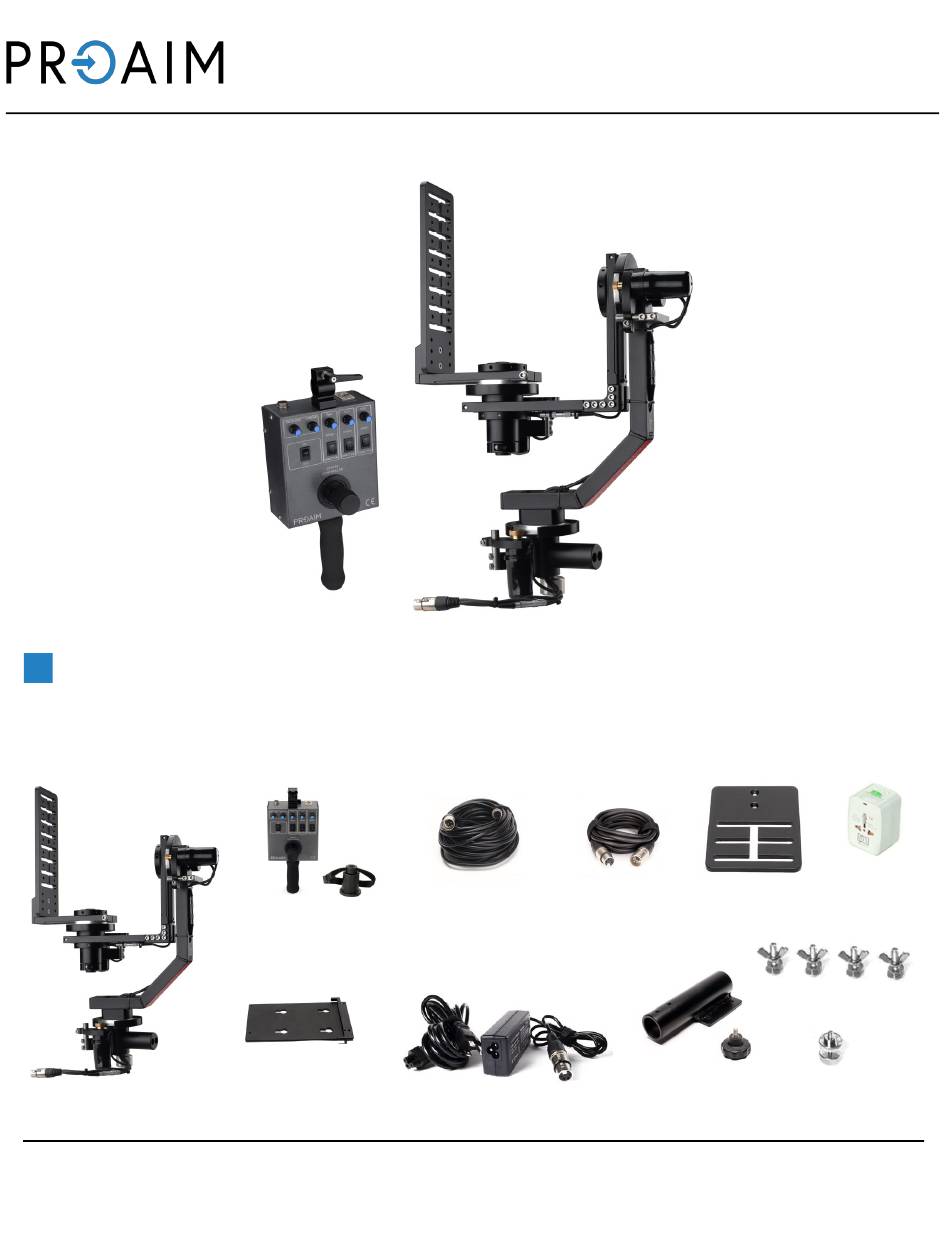

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Universal
3m Power/
Camera Plate
15m Controller
Adapter
Spin-3 Joystick
Adapter Cable
Cable
Controller with Cap
Fasteners
Pan-Tilt
Joystick Controller
Mounting
1/4" Camera
Spin-3 Pan-tilt Head
Plate
12V AC Adapter
Plate and knob
Mounting Screw
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM Spin-3
Summary of Contents for PROAIM Spin-3
- Page 1 Spin-3 (3-Axis) Motorized Pan Tilt Head (PT-SPIN-3) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Spin-3 Axis Pan-tilt Head Mounting • Attach the Pan-tilt mounting plate onto the Jib arm using the provided fasteners. • Attach Spin-3 Pan-Tilt head to the mounting plate and insert the knob. • The Spin-3 Pan-Tilt Head is securely attached to the mounting plate.
-
Page 3: Camera Mounting
Camera Mounting • Mount the Camera (Not Included) on the camera plate and insert the bolt. • Tighten the bolt using a screw driver (Not included). NOTE: The Head will pan, tilt and roll through 360°, this enables to point the camera upwards or downwards when required. - Page 4 • Pan-Tilt Roll Direction - Allows reversing of the panning and tilting direction as needed. Parts of Spin-3 X Joystick Controller Fuse Holder 4-Pin Power 4-Pin XLR Dead Spot Pan-Tilt Roll Damping Control Speed...
- Page 5 AC Adapter & Universal Adapter Assembly CAUTION: Do not use an unregulated power supply. • A regulated power supply must produce less than 24 volts. • We do not recommended for 24 volts . • More than 24 volts may cause permanent damage. •...
- Page 6 4. Fine-Tune Balance Using Counterweights: Attach an appropriate counterweight (or set of counterweights) on the opposite side of the imbalance: If the camera is front-heavy (tipping forward), place a counterweight on the back of the rig. If the camera is back-heavy (tipping backward), place a counterweight in the front. For side-heavy imbalances (e.g., due to a heavy accessory like a monitor on one side), add the weight on the opposite side.
- Page 7 10. Lock and Secure All Adjustments Once the camera is fully balanced, tighten all locks and screws to secure the setup. Ensure the sliding axis arm is locked in place and any counterweights or accessories are securely mounted. 11. Power On and Test the System After securing the balance, power on the pan-tilt head and run test movements through the full range of motion: Sliding Balance Arms...
- Page 8 Adjustable Sliding Axis Arms...
- Page 9 YOUR PROAIM SPIN-3 MOTORIZED PAN-TILT HEAD ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
