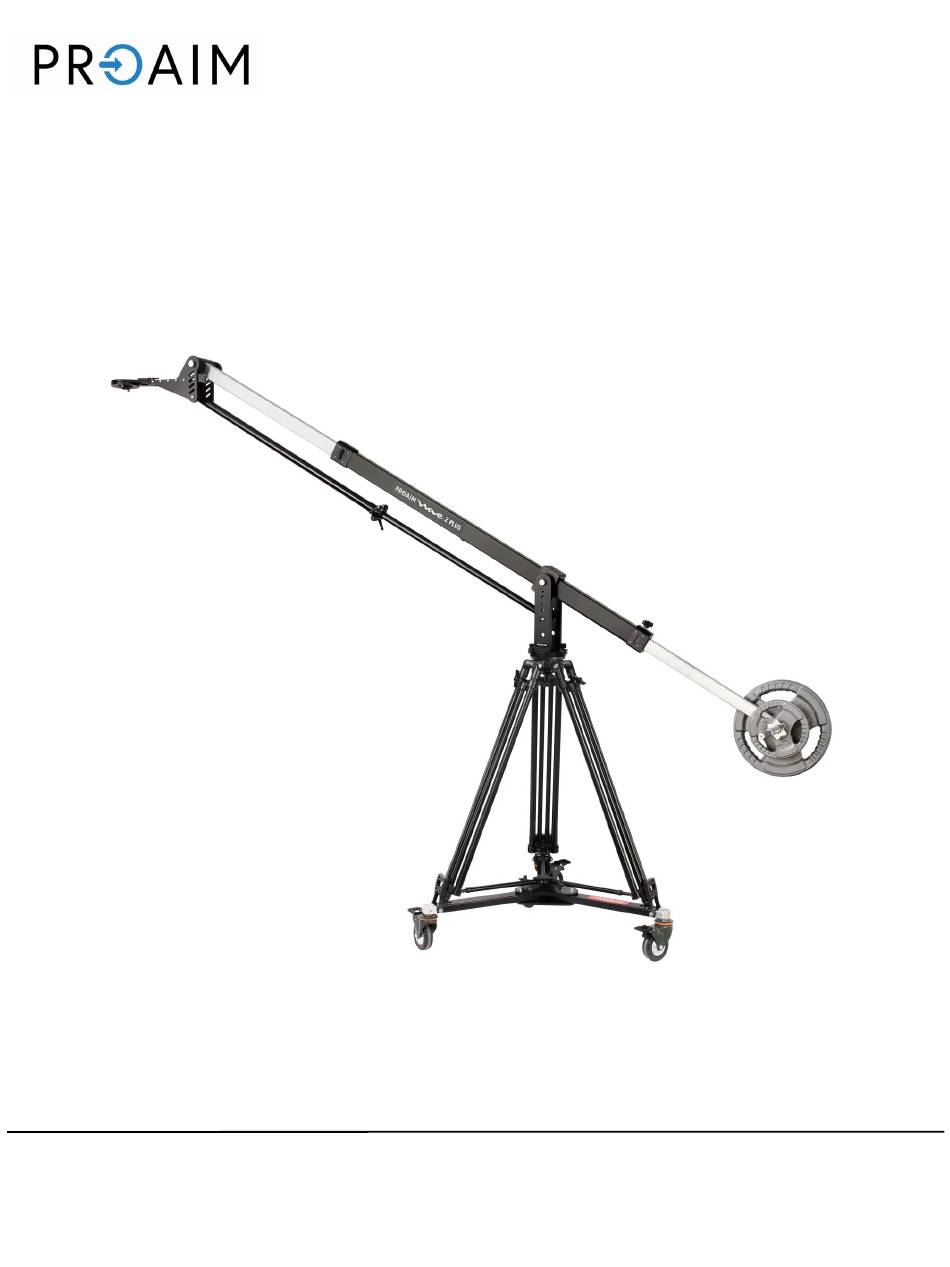

10' Wave-2 Jib Crane, Dolly Stand for Camera
(P-WV-2PL-SD)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM P-WV-2PL-SD
Summary of Contents for PROAIM P-WV-2PL-SD
- Page 1 10' Wave-2 Jib Crane, Dolly Stand for Camera (P-WV-2PL-SD) All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright...
-
Page 2: What's In The Box
What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. 10’ Wave Jib Crane with 100mm Bowl Weight Rod 100mm Bowl 2 x Knobs Flat Base Plate 75 mm 2 x Weight Closers 2 x Ratchet Knobs Conversion Ring... - Page 3 CST-100 Tripod Stand , Spreader & Portable Dolly Portable Dolly Aluminum Spreader CST-100 Tripod Stand Storage Bag...
-
Page 4: Table Of Contents
INDEX Sr. No Particulars Page No. CST-100 Tripod Stand Assembly Aluminum Tripod Spreader Portable Dolly Assembly CST-100 Stand Mounting on Dolly Jib Section Assembly 8-10 Jib mounting on Tripod Stand 10-11 Weight Rod & Weight Mounting 100mm Bowl setup 75mm Conversion Ring 13-14 Flat Base Plate Setup 14-15... -
Page 5: Cst-100 Tripod Stand Assembly
Camera Jib Setup CST-100 Tripod Stand Assembly • Stretch and open the legs of the tripod to set it up. • To adjust the height, loosen all three adjust- ment knobs. Set the tripod to your desired height, then re-tighten the knobs to secure it. NOTE: The tripod height ranges from 34"... -
Page 6: Aluminum Tripod Spreader
Aluminum Tripod Spreader • Lay the spreader flat on the floor. Loosen the knob to extend the length of the feet, then re-tighten the knob to secure them at the desired length. Feature: Each leg has adjustable knobs for stable height adjustments. •... -
Page 7: Portable Dolly Assembly
Portable Dolly Assembly • Using a 13mm spanner, loosen the side bolt of the Portable Dolly. • Remove the nut, washer, and Bolt. • Repeat the same process to remove the side bolts from the remaining sides of the Dolly. •... -
Page 8: Cst-100 Stand Mounting On Dolly
CST-100 Stand Mounting on Dolly • Place the tripod feet on the Dolly and secure them using the elastic clips. • Press the clamps to lock the wheels at a static position. Feature: The Tripod with Spreader provides immense support with an incredible payload of up to 80kg / 176lb, ensuring your setup is highly stable and secure. - Page 9 • Loosen the Allen bolts on the jib arm using a 3/16 Allen key. • Extend, the front telescopic post as needed. • Loosen the Allen bolts using the 3/16 Allen key to extend the telescopic weight section of the jib. •...
-
Page 10: Jib Mounting On Tripod Stand
• For double locking, repeat the process: insert a washer followed by a ratchet knob, as shown in the image. • Finally, ensure everything is tightly secured by firmly tightening the Ratchet Knobs. NOTE: Ensure that the central fork is properly seated in the tripod bowl, maintaining a perpendicular position. - Page 11 Feature: The well-built pan knobs control the panning of the Jib. Built-in bubble leveler allows for fast, accurate setup on uneven surfaces. And experience seamless panning with premium roller bearings that deliver smooth, fluid motion every time. • Use the 3/16" Allen key to loosen the Allen bolts on the telescopic weight section.
-
Page 12: Weight Rod & Weight Mounting
Weight Rod & Weight Mounting • Insert the Weight rod into the weight section of the jib. • Slide the weights (Not Included) onto the weight Rod. • After adding the weight, insert the weight closure to prevent them from sliding off. NOTE: It's crucial to ensure that the opposite end of the jib arm is correctly secured to prevent any sudden upward movement when... -
Page 13: 100Mm Bowl Setup
100mm Bowl Setup NOTE: The Wave Jib has a 100mm bowl attached to its camera plate. • Loosen the locking knob on the 100mm fluid head (Not Included). • Detach the locking knob and mount the 100mm fluid head (Not Included) onto the 100mm bowl. -
Page 14: Flat Baseplate Setup
• Mount t h e 7 5 mm fl u i d h e a d (Not Included) onto the 75mm bowl. Secure it using the locking knob. • Mount the camera (Not Included) onto the fluid head, and press the red knob to secure Camera in position. -
Page 15: Sr. Pan-Tilt Head (Not Included) Mounting
• Align and attach the Flat Baseplate at the bottom of the camera mount. • Insert and tighten all bolts securely. Sr. Pan-Tilt Head (Not Included) Mounting • Attach the Sr. Pan-Tilt head (Not Included) the Flat base plate by inserting the bolts. •... -
Page 16: Balancing Tips
NOTE: Attach the flat base plate to the bottom of the camera mount for underslung Camera setup. Balancing Tips : Camera Weight 15kg 20kg 25kg Counter Balance 30kg 40kg 50kg Measured Length 305cm 259cm 208cm Length from U Fork 201cm 172cm 143cm to Camera Plate... -
Page 17: Final Setup
YOUR PROAIM 10' WAVE-2 JIB CRANE, DOLLY STAND FOR CAMERA ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
