INDICATOR LIGHTS

Layout
Warnings are indicated by the
corresponding warning light.
Warnings are indicated by the
general warning light in com-
bination with a dialog in the
instrument cluster. The general
warning light lights up in either
yellow or red, depending on
the urgency of the warning.
The general warning light
lights up for whichever
warning is most urgent at the
current time.
You will find an overview of
the potential warnings on the
following pages.

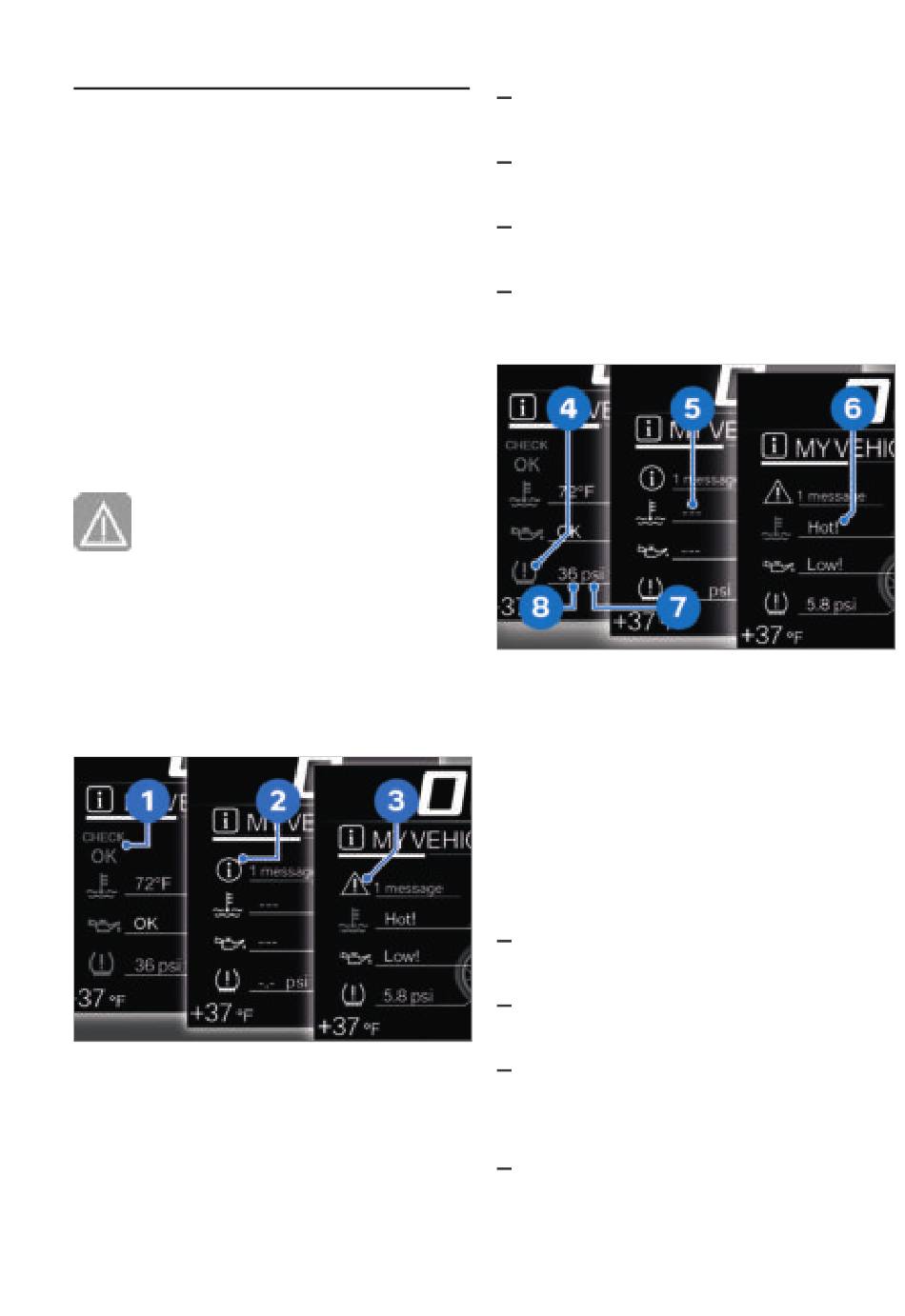

Check Control display
The messages in the display
are shown differently in the
display. Different colors and
characters are used depending
on the priority:
Green CHECK OK 1: no mes-
sage, optimal values.
White circle with lowercase
"i" 2: information.
Yellow warning triangle 3:
warning, value not optimal.
Red warning triangle 3: warn-
ing, value critical
Value display
The icons 4 are displayed dif-
ferently. Different colors are
used depending on the assess-
ment of value. Instead of nu-
merical values 8 with units 7,
texts 6 are also displayed:
Color of the icon
Green: ( ) Current value is
OK
optimal.
Blue: (
Cold!
perature is low.
Yellow: (
Low!
rent value is too low or too
high.
Red: ( /
Hot!
temperature or value is too
high.
) Current tem-
/ ) Cur-
High!
) Current
High!
