1.1

System requirements

To test the X-STM32MP-GNSS2, you need:
• an X-STM32MP-GNSS2
• an STM32MP157F-DK2
• a laptop/desktop (with Windows 10 or above)
• a USB Type-A to micro-B USB cable (for connection as a virtual serial device, if required)
• a USB PD compliant 5 V 3 A power supply with a USB Type-C® to Type-C® cable
1.2

Board setup

To set up the board, follow the steps below.
Step 1. Check the position of the jumper on the J4 connector. This jumper enables the write operation for the
EEPROM, if required.
UM3283 - Rev 1

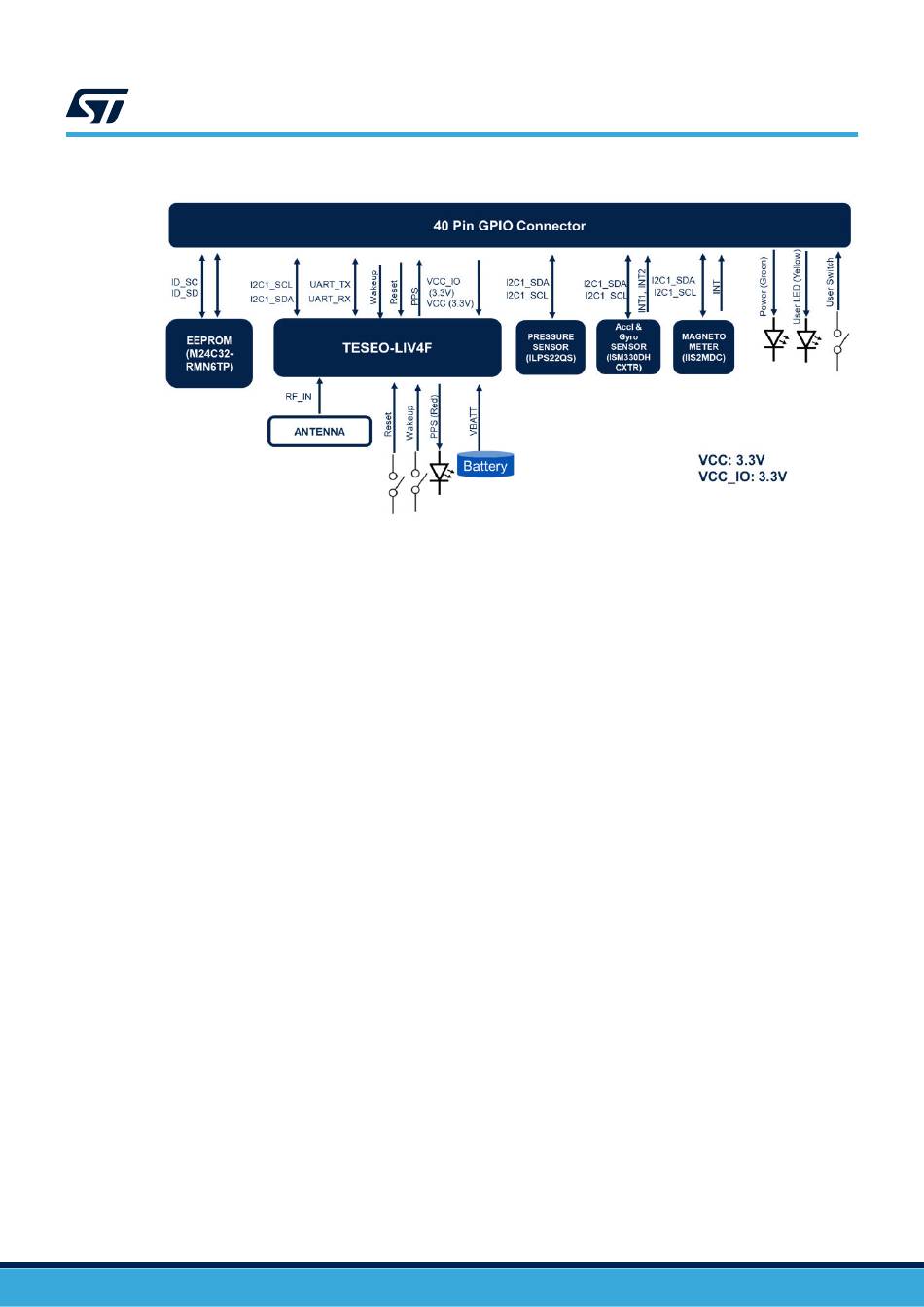

Figure 3. System Block diagram
expansion board
discovery kit
UM3283
Overview
page 3/29
