Getting started with the X-NUCLEO-LIV4A1 expansion board based on the Teseo-
LIV4F Tiny GNSS dual-bands low power module for STM32 Nucleo
Introduction
The
X-NUCLEO-LIV4A1
expansion board is based on the
engine modules.
It represents an affordable, easy-to-use, global navigation satellite system (GNSS) module, embedding TESEO IV single die
GNSS receiver IC working simultaneously on multiple constellations GPS/Galileo/ Glonass/BeiDou/QZSS) able to provide
positioning (Teseo-LIV4F) in your
The Teseo-LIV4F is a compact (9.7 x 10.1 mm) module that provides superior accuracy thanks to the on-board temperature-
compensated crystal oscillator (TCXO) and a reduced time-to-first fix (TTFF) with its dedicated real-time clock (RTC) oscillator.
The Teseo-LIV4F module runs the GNSS firmware (X-CUBE-GNSS1) to perform all GNSS operations including acquisition,
tracking, navigation, and data output without external memory support.
The
X-NUCLEO-LIV4A1
expansion board is compatible with the Arduino® UNO R3 connector and the ST morpho connector, so
it can be plugged to the STM32 Nucleo development board and stacked with additional STM32 Nucleo expansion boards
UM3296 - Rev 1 - February 2024
For further information contact your local STMicroelectronics sales office.
Teseo-LIV4F
STM32 Nucleo
project.

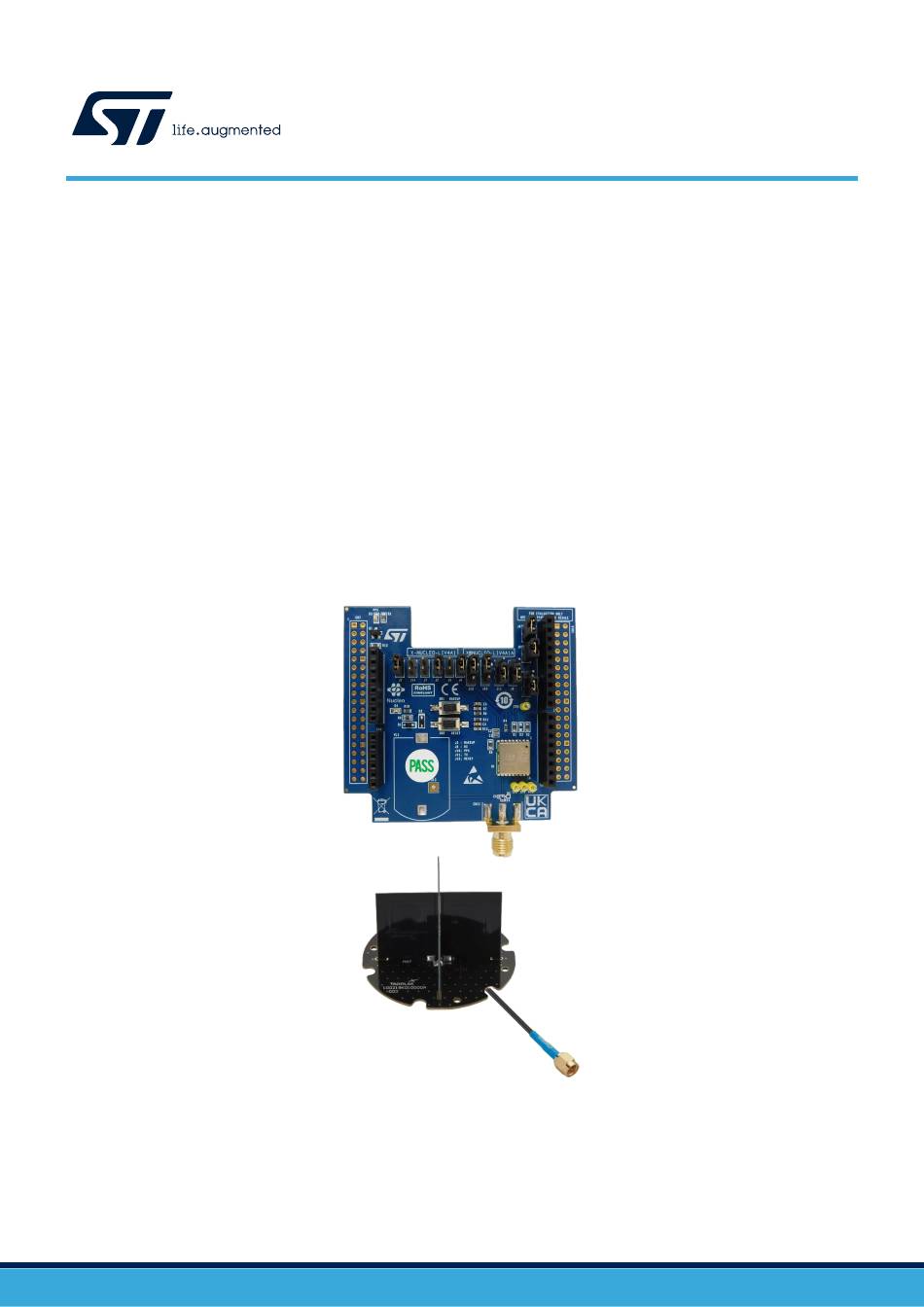

Figure 1.
X-NUCLEO-LIV4A1 expansion board
tiny dual-band GNSS Low power and measurement
UM3296
User manual
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-NUCLEO-LIV4A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ST X-NUCLEO-LIV4A1

  • Page 1 X-NUCLEO-LIV4A1 expansion board is compatible with the Arduino® UNO R3 connector and the ST morpho connector, so it can be plugged to the STM32 Nucleo development board and stacked with additional STM32 Nucleo expansion boards Figure 1.
  • Page 2: Getting Started

    UM3296 Getting started Getting started Board overview X-NUCLEO-LIV4A1 expansion board for STM32 Nucleo is a GNSS multiconstellation and multibands receiver with that covers a wide range of applications where geo-location is required. The key features are: • Operating supply voltage: 3.3 - 5 V •...
  • Page 3: Hardware And Software Requirements

    STM32 Nucleo development board through the Arduino UNO R3 connectors, as shown in the figure below. Figure 2. X-NUCLEO-LIV4A1 expansion board connected to an STM32 Nucleo development board X-NUCLEO-LIV4A1 can be connected to any STM32 Nucleo development board, even though complete...
  • Page 4: Board Setup

    Getting started Board setup To set up the X-NUCLEO-LIV4A1 expansion board, follow the procedure below. Step 1. Check the jumper position shown below: Table 1. X-NUCLEO-LIV4A1 expansion board - jumper 1 default settings Signal Jumper Configuration I²C-SCL Closed I²C-SDA Closed...
  • Page 5: Hardware Description

    STM32 Nucleo development board communicate through the expansion board connectors (CN5, CN6, CN8, and CN9) as listed in the tables below. Table 2. Interconnection between STM32 Nucleo development board and X-NUCLEO-LIV4A1 expansion board (left-side connectors) X-NUCLEO-LIV4A1 STM32 Nucleo pins CN6 (power)
  • Page 6: Teseo-Liv4F Module

    UM3296 Hardware description X-NUCLEO-LIV4A1 STM32 Nucleo pins CN5 (digital) CN9 (digital) Signal Signal RESET SYS_PPS WAKEUP TX0/SYS_PPS Teseo-LIV4F module X-NUCLEO-LIV4A1 expansion board embeds the Teseo-LIV4F multi constellation and multi band module. Teseo-LIV4F is an easy-to-use, global navigation satellite system (GNSS) module, embedding TESEO IV single die GNSS receiver IC working simultaneously on multiple constellations GPS/Galileo/ Glonass/BeiDou/ QZSS).
  • Page 7: Gnss Antenna

    Table 5. X-NUCLEO-LIV4A1 expansion board: Teseo-LIV4F interface with the STM32 Nucleo development board Signal Pins STM32 Nucleo (optional connections) I²C-SCL...
  • Page 8: X-Nucleo-Liv4A1 Expansion Board Component Placement

    UM3296 Hardware description X-NUCLEO-LIV4A1 expansion board component placement Figure 4. X-NUCLEO-LIV4A1 expansion board component placement details UM3296 - Rev 1 page 8/20...
  • Page 9: Schematic Diagrams

    Schematic diagrams Figure 5. X-NUCLEO-LIV4A1 circuit schematic (1 of 3) SMD0603 UART_RX C1 100nF SMD0402 UART_TX SMD0402 C2 100pF GN SS M o d u l e J R1 SMD0603 S HUNT 2.54 mm. nRES ET GND_RF_1 nRESET SMD0603 Clos e d...
  • Page 10: Figure 6. X-Nucleo-Liv4A1 Circuit Schematic (2 Of 3)

    Figure 6. X-NUCLEO-LIV4A1 circuit schematic (2 of 3) N U CL EO CON N ECT ORS CN10 P C10 P C11 P C9 P C8 P C12 P D2 D15/S CL P B8 P C6 IOREF +3V3 D14/S DA P B9...
  • Page 11: Figure 7. X-Nucleo-Liv4A1 Circuit Schematic (3 Of 3)

    Figure 7. X-NUCLEO-LIV4A1 circuit schematic (3 of 3) SMD0603 UART_RX C1 100nF SMD0402 UART_TX C2 100pF SMD0402 GN SS M o d u l e J R1 SMD0603 S HUNT 2.54 mm. nRES ET GND_RF_1 nRESET SMD0603 Clos e d...
  • Page 12: Bill Of Materials

    UM3296 Bill of materials Bill of materials Table 6. X-NUCLEO-LIV4A1 bill of materials Item Q.ty Ref. Value Description Manufacturer Order code SMA JACK - CN11 Molex 73251-1150 EDGE MOUT ELEVATED ARDUINO_10x1 4UCONN 15286 SOCKET ELEVATED CN6,CN9 ARDUINO_8x1 4UCONN 15284 SOCKET...
  • Page 13 UM3296 Bill of materials Item Q.ty Ref. Value Description Manufacturer Order code SMD Chip R7 R13 Yageo AF0603FR-071KL Resistor SMD Chip Stackpole RMCF0402ZT0R00 Resistor Electronics Inc 6.0*3.5mm Tact TE Connectivity SW1 SW2 SPST SW 1437566-3 Switch ALCOSWITCH TP1 TP2 Keystone TESTPOINT 5117 (or 5000 or 5001) TP3 TP4...
  • Page 14: Board Versions

    UM3296 Board versions Board versions Table 7. X-NUCLEO-LIV4A1 versions Finished good Schematic diagrams Bill of materials X$NUCLEO-LIV4A1A X$NUCLEO-LIV4A1A schematic diagrams X$NUCLEO-LIV4A1A bill of materials 1. This code identifies the X-NUCLEO-LIV4A1 evaluation board first version. UM3296 - Rev 1 page 14/20...
  • Page 15: Regulatory Compliance Information

    UM3296 Regulatory compliance information Regulatory compliance information Formal Notices Required by the U.S. Federal Communications Commission (FCC) This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product.
  • Page 16: Revision History

    UM3296 Revision history Table 8. Document revision history Date Revision Changes 12-Feb-2024 Initial release. UM3296 - Rev 1 page 16/20...
  • Page 17: Table Of Contents

    Hardware description ............. .5 X-NUCLEO-LIV4A1 expansion board for STM32 Nucleo ......5 Teseo-LIV4F module.
  • Page 18: List Of Tables

    X-NUCLEO-LIV4A1 expansion board - jumper 1 default settings ....... . .
  • Page 19: List Of Figures

    Figure 4. X-NUCLEO-LIV4A1 expansion board component placement details ....... 8 Figure 5.
  • Page 20 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
