Getting started with the X-NUCLEO-53L7A1 expansion board for STM32 Nucleo
Introduction
The
X-NUCLEO-53L7A1
is an expansion board for any
connectors. It provides a complete evaluation kit that allows you to learn, evaluate, and develop applications using the
VL53L7CX
Time-of-Flight 8x8 multizone ranging sensor with 90° FoV.
The expansion board is delivered with a cover glass holder in which you can fit three different spacers of 0.25, 0.5, and 1 mm
height below the cover glass to simulate various air gaps. A small oval cover glass fitting the sensor is included.
Several ST expansion boards can be stacked through the Arduino connectors, which allow, for example, the development of
VL53L7CX
applications with Bluetooth or Wi-Fi interfaces.

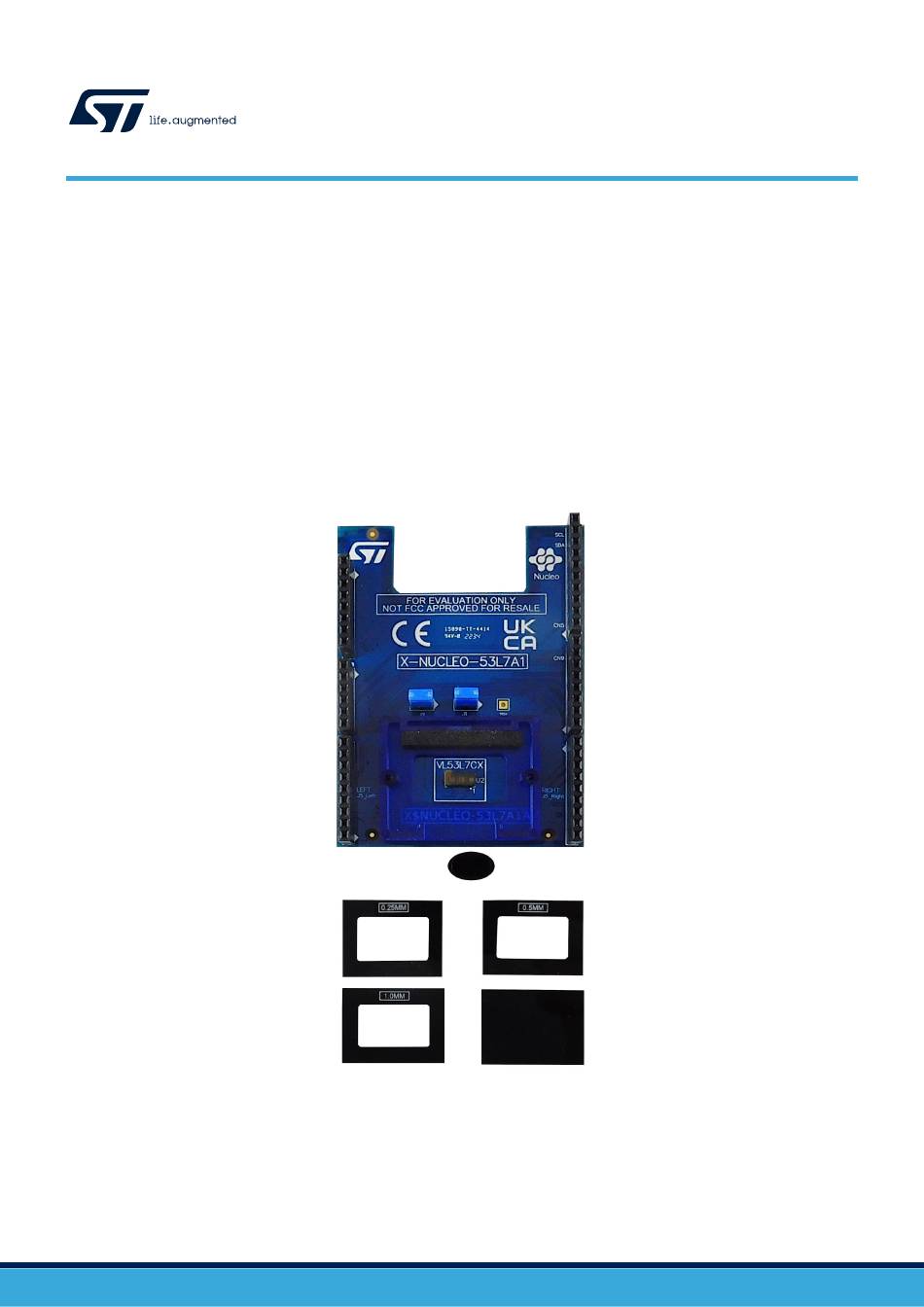

Figure 1.
X-NUCLEO-53L7A1 expansion board, spacers, cover glass holder, and oval cover glass
UM3067 - Rev 1 - October 2022
For further information contact your local STMicroelectronics sales office.
STM32 Nucleo
development board equipped with the Arduino R3
UM3067
User manual
based on the VL53L7CX
www.st.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST X-NUCLEO-53L7A1
Summary of Contents for ST X-NUCLEO-53L7A1
-
Page 1: Figure 1. X-Nucleo-53L7A1 Expansion Board, Spacers, Cover Glass Holder, And Oval Cover Glass
The expansion board is delivered with a cover glass holder in which you can fit three different spacers of 0.25, 0.5, and 1 mm height below the cover glass to simulate various air gaps. A small oval cover glass fitting the sensor is included. Several ST expansion boards can be stacked through the Arduino connectors, which allow, for example, the development of VL53L7CX applications with Bluetooth or Wi-Fi interfaces. -
Page 2: Getting Started
Getting started Getting started Safety considerations 1.1.1 Electrostatic precautions Warning: Take electrostatic precautions, including ground straps, when using the X-NUCLEO-53L7A1 expansion board. Failure to prevent electrostatic discharge could damage the device. Figure 2. Electrostatic logo 1.1.2 Laser safety considerations VL53L7CX contains a laser emitter and the corresponding drive circuitry. -
Page 3: Vl53L7Cx Time-Of-Flight Sensor Characteristics
Maximum laser power emitted: 130 mW • Integration time: 2 ms minimum Spacers and covers X-NUCLEO-53L7A1 expansion board is delivered with: • three spacers of 0.25 mm, 0.5 mm, and 1 mm height, used to simulate different air gaps between the VL53L7CX and the rectangular-shaped cover glass;... -
Page 4: Simplified Schematic
UM3067 Simplified schematic Simplified schematic Figure 4. X-NUCLEO-53L7A1 expansion board - simplified schematic UM3067 - Rev 1 page 4/22... -
Page 5: Using The Expansion Board
UM3067 Using the expansion board Using the expansion board X-NUCLEO-53L7A1 expansion board allows the user to test the VL53L7CX sensor functionality, to program it and to understand how to develop an application using this sensor. X-NUCLEO-53L7A1 integrates: • VL53L7CX sensor;... -
Page 6: Breakout Boards
X-NUCLEO-53L7A1 through the two 9-pin headers (see Figure 6. SATEL-VL53L7CX breakout boards connected to the X-NUCLEO-53L7A1 expansion board). As an alternative, they can be connected to the X-NUCLEO-53L7A1 by using the mini PCB through flying wires... -
Page 7: Figure 6. Satel-Vl53L7Cx Breakout Boards Connected To The X-Nucleo-53L7A1 Expansion Board
UM3067 Breakout boards Figure 6. SATEL-VL53L7CX breakout boards connected to the X-NUCLEO-53L7A1 expansion board UM3067 - Rev 1 page 7/22... -
Page 8: Figure 7. Vl53L7Cx Mini Pcb Flying Wire Connection To The X-Nucleo-53L7A1 Expansion Board
UM3067 Breakout boards Figure 7. VL53L7CX mini PCB flying wire connection to the X-NUCLEO-53L7A1 expansion board UM3067 - Rev 1 page 8/22... -
Page 9: Graphical User Interface (Gui) And Programming Example For The X-Nucleo-53L7A1
UM3067 Graphical user interface (GUI) and programming example for the X-NUCLEO-53L7A1 Graphical user interface (GUI) and programming example for the X-NUCLEO-53L7A1 To evaluate the VL53L7CX device performance, use the related GUI. X-NUCLEO-53L7A1 expansion board requires the NUCLEO-F401RE development board to use the GUI. -
Page 10: Schematic Diagrams
UM3067 Schematic diagrams Schematic diagrams Figure 8. X-NUCLEO-53L7A1 circuit schematic (1 of 5) 2.2k 2.2k Host.SchDoc Sensor.SchDoc I2C_RST PWR_EN Right Satellite Connector.SchDoc I2C_RST PA10 PWR_EN Left Satellite Connector.SchDoc I2C_RST PB10 PWR_EN UM3067 - Rev 1 page 10/22... -
Page 11: Figure 9. X-Nucleo-53L7A1 Circuit Schematic (2 Of 5)
UM3067 Schematic diagrams Figure 9. X-NUCLEO-53L7A1 circuit schematic (2 of 5) AVDD and IOVDD power supply for main sensor Max Current = 60 mA + 90 mA = 150 mA 3V3_NUCLEO 5V_NUCLEO Power = 1.7 V x 150 mA = 255 mW... -
Page 12: Figure 10. X-Nucleo-53L7A1 Circuit Schematic (3 Of 5)
UM3067 Schematic diagrams Figure 10. X-NUCLEO-53L7A1 circuit schematic (3 of 5) Nucleo Arduino Connectors 5V_NUCLEO 3V3_NUCLEO 8x1, 2.54mm, T/H SSQ-108-03-F-S 10x1, 2.54mm, T/H SSQ-110-03-F-S PB10 PA10 6x1, 2.54mm, T/H SSQ-106-03-F-S 8x1, 2.54mm, T/H SSQ-108-03-F-S UM3067 - Rev 1 page 12/22... -
Page 13: Figure 11. X-Nucleo-53L7A1 Circuit Schematic (4 Of 5)
UM3067 Schematic diagrams Figure 11. X-NUCLEO-53L7A1 circuit schematic (4 of 5) 3V3_NUCLEO 5V_NUCLEO J5_Left I2C_RST PWR_EN 9x1, 2.54mm, T/H Figure 12. X-NUCLEO-53L7A1 circuit schematic (5 of 5) 3V3_NUCLEO 5V_NUCLEO J5_Right I2C_RST PWR_EN 9x1, 2.54mm, T/H UM3067 - Rev 1 page 13/22... -
Page 14: Bill Of Materials
UM3067 Bill of materials Bill of materials Table 2. X-NUCLEO-53L7A1 bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code RES, 47k, 1%, R3 Not Fitted 47k, 0201, 1/20 W Panasonic ERJ1GNF4702C 1/20W, 0201 CAP, CER, 100nF, C4 Fitted... -
Page 15: Board Versions
Table 3. X-NUCLEO-53L7A1 versions PCB version Schematic diagrams Bill of materials X$NUCLEO-53L7A1- X$NUCLEO-53L7A1- schematic diagrams X$NUCLEO-53L7A1-bill of materials 1. This code identifies the X-NUCLEO-53L7A1 expansion board first version. It is printed on the board PCB. UM3067 - Rev 1 page 15/22... -
Page 16: Regulatory Compliance Information
UM3067 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) For evaluation only; not FCC approved for resale. FCC NOTICE - This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product. -
Page 17: Appendix A References
UM3067 References Appendix A References • VL53L7CX data sheet • X-NUCLEO-53L7A1 data brief: DB4808 • X-CUBE-TOF1 data brief: DB4449 UM3067 - Rev 1 page 17/22... -
Page 18: Revision History
UM3067 Revision history Table 4. Document revision history Date Revision Changes 13-Oct-2022 Initial release. UM3067 - Rev 1 page 18/22... -
Page 19: Table Of Contents
Breakout boards..............6 Graphical user interface (GUI) and programming example for the X-NUCLEO-53L7A1 . -
Page 20: List Of Tables
X-NUCLEO-53L7A1 bill of materials ........ -
Page 21: List Of Figures
X-NUCLEO-53L7A1 expansion board - simplified schematic........ - Page 22 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
