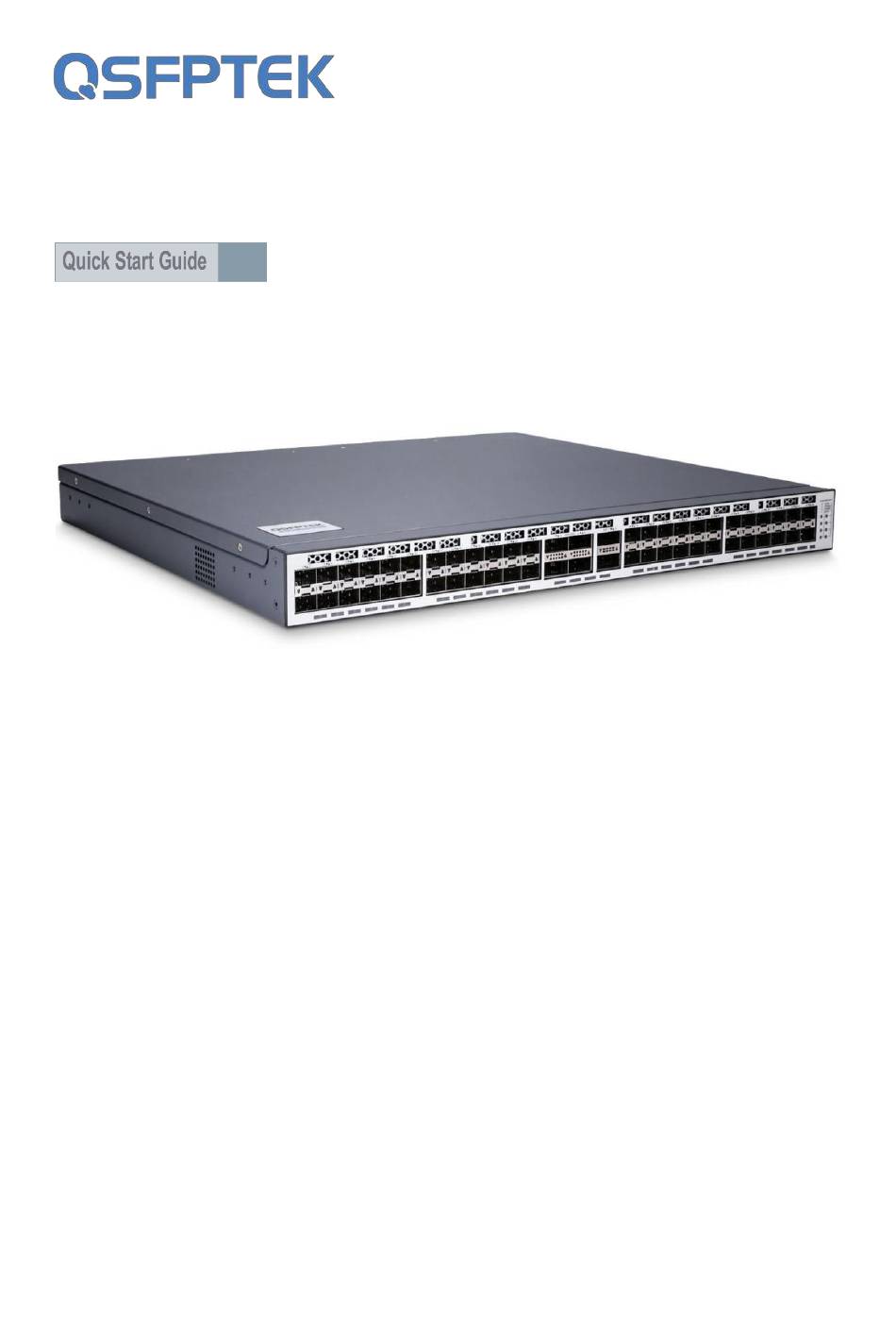

- Page 1 S7300-48X2Q4C Quick Start Guide V2.0 48-Port 10G Ethernet L3+ Switch 48x 10G SFP+, with 2x 40G QSFP+ and 4x 100G QSFP28 Uplinks, Support Stacking www.qsfptek.com V2.0 1 / 11...
- Page 2 Introduction QSFPTEK S7300-48X2Q4C is designed with 48x 10G SFP+ ports and 2x 40G QSFP+ with 4x 100Gb QSFP28 uplink ports, supporting stacking. S7300-48X2Q4C 48-port switch is an ideal choice for high-performance computing, enterprise networks and High-end camp centers, providing a more stable and reliable network architecture for enterprises.
-
Page 3: Hardware Overview
Hot-swappable QSFP28 ports for 40/100G connection Back Panel Name Description An RJ45 console port for serial management An RJ-45 Ethernet management port A USB management port for software and configuration backup and offline software upgrade Panel LEDs www.qsfptek.com V2.0 3 / 11... - Page 4 If the indicator is always on, the port is normally linked. If the indicator is not on, the port is not linked. Management port indicator If the indicator is off, the port is not linked. If the indicator flickers, there is data transmission. www.qsfptek.com V2.0 4 / 11...
-
Page 5: Installation Requirements
discharged. Avoid damaging devices by following the electrostatic discharge prevention procedure. S7300-48X2Q4C Hardware Installation Manual. Put the machine box in a place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed. -
Page 6: Mounting The Switch
Plug a compatible SFP+/QSFP+/QSFP28 transceiver into the SFP+/QSFP+/QSFP28 port. Connect a fiber optic cable to the fiber transceiver. Then connect the other end of the cable to another fiber device. Connecting the Management Ports www.qsfptek.com V2.0 6 / 11... - Page 7 Connecting the MNG Port Connect one end of a standard RJ45 Ethernet cable to a computer. Connect the other end of the cable to the MNG port on the front of the switch. www.qsfptek.com V2.0 7 / 11...
-
Page 8: Configuring The Switch
Insert the Universal Serial Bus (USB) flash disk to the USB port for software and configuration backup and offline software upgrade. Configuring the Switch Configuring the Switch Using the Web-based Interface Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. www.qsfptek.com V2.0 8 / 11... - Page 9 Step 2: Launch the terminal simulation software such as Hyper Terminal on the computer. Step 3: Configure the parameters of the terminal emulation software as follows: 9600 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control. www.qsfptek.com V2.0 9 / 11...
-
Page 10: Troubleshooting
2.3 “Requirements for Common Locations”. If the switch cannot be started and the PWR indicator is off, check the power. Faults Relative to Port, Cable and Connection Do the following checkups to help remove the fault: www.qsfptek.com V2.0 10 / 11... -
Page 11: Support And Other Resources
Product Warranty S7300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
