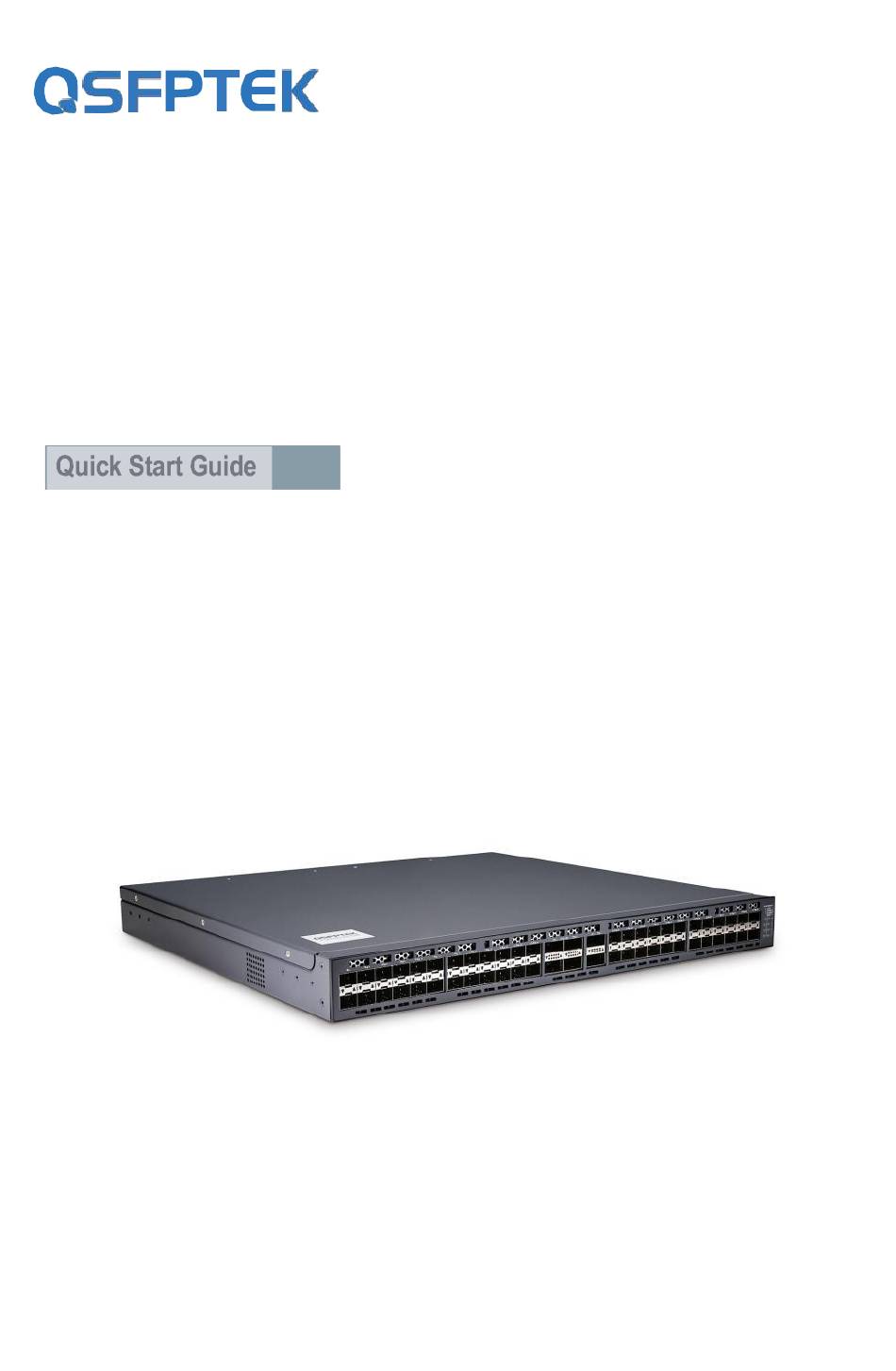

- Page 1 S7300-48X2Q4C Quick Start Guide 48-Port 10G Ethernet L3+ Switch 48x 10G SFP, with 2x 40G QSFP+ And 4x 100G QSFP28 Uplinks, Support Stacking V1.0 www.qsfptek.com V1.0 1／11...
- Page 2 Introduction The S7300-48X2Q4C is a high-performance full-10GE ToR switches. The product position is to meet the requirements of next-generation Enterprise, Data Center, Metro, and HCI (Hyper-Converged Infrastructure) networks. The S7300 series switches provide a range of services, such as IPv6, VPN, network security, flow analysis, and virtualization, to offer high-performance L2/L3/L4 wire-speed switching capacity.
-
Page 3: Hardware Overview
Hardware Overview Front Panel Ports S7300-48X2Q4C Ports Description 1, 4 SFP+ Hot-swappable SFP+ ports for 1/10G connection QSFP+ Hot-swappable QSFP+ ports for 40G connection QSFP28 Hot-swappable SFP+ ports for 40/100G connection Back Panel Ports Ports Description An RJ45 console port for serial management... -
Page 4: Appearance Description For Standard Configuration
Appearance Description for Standard Configuration S7300-48X2Q4C LEDs Name Description Power indicator If the power supply A of the switch is powered on, the PWRA indicator is on. Power indicator If the power supply B of the switch is powered on, the PWRB indicator is on. -
Page 5: Back Panel
2. The 40GE port breaks out into 4 10GE ports, which combines with QSFP+ port indicators. If the indicator of QSFP+ is on, the four indicators of 40GE BREAKOUT correspond to LINK/ACT state of the 4 10GE ports of the QSFP+ port Back Panel S7300-48X2Q4C www.qsfptek.com V1.0 5／11... -
Page 6: Installation Requirements
The location of the machine box, cabinet planning and indoor cabling are very important for normal system’s function. Short distance between devices, bad ventilation and untouchable control plate will cause maintenance problems, systematic faulty and breakdown. Temperature/Humidity Requirements： Temperature Humidity 0~45°C 10%～95% Mounting the switch www.qsfptek.com V1.0 6／11... -
Page 7: Connecting The Power
2. Connect the other end of the power cord to an AC power source. Connecting the SFP+/QSFP+/QSFP28 Ports 1. Plug a compatible SFP+/QSFP+/QSFP28 transceiver into the SFP+/QSFP+/QSFP28 port. 2. Connect a fiber optic cable to the fiber transceiver. Then connect the other end of the cable to another fiber device. www.qsfptek.com V1.0 7／11... -
Page 8: Connecting The Management Ports
2. Connect the other end of the CLI cable to the RS-232 serial port on the computer. Connecting the MNG Port 1. Connect one end of a standard RJ45 Ethernet cable to a computer. 2. Connect the other end of the cable to the MNG port on the front of the switch. www.qsfptek.com V1.0 8／11... -
Page 9: Configuring The Switch
Configuring the Switch Using the Web-based Interface Step1: Connect the computer to the Management port of the switch using the network cable. Step 2: Set the IP address of the computer to 192.168.0.2. Set thesubnet mask of the computer to 255.255.255.0. www.qsfptek.com V1.0 9／11... - Page 10 Step 2: Start the terminal simulation software such as HyperTerminal on the computer. Step 3: Set the parameters of the HyperTerminal: 9600 bits per second, 8 data bits, no parity, 1 stop bitand no flow control. Step 4: Enter the default username and password, admin/admin. www.qsfptek.com V1.0 10／11...
-
Page 11: Configuration System Troubleshooting
2. Confirm that the console cable is the appropriate type for the device being connected. 3. Ensure that the control cable driver is appropriately installed on the computer. 4. Verify that the settings of the HyperTerminal, such as baud rate, data bits, stop bits, and parity, are correctly configured. www.qsfptek.com V1.0 11／11... -
Page 12: Support And Other Resources
Customer Success Product Warranty S7300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or exchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
