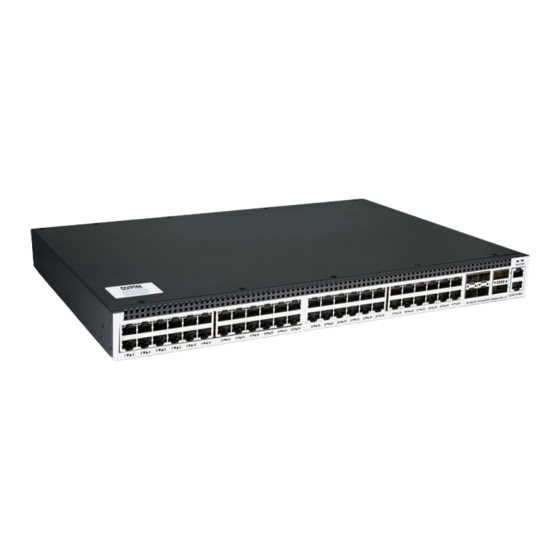

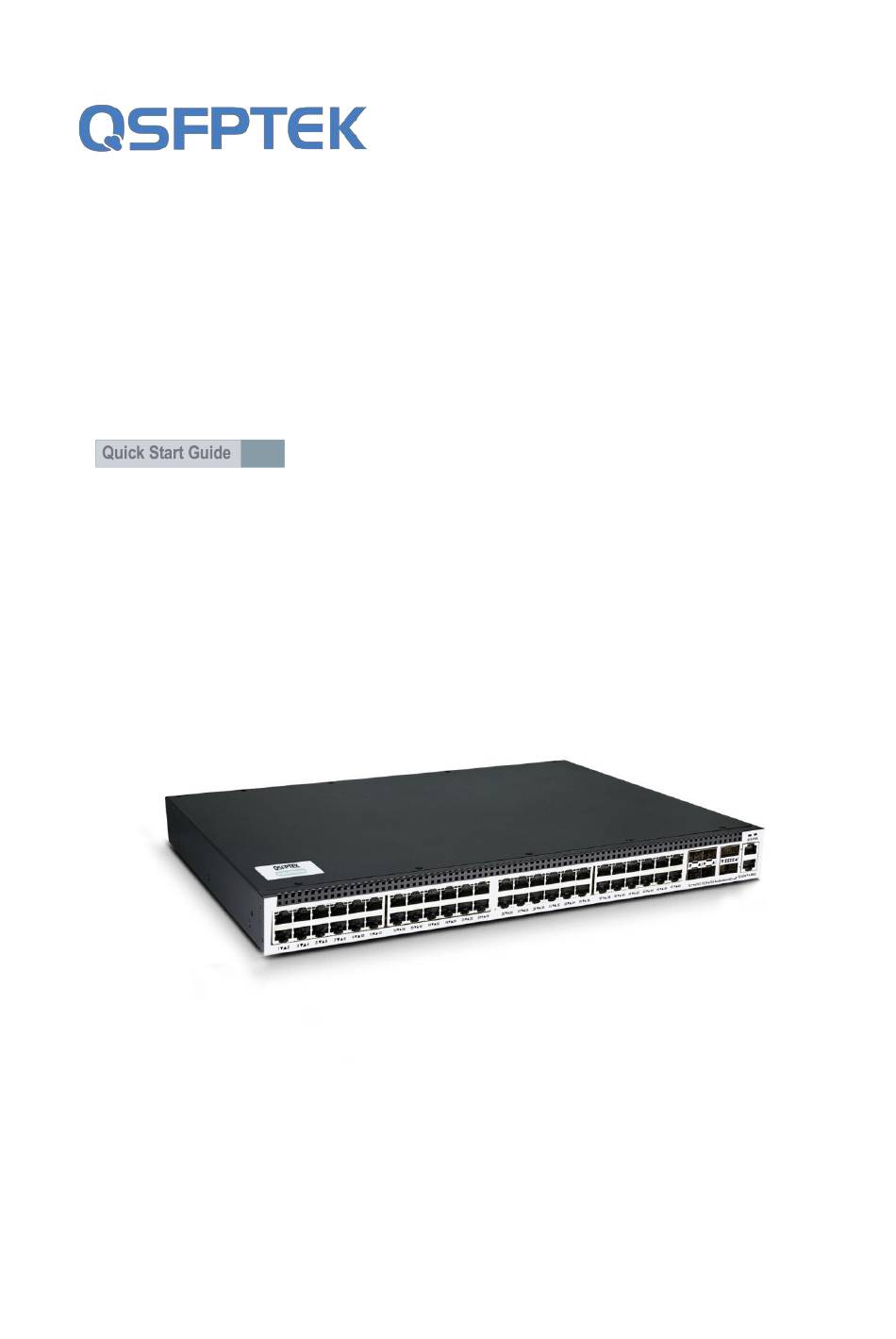

- Page 1 S7300-48TE4X2Q Quick Start Guide 48-Port Multi-Gigabit Ethernet L3 Switch 48x 100M/1000M/2.5GBASE-T, with 4x 1G/10G SFP+ and 2x 40G QSFP+ Uplink, Support V1.0 www.qsfptek.com v1.0 1 / 11...
- Page 2 It can be used as an ideal and cost-effective access or aggregation layer switch for campus networks. We appreciate your decision to select S7300-48TE4X2Q. This manual is intended to help you become acquainted with the switch desi gn and provide instructions for implementing the switches into your network.
-
Page 3: Hardware Overview
10/40G port link. QSFP+ Green (Breakout) Blinking 10/40G packets receiving or transmitting. SYS LED If the SYS indicator flickers, the system works normally. PWR LED If the PWR indicator is always on, the device is powered on. www.qsfptek.com v1.0 3 / 11... -
Page 4: Installation Requirements
Avoid to damage devices by following the electrostatic discharge prevention procedure. S5300-48M6X Hardware Installation Manual Put the machine box at the place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed. www.qsfptek.com v1.0 4 / 11... - Page 5 Connecting the Power 1. Plug the AC power cord to the switch power port on the back rear. 2. Connect the other end of the power cord to a AC power source equipment. Connecting the RJ45 Port www.qsfptek.com v1.0 5 / 11...
- Page 6 1. Insert the SFP+ module into the SFP+ port. 2. Plug a fiber patch cable to the SFP+ transceiver. 3. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com v1.0 6 / 11...
-
Page 7: Connecting The Management Ports
2. Insert the RJ45 connector of the console cable into the console port on the switch. 3. Connect the D89 female connector on the other end of the console cable to the serial port on the computer host. www.qsfptek.com v1.0... -
Page 8: Configuring The Switch
Step 2: Set the IP address of the computer to 192.168.0.x (where "x" is any number from 2 to 254) and the subnet mask to 255.255.255.0. Step 3: Open a web browser and type http://192.168.0.2 in the address bar. Enter the default username and password (admin/admin). Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com v1.0 8 / 11... - Page 9 Step 3: Configure the parameters of the terminal emulation software as follows: 9600 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control. Step 4: Enter the default username and password (admin/admin). www.qsfptek.com v1.0 9 / 11...
-
Page 10: Troubleshooting
If the CLI port does not work after the system is started up, check whether the CLI port is set to a baud rate of 9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. www.qsfptek.com v1.0... -
Page 11: Support And Other Resources
Product Warranty S7300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or e -xchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
