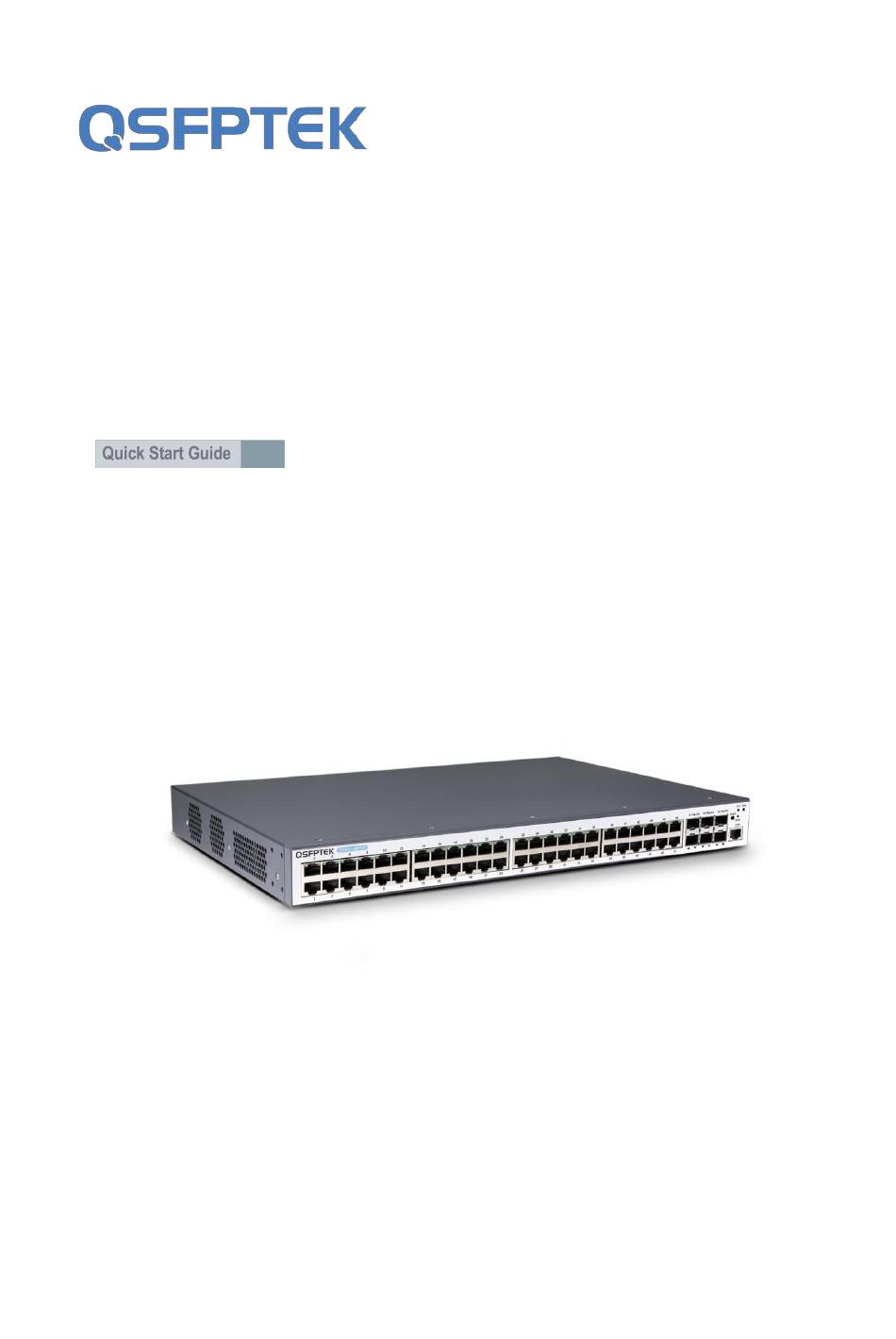

- Page 1 S5300-48P6X Quick Start Guide 48-Port Gigabit Ethernet L2++ PoE+ Switch 48x PoE+ Ports, with 6x 10GE SFP+, Support Stacking V1.0 www.qsfptek.com v1.0 1 / 10...
-
Page 2: Hardware Overview
Introduction The QSFPTEK S5300-48P6X is a next-gen aggregation switch, with 48x GE RJ45, 6x 10GE SFP+ Uplink. It supports stacking of up to 8 S5300 series switches, making them logically regarded as one switch for interconnection and management. We appreciate your decision to select S5300-48P6X. This manual is intended to help you become acquainted with the switch design and provide instructions for implementing the switches into your network. - Page 3 PWR LED If the switch is powered on, the PWR indicator is on. SYS LED If the system is started normally, the SYS indicator flickers. POE LED Indicates whether the POE card is detected. Back Panel www.qsfptek.com v1.0 3 / 10...
- Page 4 Site Environment Make sure that the workshop is well-ventilated, the heat of electrical devices is well-discharged Avoid to damage devices by following the electrostatic discharge prevention procedure. S5300-48P6X Hardware Installation Manual Put the machine box at the place where cool air can blow off the heat inside the machine box. Make sure the machine box is ...
- Page 5 2. Connect the other end of the power cord to a AC power source equipment. Connecting the RJ45 Port 1. Connect one end of the Ethernet cable to the RJ45 port on networking equipment, such as PC, printer, server, storage, etc. www.qsfptek.com v1.0 5 / 10...
- Page 6 1. Insert the SFP+ module into the SFP+ port. 2. Plug a fiber patch cable to the SFP+ transceiver. 3. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com v1.0 6 / 10...
-
Page 7: Connecting The Management Ports
Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. Step 2: Set the IP address of the computer to 192.168.0.x (where "x" is any number from 2 to 254) and the subnet mask to 255.255.255.0. www.qsfptek.com v1.0 7 / 10... - Page 8 Step 2: Launch the terminal simulation software such as Hyper Terminal on the computer. Step 3: Configure the parameters of the terminal emulation software as follows: 9600 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control www.qsfptek.com v1.0 8 / 10...
-
Page 9: Troubleshooting
If the CLI port does not work after the system is started up, check whether the CLI port is set to a baud rate of 9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. www.qsfptek.com v1.0... -
Page 10: Support And Other Resources
Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or exchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
