- Page 1 S5300-24P4X Quick Start Guide V2.0 24-Port Gigabit Ethernet L2+ Switch 24x 1G RJ45 PoE+ Ports @370W, with 4x 10G SFP+ Uplinks, Up to 100M Transmit, Support Stacking www.qsfptek.com V2.0 1 / 9...

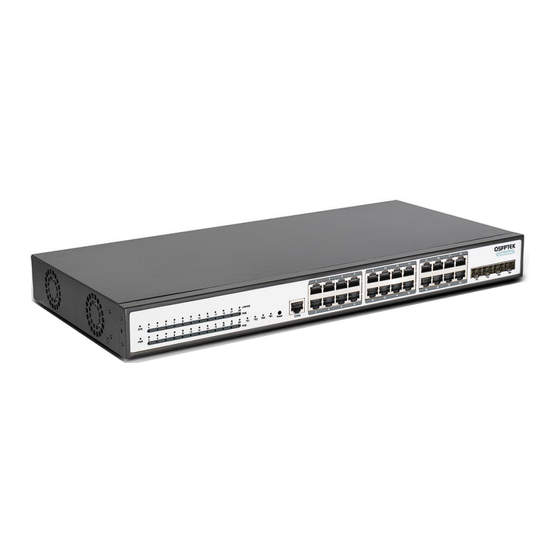

- Page 2 Introduction The S5300-24P4X is a gigabit access switch with 24x GE RJ45 PoE+ ports and 4x 10GE SFP+ uplinks and supports stacking of up to 2 switches. This 24-port PoE+ switch has built-in two intelligent fans, which can automatically adjust the fan speed to save on usage costs. The switch can be easily controlled and managed through both CLI and WEB interfaces, allowing for real- time monitoring and improved management efficiency.
-
Page 3: Hardware Overview
SYS LED system works normally. If the PWR indicator is always PWR LED on, the device is powered on. Back Panel Abbrev Name Description The grounding column must be fine. Grounding column The grounding column www.qsfptek.com V2.0 3 / 9... - Page 4 discharged Avoid damaging devices by following the electrostatic discharge prevention procedure. S5300-24P4X Hardware Installation Manual Put the machine box in a place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed.
- Page 5 Connecting the Power Plug the AC power cord to the switch power port on the back rear. Connect the other end of the power cord to an AC power source equipment. Connecting the RJ45 Ports www.qsfptek.com V2.0 5 / 9...
-
Page 6: Connecting The Management Ports
Insert the RJ45 connector of the console cable into the console port on the switch. Connect the DB9 female connector on the other end of the console cable to the serial port on the computer host. www.qsfptek.com V2.0 6 / 9... -
Page 7: Configuring The Switch
255.255.255.0. Step 3: Open a web browser and type http://192.168.0.2 in the address bar. Enter the default username and password (admin/admin). Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com V2.0 7 / 9... -
Page 8: Troubleshooting
1. Power and cooling systems—power and fan Port, cable and connection—ports on the front panel of the switch and the cables connecting these ports Faults Relative to Power and Cooling System Do the following checkups to help remove the fault: www.qsfptek.com V2.0 8 / 9... -
Page 9: Support And Other Resources
Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
