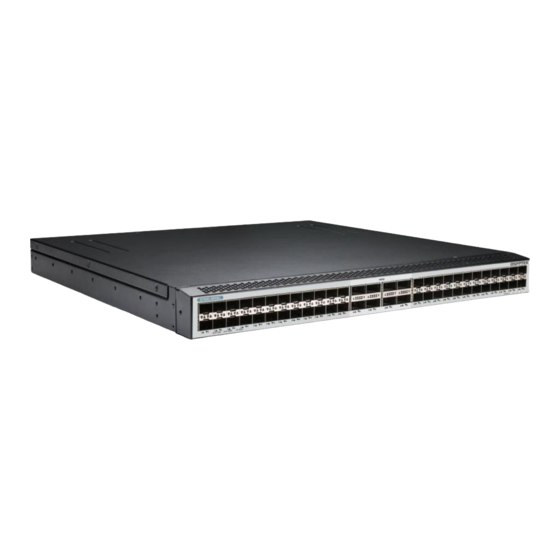

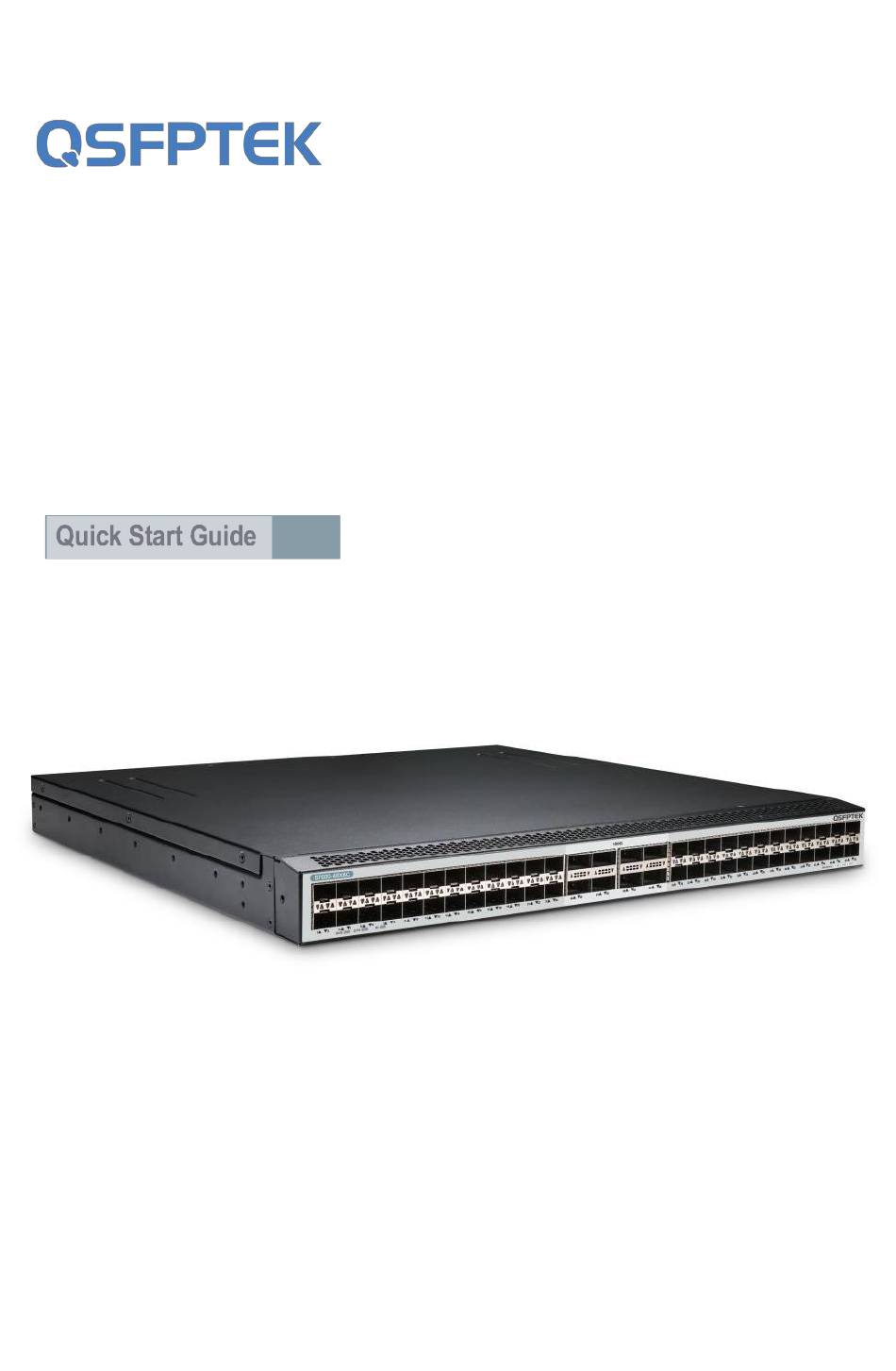

- Page 1 S7600-48X8C Quick Start Guide 48-Port 10Gb Ethernet L3+ Switch 48x 10G SFP+ Ports, with 8x 100G QSFP28 Uplinks, Support MLAG V1.0 www.qsfptek.com V1.0 1／12...
- Page 2 Metro and HCI (Hyper-Converged Infrastructure) networks. We appreciate your decision to select S7600-48X8C. This manual is intended to help you become acquainted with the switch design and provide instructions for implementing the switches into your network. Accessories www.qsfptek.com V1.0 2／12...
-
Page 3: Hardware Overview
SFP+ ports for 1G/10G connection QSFP28 QSFP28 ports for 40G/100G connection Back Panel Ports Ports Description An RJ45 console port for serial management An RJ-45 Ethernet management port A USB management port for software and configuration backupand offline software upgrade www.qsfptek.com V1.0 3／12... - Page 4 100G/40G packets receiving or transmitting. QSFP28 Amber 10G/1G port link. (Port 49-56) Blinking 10G/1G packets receiving or transmitting. Port not link Loop Blinking One or more 100G/40G ports are breakout Breakout None of the 100G/40G port is breakout www.qsfptek.com V1.0 4／12...
-
Page 5: Installation Requirements
Cleanliness Requirements： Substance Unit Concentration limit DUST Particle/m3 ≤ 3 X 104 (No visible dust on the tabletop for three days) mg/m3 mg/m3 0.006 mg/m3 0.05 mg/m3 0.01 Note: The dust particle size is ≥ 5 μm www.qsfptek.com V1.0 5／12... -
Page 6: Mounting The Switch
1. Insert the SFP+ module into the SFP+ port. 2. Plug a fiber patch cable to the SFP+ transceiver. 3. Connect the other end of the fiber to the device that you want to realize data communication. Connecting the QSFP28 Port www.qsfptek.com V1.0 6／12... -
Page 7: Connecting The Management Ports
2. Insert the RJ45 connector of the console cable into the console port on the switch. 3. Connect the D89 female connector on the other end of the console cable to the serial port on the computer host. www.qsfptek.com V1.0 7／12... - Page 8 3. Connect the RJ45 connector on the other end of the patch cable to the ETH port on the switch. Connecting the USB Port 1. Prepare an Universal Serial Bus (USB) flash disk. 2. Insert the USB to the switch USB port. www.qsfptek.com V1.0 8／12...
-
Page 9: Configuring The Switch
Step 2: Set the IP address of the computer to 192.168.1.x (where "x" is any number from 2 to 254) and the subnet mask to 255.255.255.0. Step 3: Open a web browser and type http://192.168.1.2 in the address bar. Enter the default username and password (admin/admin). Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com V1.0 9／12... - Page 10 Step 3: Configure the parameters of the terminal emulation software as follows: 115200 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control. Step 4: Enter the default username and password (admin/admin). www.qsfptek.com V1.0 10／12...
- Page 11 2. The cable of the configuration port (Console) is properly connected. If no problems have been found after the above checks, it is possible that the configuration cable is faulty or the parameter setting of the terminal (such as a super terminal) is incorrect, please check accordingly. www.qsfptek.com V1.0 11／12...
-
Page 12: Support And Other Resources
Product Warranty S7600 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or exchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
