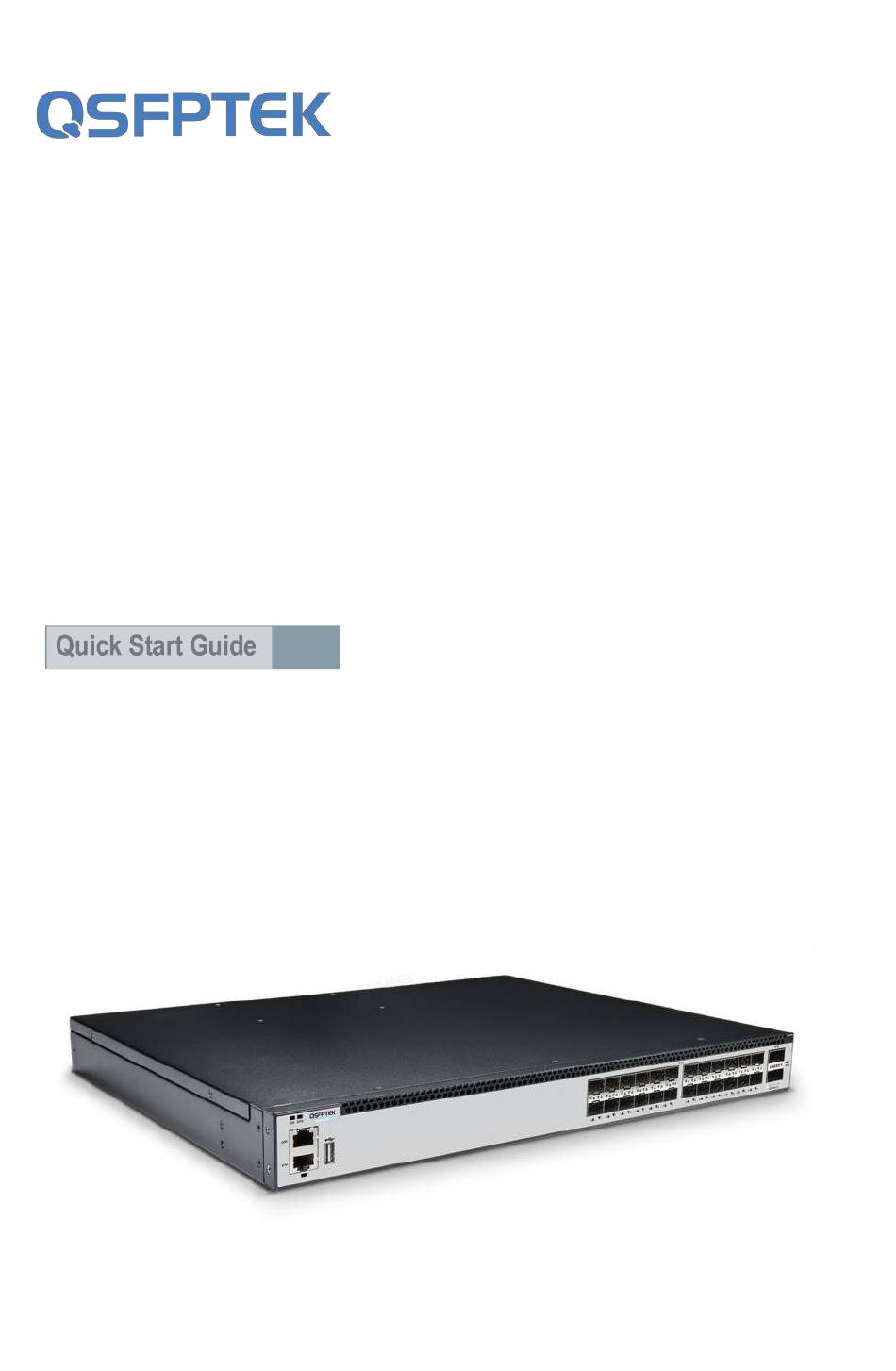

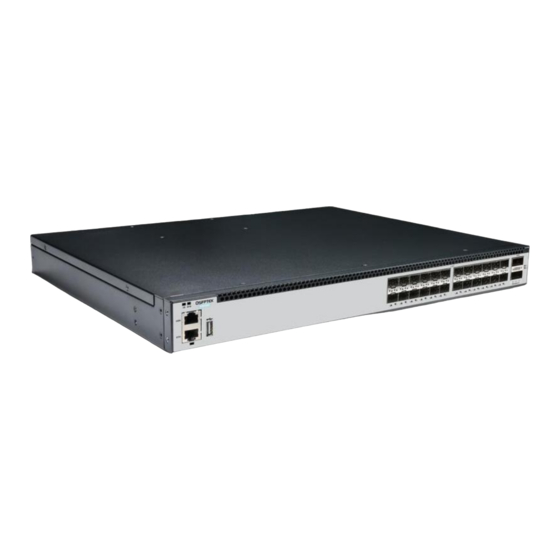

- Page 1 S7600-24X2C Quick Start Guide 24-Port 10Gb Ethernet L3+ Switch 24x 10G SFP+ Ports, with 2x 100G QSFP28 Uplinks, Support MLAG V1.0 www.qsfptek.com V1.0 1／13...
- Page 2 Metro and HCI (Hyper-Converged Infrastructure) networks. We appreciate your decision to select S7600-24X2C. This manual is intended to help you become acquainted with the switch design and provide instructions for implementing the switches into your network.
-
Page 3: Hardware Overview
Hot-swappable SFP+ ports for 1/10G connection QSFP28 QSFP28 ports for 40G/100G connection An RJ45 console port for serial management An RJ-45 Ethernet management port A USB management port for software and configuration backupand offline software upgrade Front Panel LEDs www.qsfptek.com V1.0 3／13... - Page 4 Blinking 1G packets receiving or transmitting. Port not link Green 100G/40G port link. Blinking 100G/40G packets receiving or transmitting. QSFP28 Amber 10G/1G port link. (Port 25-26) Blinking 10G/1G packets receiving or transmitting. Port not link Back Panel www.qsfptek.com V1.0 4／13...
-
Page 5: Installation Requirements
Cleanliness Requirements： Substance Unit Concentration limit DUST Particle/m3 ≤ 3 X 104 (No visible dust on the tabletop for three days) mg/m3 mg/m3 0.006 mg/m3 0.05 mg/m3 0.01 Note: The dust particle size is ≥ 5 μm www.qsfptek.com V1.0 5／13... -
Page 6: Mounting The Switch
1. Insert the SFP+ module into the SFP+ port. 2. Plug a fiber patch cable to the SFP+ transceiver. 3. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com V1.0 6／13... -
Page 7: Connecting The Management Ports
3. Connect the other end of the fiber to the device that you want to realize data communication. Connecting the Management Ports Connecting the Console Port 1. Prepare an console cable. 2. Insert the RJ45 connector of the console cable into the console port on the switch. www.qsfptek.com V1.0 7／13... - Page 8 2. Insert one end of the RJ45 Ethernet patch cable to the computer RJ45 port. 3. Connect the RJ45 connector on the other end of the patch cable to the ETH port on the switch Connecting the USB Port www.qsfptek.com V1.0 8／13...
-
Page 9: Configuring The Switch
Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. Step 2: Set the IP address of the computer to 192.168.1.x (where "x" is any number from 2 to 254) and the subnet mask to 255.255.255.0. www.qsfptek.com V1.0 9／13... - Page 10 Step 3: Configure the parameters of the terminal emulation software as follows: 115200 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control. Step 4: Enter the default username and password (admin/admin). www.qsfptek.com V1.0 10／13...
-
Page 11: Troubleshooting
PWR indicator shall always keep lighting; when the PWR indicator is off, please check if: 1. The power line of the switch is connected correctly. 2. The EPS of the switch matches the power required by the switch. www.qsfptek.com V1.0 11／13... -
Page 12: Support And Other Resources
Product Warranty S7600 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or exchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com... - Page 13 14-day Return Window 5 Year Warranty www.qsfptek.com V1.0 13／13...
