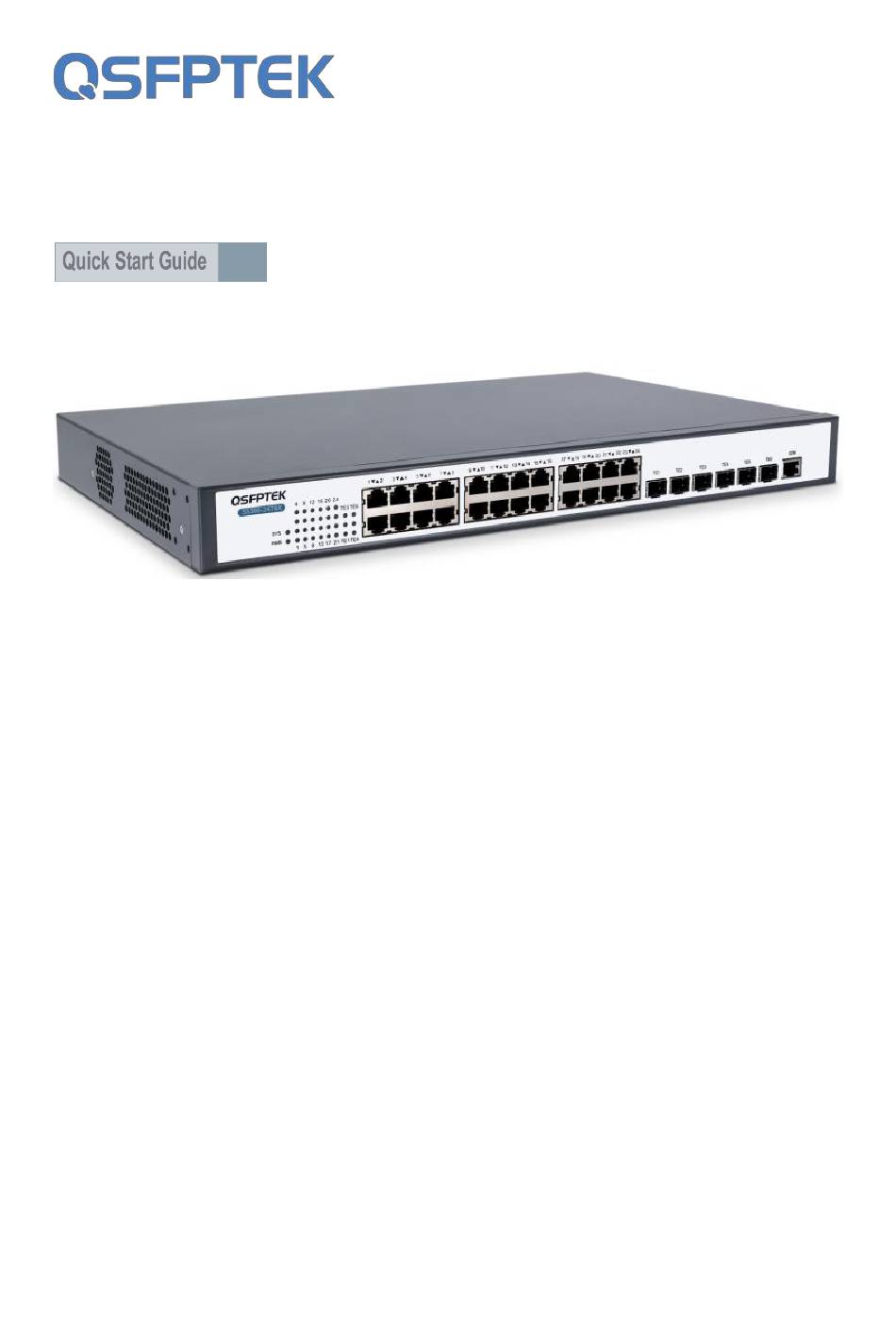

- Page 1 S5300-24T6X Quick Start Guide V2.0 24-Port Gigabit Ethernet L3 Switch 24x 1G RJ45 Ports, with 6x 10G SFP+ Uplinks, Support Stacking www.qsfptek.com V2.0 1 / 11...

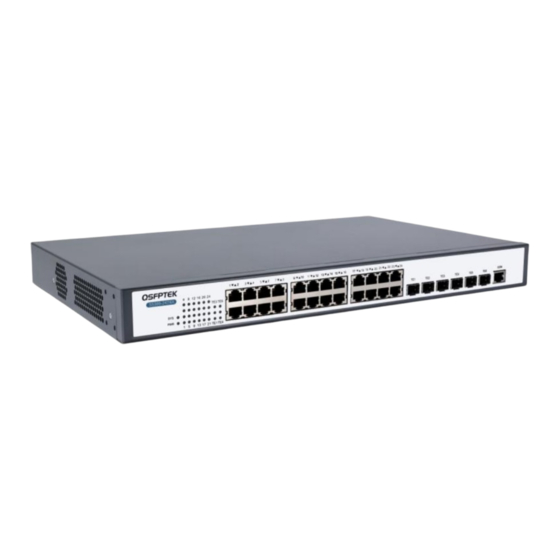

- Page 2 Introduction The S5300-24T6X is a gigabit access switch with 24x 10/100/1000BASE-T RJ45 and 6x 10G SFP+ uplink ports and supports stacking of up to 8 switches. These stackable switches can be easily controlled and managed through both CLI and WEB interfaces, allowing for real-time monitoring and improved management efficiency.
-
Page 3: Hardware Overview
Gigabit port link. (1-24) SFP+ Green 10G port link. (TE1-TE4) If the SYS indicator flickers, the SYS LED system works normally. If the PWR indicator is always PWR LED on, the device is powered on. www.qsfptek.com V2.0 3 / 11... -
Page 4: Back Panel
Put on relatively tight clothes, fasten the tie or scarf well and roll up the sleeve, avoiding stumbling the machine box. Put on protective glasses if the environment may cause damage to your eyes. Avoid incorrect operations that may cause damage to humans or devices. www.qsfptek.com V2.0 4 / 11... -
Page 5: Mounting The Switch
discharged Avoid damaging devices by following the electrostatic discharge prevention procedure. S5300-24T6X Hardware Installation Manual Put the machine box in a place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed. - Page 6 Connect one end of the Ethernet cable to the RJ45 port on networking equipment, such as PC, printer, server, storage, etc. Connect the other end of the Ethernet cable to the switch RJ45 port. www.qsfptek.com V2.0 6 / 11...
- Page 7 Insert the SFP+ module into the SFP+ port. Plug a fiber patch cable into the SFP+ transceiver. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com V2.0 7 / 11...
-
Page 8: Connecting The Management Ports
Connect the DB9 female connector on the other end of the console cable to the serial port on the computer host. Configuring the Switch Configuring the Switch Using the Web-based Interface Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. www.qsfptek.com V2.0 8 / 11... - Page 9 255.255.255.0. Step 3: Open a web browser and type http://192.168.0.2 in the address bar. Enter the default username and password (admin/admin). Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com V2.0 9 / 11...
-
Page 10: Troubleshooting
Faults Relative to Power and Cooling System Do the following checkups to help remove the fault: 1. When the power on-off is at the “ON” location, check whether the fan works normally. If the fan www.qsfptek.com V2.0 10 / 11... -
Page 11: Support And Other Resources
Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
