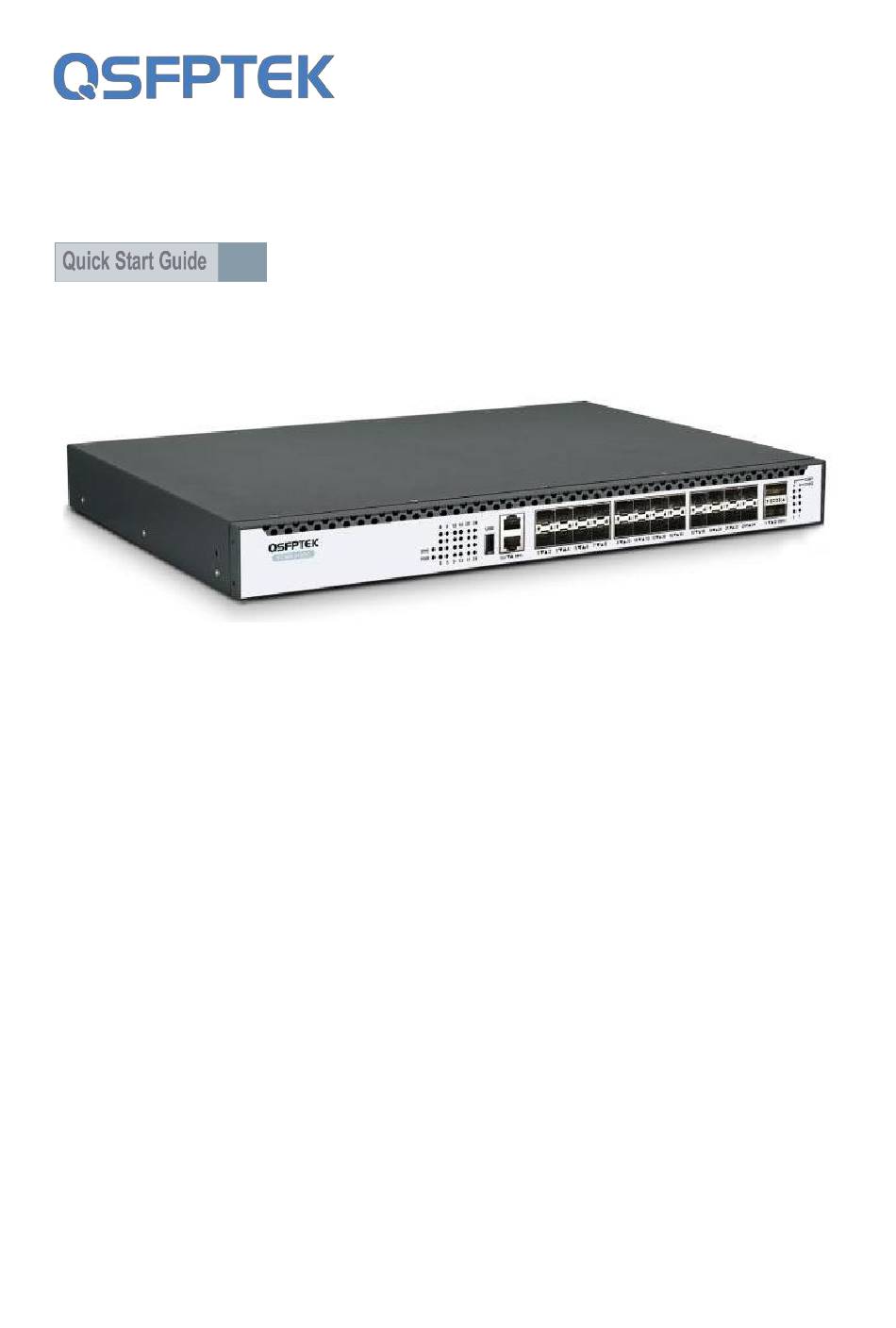

- Page 1 S7300-24X2C Quick Start Guide V2.0 24-Port 10G Ethernet L3+ Switch 24x 10G SFP+, with 2x 100G QSFP28 Uplinks, Support Stacking www.qsfptek.com V2.0 1 / 10...
- Page 2 Introduction QSFPTEK S7300-24X2C is designed with 24x 10G SFP+ ports and 2x 100G QSFP28 uplinks, supporting stacking. S7300-24X2C 10G switch is an ideal choice for high-performance computing, enterprise networks and high-end campus centers, providing a more stable and reliable network architecture for enterprises.
-
Page 3: Hardware Overview
2. The 40GE port breaks out into 4 10GE ports and breaks out into (CG0/1~0/ combines with QSFP+ port indicator. 4 10GE ports 3. The QSFP+ port indicator shows the status of the 4 40GE BREAKOUT indicators www.qsfptek.com V2.0 3 / 10... -
Page 4: Installation Requirements
Put on protective glasses if the environment may cause damage to your eyes. Avoid incorrect operations that may cause damage to humans or devices. Site Environment Make sure that the workshop is well-ventilated, the heat of electrical devices is well- discharged. www.qsfptek.com V2.0 4 / 10... - Page 5 Avoid damaging devices by following the electrostatic discharge prevention procedure. S7300-24X2C Hardware Installation Manual. Put the machine box in a place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed.
-
Page 6: Connecting The Management Ports
Prepare a console cable. Insert the RJ45 connector of the console cable into the console port on the switch. Connect the other end of the console cable to the RS-232 serial port on the computer. www.qsfptek.com V2.0 6 / 10... - Page 7 Connect the other end of the cable to the ETH port on the front of the switch. Connecting the USB Port Insert the Universal Serial Bus (USB) flash disk to the USB port for software and configuration backup and offline software upgrade. www.qsfptek.com V2.0 7 / 10...
-
Page 8: Configuring The Switch
(admin/admin). Step 4: Click sign-in to access the web-based configuration page. Configuring the Switch Using the Console Port Step 1: Use the console cable to directly connect the switch console port to your computer. www.qsfptek.com V2.0 8 / 10... -
Page 9: Troubleshooting
2. If the switch is too hot, check whether the air outlet and air inlet are clean and then do relative operations in section 2.3 “Requirements for Common Locations”. If the switch cannot be started and the PWR indicator is off, check the power. www.qsfptek.com V2.0 9 / 10... -
Page 10: Support And Other Resources
Product Warranty S7300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
