TN-4900 Series
Quick Installation Guide
Moxa ToughNet Router
Version 1.2, January 2024
Technical Support Contact Information
www.moxa.com/support
 2023 Moxa Inc. All rights reserved.
P/N: 1802049080020
*1802049080020*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TN-4900 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Moxa Technologies TN-4900 Series

  • Page 1 TN-4900 Series Quick Installation Guide Moxa ToughNet Router Version 1.2, January 2024 Technical Support Contact Information www.moxa.com/support  2023 Moxa Inc. All rights reserved. P/N: 1802049080020 *1802049080020*...
  • Page 2: Package Checklist

    Overview The ToughNet TN-4900 Series is designed for rolling stock Ethernet networks. These routers feature M12 interfaces to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN- 4900 Series routers are equipped with 8 Gigabit ports and up to 4 bypass relay ports.
  • Page 3 Function Ports and Indicators The TN-4900 Series features physical indicators for the Gigabit Ethernet, PoE, and bypass functions ports. The indicators are located on the front panel of the device, as shown in the graph below.
  • Page 4 Refer to the following tables for an overview the port numbering and port types for each model. Bypass TN-4908 Models Port No. PoE Ports Ports TN-4908-WV-CT-T TN-4908-ETBN-4TXBP-WV-CT-T 1, 5 (set 1) TN-4908-ETBN-F-4TXBP-WV-CT-T 2, 6 (set 2) TN-4908-4GTX-WV-CT-T 1~4, G1~G4 TN-4908-ETBN-4GTXBP-WV-CT-T 1~4, G1~G4 G1, G3 (set 1) TN-4908-ETBN-F-4GTXBP-WV-CT-T...
  • Page 5: Panel Layouts

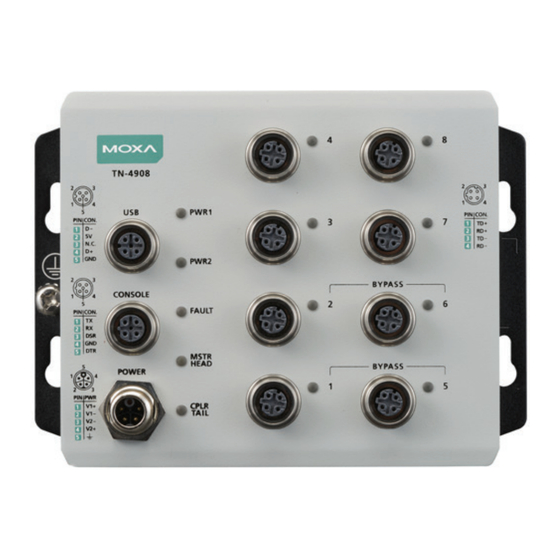

    Panel Layouts TN-4908 Models 1. Screw holes for panel mounting kit 2. Serial console port (M12 B-coded 5-pin female connector) 3. USB storage port (M12 A- coded 5-pin female connector) 4. FAULT LED 5. PWR1 LED: for power input 1 6.
  • Page 6 TN-4916 Models 1. Screw holes for panel mounting kit 2. Serial console port (M12 B-coded 5-pin female connector) 3. USB storage port (M12 A- coded 5-pin female connector) 4. FAULT LED 5. PWR1 LED: for power input 1 6. PWR2 LED: for power input 2 7.
  • Page 7: Mounting Dimensions (Unit = Mm)

    Mounting Dimensions (unit = mm) TN-4908 Non-PoE Models - 7 -...
  • Page 8 TN-4908 PoE Models - 8 -...
  • Page 9 TN-4916 Models - 9 -...
  • Page 10: Wall Mounting

    Wall Mounting STEP 1: Mounting the TN-4900 to a wall requires 4 screws. Use the ToughNet router as a guide to mark the correct positions of the 4 screws. STEP 2: Use the 4 screws in the wall mounting kit. If you would like to use your own screws, make sure the screw head is between 6.0 mm and 7.0 mm in diameter and...
  • Page 11 ATTENTION Safety First! Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. Please read and follow these guidelines: •...
  • Page 12: Connecting The Power Supplies

    The ToughNet TN-4900 Series routers support dual power inputs— power input 1 and power input 2. The M12 K-coded 5-pin male connector on the TN-4900 Series routers' front panel is used for the dual power inputs. Pinouts for the power input port V1–...
  • Page 13: Connecting The Serial Port

    M12 coding. Connecting the Serial Port The TN-4900 Series has a M12 B-coded 5-pin female connector. Users can use an adapter to connect a management PC and control the device using commands through the CLI (Command-Line Interface).
  • Page 14 The TN-4900 Series has 8 10/100/1000BaseT(X) Ethernet ports (M12 X-coded 8-pin female connector). The 10/100/1000TX ports located on the front panel of the TN-4900 Series are used to connect to Ethernet- enabled devices. Most users configure these ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are adjusted automatically...
  • Page 15: Led Indicators

    Total PoE Budget TN-4908 PoE models: 50 W TN-4916 PoE models: 95 W ATTENTION (For PoE Models) For safety reasons, it is not recommended to connect the device to a network with routing to external networks. NOTE The suggested cable for M12 X-coded-to-open wires is CBL- M12XMM8P-Y-100-IP67.
  • Page 16 Color State Description When the TN router is either the Master of this Turbo Ring, or the Head of this Turbo Chain. When the TN router is Ring Master of this Turbo Ring and the Turbo Ring is MSTR/ Green Blinking broken, or it is the Chain Head of this HEAD...
