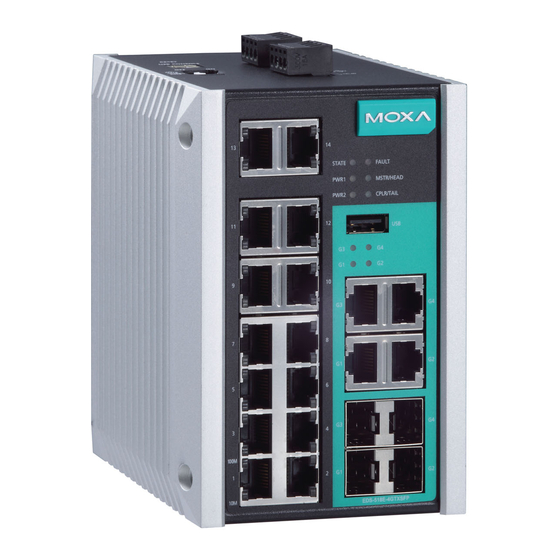

Managed ethernet switch
Hide thumbs Also See for EDS-518E:
Table of Contents

Advertisement

Quick Links

Moxa Managed Ethernet Switch
(UI_2.0_FW_5.x) User's Manual
Edition 1.0, August 2016
www.moxa.com/product
Models covered by this user's manual (only applies to products
using firmware version 5.0 or higher):
EDS-518E, EDS-528E, EDS-G508E, EDS-G512E, EDS-G516E,
EDS-G512E-8PoE
© 2016 Moxa Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDS-518E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies EDS-518E

Summary of Contents for Moxa Technologies EDS-518E

  • Page 1 Moxa Managed Ethernet Switch (UI_2.0_FW_5.x) User’s Manual Edition 1.0, August 2016 www.moxa.com/product Models covered by this user's manual (only applies to products using firmware version 5.0 or higher): EDS-518E, EDS-528E, EDS-G508E, EDS-G512E, EDS-G516E, EDS-G512E-8PoE © 2016 Moxa Inc. All rights reserved.

  • Page 2: Copyright Notice

    Moxa Managed Ethernet Switch (UI_2.0_FW_5.x) User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2016 Moxa Inc. All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc.

  • Page 3: Table Of Contents

    Table of Contents About this Manual ..........................1-1 Getting Started ..........................2-1 USB Console Configuration (115200, None, 8, 1, VT100) ................. 2-2 Configuration by Command Line Interface (CLI) ..................2-5 Configuration by Web Console ......................2-6 Disabling Telnet and Browser Access ..................... 2-8 Featured Functions ...........................
  • Page 4 SNMP .............................. 3-91 SNMP Read/Write Settings......................3-92 Trap Settings ..........................3-93 Industrial Protocols ........................... 3-94 Diagnostics ............................3-94 LLDP ............................3-94 Ping ............................3-95 Port Mirroring ........................... 3-95 Monitoring ............................3-96 CPU/Memory Utilization ......................3-96 Statistics ..........................3-97 Fiber Digital Diagnostics Monitoring (SFP DDM and Fiber Check) ............. 3-98 Event Log ..........................

  • Page 5: About This Manual

    About this Manual Thank you for purchasing a Moxa managed Ethernet switch. Read this user’s manual to learn how to connect your Moxa switch to Ethernet-enabled devices used for industrial applications. A synopsis of chapters 2 and 3 are given below: ...

  • Page 6: Getting Started

    Getting Started In this chapter, we explain how to install a Moxa switch for the first time. There are three ways to access the Moxa switch’s configuration settings: USB console, command line interface, or web-based interface. If you do not know the Moxa switch’s IP address, you can open the USB console by connecting the Moxa switch to a PC’s USB port with a USB cable.

  • Page 7: Usb Console Configuration (115200, None, 8, 1, Vt100)

    Managed Ethernet Switch (UI_2.0_FW_5.x) Getting Started USB Console Configuration (115200, None, 8, 1, VT100) NOTE A Moxa switch allows multi-session connections (up to 6) by connecting to the web console and another console (serial or Telnet) at the same time. NOTE We recommend using PComm Terminal Emulator when opening the USB console.
  • Page 8 Managed Ethernet Switch (UI_2.0_FW_5.x) Getting Started 3. The Property window should open. On the Communication Parameter tab for Ports, select the COM port that is being used for the console connection. Set the other fields as follows: 115200 for Baud Rate, 8 for Data Bits, None for Parity, and 1 for Stop Bits.
  • Page 9 Managed Ethernet Switch (UI_2.0_FW_5.x) Getting Started 6. The USB console will prompt you to log in. Press Enter and select admin or user. Use the down arrow key on your keyboard to select the Password field and enter a password if desired. This password will be required to access any of the consoles (web, serial, Telnet).

  • Page 10: Configuration By Command Line Interface (Cli)

    Managed Ethernet Switch (UI_2.0_FW_5.x) Getting Started Configuration by Command Line Interface (CLI) Opening the Moxa switch’s Telnet or web console over a network requires that the PC host and Moxa switch are on the same logical subnet. You may need to adjust your PC host’s IP address and subnet mask. By default, the Moxa switch’s IP address is 192.168.127.253 and the Moxa switch’s subnet mask is 255.255.255.0 (referred to as a Class B network).

  • Page 11: Configuration By Web Console

    Managed Ethernet Switch (UI_2.0_FW_5.x) Getting Started 4. The Main Menu of the Moxa switch’s Telnet console should appear. 5. In the terminal window, select Preferences… from the Terminal menu on the menu bar. 6. The Terminal Preferences window should appear. Make sure that VT100 Arrows is checked. 7.
  • Page 12 Managed Ethernet Switch (UI_2.0_FW_5.x) Getting Started NOTE When connecting to the Moxa switch’s Telnet or web console, first connect one of the Moxa switch’s Ethernet ports to your Ethernet LAN, or directly to your PC’s Ethernet port. You may use either a straight-through or cross-over Ethernet cable.

  • Page 13: Disabling Telnet And Browser Access

    Managed Ethernet Switch (UI_2.0_FW_5.x) Getting Started Disabling Telnet and Browser Access If you are connecting the Moxa switch to a public network but do not intend to manage it over the network, we suggest disabling both the Telnet and web consoles. This is done from the USB console by navigating to System Identification under Basic Settings ...

  • Page 14: Featured Functions

    Featured Functions In this chapter, we explain how to access the Moxa switch’s various configuration, monitoring, and management functions. These functions can be accessed by USB console, Telnet console, or web console. The USB console can be used if you do not know the Moxa switch’s IP address. To access the USB console, connect switch’s USB port to your PC’s COM port.

  • Page 15: Home

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Home The Home page shows the summary of the Moxa switch information including System Information, Redundancy Protocol, Event Log, and Device virtualization panel. By showing the switch's information and event log, the operators can easily understand the system and port link status at a glance. System Settings The System Settings section includes the most common settings required by administrators to maintain and control a Moxa switch.
  • Page 16 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Switch Name Setting Description Factory Default Max. 30 characters This option is useful for differentiating between the roles or none applications of different units. Example: Factory Switch 1. NOTE The Switch Name field follows the PROFINET I/O naming rule. The name can only include any of these characters, a-z/A-Z/0-9/-/., and the name cannot start with port-xyz or port-xyz-abcde where xyzabcde=0...9 or is in the form n.n.n.n where n=0...9 Switch Location...

  • Page 17: User Account

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions User Account The Moxa switch supports the management of accounts, including establishing, activating, modifying, disabling, and removing accounts. There are two levels of configuration access: admin and user. Accounts with admin authority have read/write access of all configuration parameters, whereas accounts with user authority only have read access to view configuration items.
  • Page 18 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Modifying an Existing Account Select an existing account from the Account List table, modify the account details, and then click Apply to save the changes. Deleting an Existing Account Select an account from the Account List table and then click Delete to delete the account.

  • Page 19: Password Login Policy

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Password Login Policy In order to prevent hackers from cracking the password, Moxa switches allow users to configure a password for their account and lock the account in the event that the wrong password is entered. The account password policy requires passwords to be of a minimum length and complexity with a strength check.
  • Page 20 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions IP Settings The IPv4 settings include the switch’s IP address and subnet mask, as well as the IP address of the default gateway. In addition, input cells are provided for the IP addresses of a 1st and 2nd DNS server. The IPv6 settings include two distinct address types—Link-Local Unicast addresses and Global Unicast addresses.
  • Page 21 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions DNS Server IP Addresses Setting Description Factory Default 1st DNS Server Specifies the IP address of the DNS server used by your None network. After specifying the DNS server’s IP address, you can use the Moxa switch’s URL (e.g., www.PT.company.com) to open the web console instead of entering the IP address.

  • Page 22: Date And Time

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Date and Time The Moxa switch has a time calibration function based on information from an NTP server or user specified time and date, allowing functions such as automatic warning emails to include a time and date stamp. NOTE The Moxa switch does not have a real-time clock.

  • Page 23: Time Setting

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Clock Source is from Local Time Setting The Time settings are set manually or synced automatically with Moxa’s switch time. Clock Source is from NTP The Moxa switch can work as an NTP client or NTP server. The user can enable the NTP Authentication function to do authentication with configured Authentication Key between the NTP client and NTP server.
  • Page 24 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Trusted Setting Description Factory Default Checked Enable the Authentication Key Unchecked Unchecked Disable the Authentication Key NTP Client Settings The NTP server should be set when the Moxa switch is configured to work as an NTP client. Setting Description Factory Default...

  • Page 25: Ieee 1588 Ptp

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions IEEE 1588 PTP The following information is taken from the NIST website at http://ieee1588.nist.gov/intro.htm: “Time measurement can be accomplished using the IEEE Standard for a Precision Clock Synchronization Protocol for Networked Measurement and Control Systems (IEEE 1588-2008) to synchronize real-time clocks incorporated within each component of the electrical power system for power automation applications.
  • Page 26 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions PTP Settings Operation Setting Description Factory Default Enable IEEE 1588 PTP Globally disables or enables IEEE 1588 operation. Disabled Clock Mode (sets the switch’s clock mode) Setting Description Factory Default v1 BC Operates as an IEEE 1588 v1 boundary clock. v1 BC v2 E2E 2-step TC Operates as an edge-to-edge IEEE 1588 v2 transparent clock...
  • Page 27 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Role Setting Description Factory Default Member or Master Set this switch to be the Member or Grand Master Member If a different mode is selected, you will also need to configure the following settings. Announce Interval (sets the announce message interval) Setting Description...

  • Page 28: Ptp Status

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions ARB Time Setting Description Factory Default 0 to 255 The geoid of the PTP clock reference time (seconds). Leap59 Setting Description Factory Default True or False The last minute of the current UTC day contains 59 seconds. If False the epoch is not PTP, the value will be set to FALSE.

  • Page 29: Warning Notification

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Warning Notification Since industrial Ethernet devices are often located at the endpoints of a system, these devices will not always know what is happening elsewhere on the network. This means that an industrial Ethernet switch that connects to these devices must provide system maintainers with real-time alarm messages.
  • Page 30 MAC Sticky Violation Port Disable Any port with MAC sticky function is disabled because of a rule violation *The Fiber Check Warning event is only supported by the EDS-518E series. Four response actions are available on the EDS E series when events are triggered.
  • Page 31 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Port Event Settings Port Events are related to the activity of a specific port. Port Events Warning e-mail is sent when… Link-ON The port is connected to another device. Link-OFF The port is disconnected (e.g., the cable is pulled out, or the opposing device shuts down).

  • Page 32: Event Log Settings

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Event Log Settings This function is used to inform the user what the event log capacity status is and decide what action to take when an event log is oversized. Select the Enable Log Capacity Warning checkbox to set the threshold percentage.
  • Page 33 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions User Name Setting Description Factory Default Max. of 45 characters Your email account name None Password Setting Setting Description Factory Default Password The email account password. None Email Address Setting Description Factory Default Max. of 30 characters You can set up to 4 email addresses to receive alarm emails None from the Moxa switch.
  • Page 34 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions NOTE The following events will be recorded into the Moxa switch’s Event Log table, and will then be sent to the specified Syslog Server: • Cold start • Warm start • Configuration change activated •...

  • Page 35: Mac Address Table

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions MAC Address Table The MAC address table shows the MAC address list passed through the Moxa switch. The Aging Time (15 to 3825 seconds) defines the length of time that a MAC address entry can remain in the Moxa switch. When an entry reaches its aging time, it “ages out”...

  • Page 36: System Files

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions System Files Firmware Upgrade There are three ways to update your Moxa switch’s firmware: from a local *.rom file, by remote TFTP server, and with Auto Backup Configurator (ABC-02). Local 1. Download the updated firmware (*.rom) file from Moxa’s website (www.moxa.com). 2.

  • Page 37: Configuration Backup And Restore

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Configuration Backup and Restore There are three ways to back up and restore your Moxa switch’s configuration: from a local configuration file, by remote TFTP server, and with Auto Backup Configurator (ABC-02). Local 1. Click the Backup button to back up the configuration file to a local drive. 2.
  • Page 38 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions First priority: MAC.ini Second priority: Sys.ini If no matching configuration file is found, the fault LED light will turn on, and the switch will boot up normally. NOTE MAC.ini is named using the last 6 digits of the switch’s MAC address, without spaces. 5.

  • Page 39: Turbo Ring Dip Switch

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions NOTE Note: MM=month, DD=day, HH=hour, mm=minutes, from the system time. The log file includes the following information: Index An event index assigned to identify the event sequence. Bootup This field shows how many times the Moxa switch has been rebooted or cold started. Number Date The date is updated based on how the current date is set on the System Settings page.

  • Page 40: Restart

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions NOTE If you would like to enable VLAN and/or port trunking on any of the last four ports, do not use the fourth DIP switch to activate Turbo Ring. In this case, you should use the Web, Telnet, or Serial console to activate Turbo Ring.

  • Page 41: Poe (Poe Models Only)

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions PoE (PoE Models Only) Power over Ethernet has become increasingly popular, due in large part to the reliability provided by PoE Ethernet switches that supply the power to Powered Devices (PD) when AC power is not available, or is too expensive to provide locally.
  • Page 42 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions PoE System Configuration NOTE The configuration is different, depending on whether the “PoE power output managed by” item is set to “Allocated Power” or “Measured Power.” PoE Power Management by Allocated Power PoE Power Management by Measured Power 3-29...

  • Page 43: Poe Port Configuration

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions PoE System Configuration Settings PoE Power Output Setting Description Factory Default Enable Enables PoE power transmission to a PD Enable Disable Disables PoE power transmission to a PD PoE power management Mode Setting Description Factory Default Allocated Power If a powered device is connected that would cause the total...
  • Page 44 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Output Mode Setting Description Factory Default 802.3 af/at Auto Power transmission follows the IEEE 802.3 af/at protocols. The 802.3 af/at Auto acceptable PD resistance range is 17 kΩ to 29 kΩ. High Power Provides a higher power output to the PD. The acceptable PD resistance range is 17 kΩ...
  • Page 45 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions PoE Device Failure Check The PoE Ethernet switch can monitor the status of a PD via its IP address. If the PD fails, the switch will not receive a PD response after the defined period, and the authentication process will be restarted. This function is extremely useful for ensuring your network’s reliability and reducing your management burden.
  • Page 46 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions PoE Timetabling Powered devices usually do not need to be running 24 hours a day, 7 days a week. The PoE Ethernet switch provides a PoE timetabling mechanism that lets users economize the system’s power burden by setting a flexible working schedule for each PoE port.

  • Page 47: Event Type

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Warning Type Action Description Trap The EDS E series will send a notification to the trap server when an event is triggered. E-Mail The EDS E series will send a notification to the email server defined in Email Settings.
  • Page 48 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions PoE Diagnose PoE Diagnose helps users determine the PD conditions. The system provides the user with configuration options; select the best option for your PDs. Take the following steps to diagnose PD conditions: Step 1: Check which port numbers will be diagnosed. Step 2: Click Activate.

  • Page 49: Monitoring Configuration

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Item Description Select high power output When detecting an unknown classification, the system suggests selecting High Power output. Raise the external power When the external supply voltage is detected at under 46 V, the system supply voltage to greater than suggests raising the voltage.
  • Page 50 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Port Status Status Description Item Description Not Present No connection to the port. PoE power is not being provided. Powered PoE power is being provided by the PSE. System has detected a NIC connected to the port. PoE power is not being provided. Disabled The PoE function of the port is disabled.

  • Page 51: Vlan

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Monitoring Configuration Refresh Rate Setting Description Factory Default 5 to 300 If the Refresh Rate = T, then the PoE Port Status will be refreshed every T seconds. System Power Status System Power Status shows a graph of Sum of measured power, Sum of allocated power, and Max of allocated power.

  • Page 52: Benefits Of Vlans

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Benefits of VLANs The main benefit of VLANs is that they provide a network segmentation system that is far more flexible than traditional networks. Using VLANs also provides you with three other benefits: VLANs ease the relocation of devices on networks: With traditional networks, network administrators •...

  • Page 53: Sample Applications Of Vlans Using Moxa Switches

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions The Moxa switch supports three types of VLAN port settings: • Access Port: The port connects to a single device that is not tagged. The user must define the default port PVID that assigns which VLAN the device belongs to. Once the ingress packet of this Access Port egresses to another Trunk Port (the port needs all packets to carry tag information), the Moxa switch will insert this PVID into this packet so the next 802.1Q VLAN switch can recognize it.

  • Page 54: Configuring A Virtual Lan

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions • Packets from Devices B and C will travel through Hybrid Port 2 with tagged VID 2. Switch B recognizes its VLAN, passes it to port 4, and then removes tags received successfully by Device F, and vice versa. •...
  • Page 55 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions VLAN ID Configuration Table Enable GVRP Setting Description Factory Default Checked/Unchecked Check the checkbox to enable the GVRP function. Remove the Checked checkmark to disable the GVRP function. Management VLAN ID Setting Description Factory Default 1 to 4094 Assigns the VLAN ID to this Moxa switch.

  • Page 56: Vlan Name Setting

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions this port. Use commas to separate different VIDs. NOTE The Quick Setting Panel provides a quick way of configuring multiple VLAN ports with the same setting. VLAN Settings: Port-based When VLAN Mode is set to Port-based VLAN, the VLAN Settings window will appear as shown below. Select the appropriate checkbox under a port to assign the port to a VLAN.

  • Page 57: Qinq Settings

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Name The VLAN name can only include these characters, Null a-z/A-Z/0-9/-/_/ QinQ Settings NOTE Moxa’s layer 3 switches support the IEEE 802.1ad QinQ function, which allows users to tag double VLAN headers into a single Ethernet frame. TPID Setting Description...

  • Page 58: Port

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Port Port Settings Port settings are included to give the user control over port access, port transmission speed, flow control, and port type (MDI or MDIX). Enable Setting Description Factory Default Checked Allows data transmission through the port. Checked Unchecked Immediately shuts off port access.

  • Page 59: Port Status

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions FDX Flow Ctrl This setting enables or disables flow control for the port when the port’s Speed is set to Auto. The final result will be determined by the Auto process between the Moxa switch and connected devices. Setting Description Factory Default...

  • Page 60: The Port Trunking Concept

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions The Port Trunking Concept Moxa has developed a port trunking protocol that provides the following benefits: • Greater flexibility in setting up your network connections, since the bandwidth of a link can be doubled, tripled, or quadrupled.

  • Page 61: Link-Swap Fast Recovery

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Trunk Group (maximum of 4 trunk groups) Setting Description Factory Default Trk1, Trk2, Trk3, Trk4 Specifies the current trunk group. Trk1 (depends on switching chip capability; some Moxa switches only support 3 trunk groups) The EDS 400A series does not support Port Trunking.

  • Page 62: Multicast

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Multicast Multicast filtering improves the performance of networks that carry multicast traffic. This section explains multicasts, multicast filtering, and how multicast filtering can be implemented on your Moxa switch. The Concept of Multicast Filtering What is an IP Multicast? A multicast is a packet sent by one host to multiple hosts.
  • Page 63 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Network without multicast filtering All hosts receive the multicast traffic, even if they don’t need it. Network with multicast filtering Hosts only receive dedicated traffic from other hosts belonging to the same group. Multicast Filtering and Moxa’s Industrial Rackmount Switches There are three ways to achieve multicast filtering with a Moxa switch: IGMP (Internet Group Management Protocol) Snooping, GMRP (GARP Multicast Registration Protocol), and adding a static multicast MAC manually to filter multicast traffic automatically.

  • Page 64: Igmp Multicast Filtering

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions IGMP Multicast Filtering IGMP is used by IP-supporting network devices to register hosts with multicast groups. It can be used on all LANs and VLANs that contain a multicast capable IP router, and on other network devices that support multicast filtering.

  • Page 65: Igmp Snooping

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions IGMP Snooping IGMP Snooping provides the ability to prune multicast traffic so that it travels only to those end destinations that require that traffic, thereby reducing the amount of traffic on the Ethernet LAN. NOTE IGMP Snooping will be disabled when Port-Based VLAN is enabed.

  • Page 66: Igmp Group Status

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Querier Setting Description Factory Default Disable Disables the Moxa switch’s querier function. V1/V2 V1/V2 and V3 checkbox V1/V2: Enables the switch to send IGMP snooping version 1 and 2 queries V3: Enables the switch to send IGMP snooping version 3 queries Static Multicast Querier Port Setting Description...

  • Page 67: Stream Table

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Stream Table This page displays the multicast stream forwarding status. It allows you to view the status by VLAN ID. Stream Group: Multicast group IP address Stream Source: Multicast source IP address Port: The port that receives the multicast stream Member Ports: Ports the multicast stream is forwarded to NOTE IGMP Stream Status is only supported by Moxa’s Layer 3 switches.

  • Page 68: Gmrp

    Learned Port: This multicast address is learned by GMRP Multicast Filtering Behavior Multicast Filtering Behavior supports two options: Forward Unknown and Filter Unknown. Note: Only supported by the EDS-518E, EDS-528E, IKS-6726A, IKS-6728A, IKS-6728A-8PoE,IKS-G6524A, IKS-G6824A, ICS-G7526A, ICS-G7826A, ICS-G7528A, ICS-G7828A, ICS-G7748A, ICS-G7848A, ICS-G7750A, ICS-G7850A, ICS-G7752A, and ICS-G7852A Series.

  • Page 69: Qos

    There are two types of QoS settings, depending on which model of switch you are using. Type Model Type 1 EDS-510E,EDS-518E, EDS-G512E-8PoE EDS-G508E, EDS-G512E-4GSFP, EDS-G516E-4GSFP, IKS-6726A, IKS-6728A, IKS-6728A-8PoE Type 2 IKS-G6524A, IKS-G6824A, ICS-G7526A, ICS-G7826A, ICS-G7528A, ICS-G7828A, ICS-G7748A, ICS-G7848A, ICS-G7750A, ICS-G7850A, ICS-G7752A, ICS-G7852A...

  • Page 70: Traffic Prioritization

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions IEEE 802.1p Priority Level IEEE 802.1D Traffic Type Best Effort (default) Background Standard (spare) Excellent Effort (business critical) Controlled Load (streaming multimedia) Video (interactive media); less than 100 milliseconds of latency and jitter Voice (interactive voice); less than 10 milliseconds of latency and jitter Network Control Reserved traffic Even though the IEEE 802.1D standard is the most widely used prioritization scheme for LAN environments, it still has some restrictions:...

  • Page 71: Configuring Traffic Prioritization

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions marking/re-marking), and is then sorted into the appropriate queue. The switch then forwards packets from each queue. Moxa switches support two different queuing mechanisms: • Weight Fair: This method services all the traffic queues, giving priority to the higher priority queues. Under most circumstances, the Weight Fair method gives high priority precedence over low priority, but in the event that high priority traffic does not reach the link capacity, lower priority traffic is not blocked.

  • Page 72: Priority Mapping (Type 1)

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions TOS/DSCP Inspection Setting Description Factory Default Enable/Disable Enables or disables the Moxa switch for inspecting Type of Enable Server (TOS) bits in the IPV4 frame to determine the priority of each frame. COS Inspection Setting Description Factory Default...

  • Page 73: Priority Mapping (Type 2)

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Priority Mapping (Type 2) CoS Value and Priority Queues Setting Description Factory Default 0 to 7 Maps different CoS values to 8 different egress queues. CoS 0: 0 CoS 1: 1 CoS 2: 2 CoS 3: 3 CoS 4: 4 CoS 5: 5...

  • Page 74: Rate Limiting

    Type 1 EDS-510E Type 2 EDS-G508E, EDS-G512E-4GSFP, EDS-G516E-4GSFP, EDS-G512E-8PoE Type 3 EDS-518E, IKS-6726A, IKS-6728A, IKS-6728A-8PoE Type 4 IKS-G6524A, IKS-G6824A, ICS-G7526A, ICS-G7826A, ICS-G7528A, ICS-G7828A, ICS-G7748A, ICS-G7848A, ICS-G7750A, ICS-G7850A, ICS-G7752A, ICS-G7852A Type 1 For Type 1, the Control Mode setting on the Rate Limiting page can be set to Normal or Port Disable.
  • Page 75 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Rate Limiting: Normal Ingress Rate Limit Policy Description Factory Default Limit All Select the ingress rate limit for different packet types from the Limit Broadcast 8M following options: Unlimited, 128K, 256K, 512K, 1M, 2M, 4M, Limit Broadcast, Multicast, Flooded Unicast...
  • Page 76 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Rate Limiting: Port Disable Setting Description Factory Default Port disable duration When the ingress multicast and broadcast packets exceed the 30 seconds (1-65535 seconds) ingress rate limit, the port will be disabled for this period of time.
  • Page 77 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Rate Limiting: Drop Packet Setting Description Factory Default Ingress rate (% of Select the ingress rate limit (% of max. throughput) for all Unlimited max. throughput) packets from the following options: Not Limited, 3%, 5%, 10%, 15%, 25%, 35%, 50%, 65%, 85% Rate Limiting: Port Disable Setting...
  • Page 78 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Type 3 For Type 3, the Action setting on the Rate Limiting page can be set to Drop Packet or Port Disable. Action Setting Description Factory Default Drop Packet Set the max. ingress/egress rate limit for ingress/egress Drop Packet packets Port Disable...
  • Page 79 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Rate Limiting: Port Disable Setting Description Factory Default Port disable duration When the ingress packets exceed the ingress rate limit, the 30 seconds (1-65535 seconds port will be disabled for a certain period. Ingress (frame per Select the ingress rate (fps) limit for all packets from the Unlimited second)
  • Page 80 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Rate Limiting: Normal Ingress Rate Limit Policy Description Factory Default Limit All Select the ingress rate limit for different packet types from the Limit Broadcast 8M following options: Unlimited, 128K, 256K, 512K, 1M, 2M, 4M, Limit Broadcast, Multicast, Flooded Unicast...

  • Page 81: Security

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Rate Limiting: Port Disable Setting Description Factory Default Port disable duration When the ingress packets exceed the ingress rate limit, the 30 seconds (1-65535 seconds) port will be disabled for a certain period. Ingress (frames per Select the ingress rate (fps) limit for all packets from the Unlimited second)
  • Page 82 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Enable HTTPS Setting Description Factory Default Select/Deselect Select the appropriate checkboxes to enable HTTPS. TCP Port: 443 Enable Telnet Setting Description Factory Default Select/Deselect Select the appropriate checkboxes to enable Telnet. TCP Port: 23 Enable SSH Setting Description...

  • Page 83: Trusted Access

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Trusted Access The Moxa switch uses an IP address-based filtering method to control access. You may add or remove IP addresses to limit access to the Moxa switch. When the Trusted Access list is enabled, only addresses on the list will be allowed access to the Moxa switch.

  • Page 84: Ssl Certificate Management

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions SSL Certificate Management Certificate Import 1. Click Browse and select Public-Key Cryptography Standard (PKCS) #12 certificate file 2. Enter the Import Password and click Import 3. The SSL certificate is updated Regenerate SSL Certificate Setting Description Factory Default...
  • Page 85 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions There are five combinations for users: 1. TACACS+, Local: Check TACACS+ database first. If checking the TACACS+ database fails, then check the Local database 2. RADIUS, Local: Check RADIUS database first. If checking the RADIUS database fails, then check the Local database 3.
  • Page 86 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions IEEE 802.1X Settings The IEEE 802.1X standard defines a protocol for client/server-based access control and authentication. The protocol restricts unauthorized clients from connecting to a LAN through ports that are open to the Internet, and which otherwise would be readily accessible.
  • Page 87 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Authentication Protocol Setting Description Factory Default 802.1X Local Select this option when setting the 802.1X Local User Database 802.1X Local (Max. of 32 users) as the authentication database. RADIUS Select this option to set an external RADIUS server as the authentication database.
  • Page 88 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions IEEE 802.1X Local Database When selecting the 802.1X Local as the authentication protocol, set the IEEE 802.1X Local Database first. IEEE 802.1X Local Database Setup Setting Description Factory Default User Name User Name for the Local User Database None (Max.
  • Page 89 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions MAC Authentication Bypass Settings Authentication Protocol Setting Description Factory Default RADIUS RADIUS is the only authentication protocol of the MAC RADIUS Authentication Bypass Re-Auth Setting Description Factory Default Enable/Disable Select enable to require re-authentication of the client after a Disable preset time period of no activity has elapsed Re-Auth Period (sec)

  • Page 90: Radius Server Settings

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions RADIUS Server Settings Apply Login Authentication Setting Setting Description Factory Default Select/Deselect Enables using the same setting as Auth Server. Deselect Server Setting Setting Description Factory Default Server IP/Name Specifies the IP/name of the server None Server Port Specifies the port of the server...

  • Page 91: Port Security

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Port Security Moxa switches provide a Port Security function that lets packets with allowed MAC Addresses access the switch’s ports. Two Port Security modes are supported: Static Port Lock and MAC Address Sticky. Static Port Lock: Allows users to configure specific MAC addresses that are allowed to access the port. MAC Address Sticky: Allows users to configure the maximum number of MAC addresses (the Limit) that a port can “learn.”...
  • Page 92 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Violation Port Disable (only active for MAC Address Sticky) Setting Description Factory Default Disable When the port receives a packet with an unlearned MAC Disable address, the packet will be discarded. Enable When the port receives a packet with an unlearned MAC address, the port will be disabled.
  • Page 93 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions MAC Address Sticky Port Number Setting Description Factory Default Port Number Associates the static address to a dedicated port None Setting Description Factory Default VLAN ID Associates the static address to a dedicated VLAN on the port None MAC Address Setting...

  • Page 94: Port Access Control Table

    Port Access Control Table The port status will be indicated as authorized or unauthorized. Broadcast Storm Protection Broadcast Storm Protection is only supported by the EDS-G508E, EDS-G512E-4GSFP, EDS-G516E-4GSFP, IKS-6726A/6728A/6728A-8PoE, EDS-G512E-8PoE, EDS-518E, and EDS-528E series. Broadcast Storm Protection Setting Description Factory Default Unchecked Broadcast storm protection is not activated.

  • Page 95: Loop Protection

    NOTE Access Control Lists are available in Moxa Layer 3 switches and the following layer 2 switches: EDS-528E, EDS-518E. EDS-G508E, EDS-G512E, EDS-G516E, and EDS-G512E-8PoE. Layer 2 switches only support Ingress ACL. Access control lists (ACLs) increase the flexibility and security of networking management. ACLs provide traffic filtering capabilities for ingress and egress packets.
  • Page 96 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions How an ACL Works The ACL working structure is based on access lists. Each access list is a filter. When a packet enters into or exits from a switch, the ACL will compare the packet to the rules in the access lists, starting from the first rule. If a packet is rejected or accepted by the first rule, the switch will drop or pass this packet directly without checking the rest of the lower-priority rules.
  • Page 97 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions • ACL ID: The ACL checking sequence is based on these IDs. Smaller ID numbers have a higher priority for packet filtering. If a packet is filtered by an access control profile with a higher priority, those access control profiles with a lower priority will not be executed.
  • Page 98 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions IP Based (Layer 3 Device) • Action: Whether to deny or permit access if the rule criterion is met. Source (Destination) IP Address / IP Address Mask: Defines the IP address rule. By using the mask, •...
  • Page 99 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions MAC Based (Layer 2 Device) 3-86...
  • Page 100 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions MAC Based (Layer 3 Device) • Action: Whether to deny or permit access if the rule criterion is met. Source (Destination) MAC Address / MAC Address Mask: Defines the MAC address rule. By using the •...

  • Page 101: Dhcp

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Access Control List Table The Access Control List Table page provides a complete view of all ACL settings. On this page, you can view the rules by Ingress port, Egress port, or ACL ID. Click the drop-down menu to select Port or ACL ID, and all the rules will be displayed in the table.
  • Page 102 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions DHCP Relay Agent (Option 82) Option 82 is used by the relay agent to insert additional information into the client’s DHCP request. The Relay Agent Information option is inserted by the DHCP relay agent when forwarding client-originated DHCP packets to a DHCP server.

  • Page 103: Dhcp Option 82

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Server IP Address 1st Server Setting Description Factory Default IP address for the 1st Assigns the IP address of the 1st DHCP server that the switch None DHCP server tries to access. 2nd Server Setting Description Factory Default...

  • Page 104: Snmp

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions SNMP The Moxa switch supports SNMP V1, V2c, and V3. SNMP V1 and SNMP V2c use a community string match for authentication, which means that SNMP servers access all objects with read-only or read/write permissions using the community strings public and private by default.

  • Page 105: Snmp Read/Write Settings

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions SNMP Read/Write Settings SNMP Versions Setting Description Factory Default V1, V2c, V3, or Specifies the SNMP protocol version used to manage the V1, V2c V1, V2c, or switch. V3 only V1, V2c Read Community Setting Description Factory Default...

  • Page 106: Trap Settings

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Trap Settings SNMP traps allow an SNMP agent to notify the NMS of a significant event. The switch supports two SNMP modes: Trap mode and Inform mode. SNMP Trap Mode—Trap In Trap mode, the SNMP agent sends an SNMPv1 trap PDU to the NMS. No acknowledgment is sent back from the NMS so the agent has no way of knowing if the trap reached the NMS.

  • Page 107: Industrial Protocols

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Industrial Protocols The Moxa switch supports 3 industrial protocols, EtherNet/IP, Modbus TCP, and PROFITNET I/O. All three protocols can be enabled or disabled by checking the appropriate checkbox. Modbus TCP is enabled by default, with the other two options disabled.

  • Page 108: Ping

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Configuring LLDP Settings General Settings LLDP Setting Description Factory Default Enable or Disable Enables or disables the LLDP function. Enable Message Transmit Interval Setting Description Factory Default 5 to 32768 sec. Sets the transmit interval of LLDP messages, in seconds. 5 (seconds) LLDP Table The LLDP Table displays the following information:...

  • Page 109: Monitoring

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Port Mirroring Settings Setting Description Monitored Port Select which ports will be monitored. Sniffer Mode Select one of the following three watch direction options: • RX: Select this option to monitor only those data packets coming into the Moxa switch’s port.

  • Page 110: Statistics

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Statistics Access the Monitor by selecting Monitoring from the left selection bar. Monitor by System allows the user to view a graph that shows the combined data transmission activity of all of the Moxa switch’s 18 ports. Click one of the four options—Total Packets, TX Packets, RX Packets, or Error Packets—to view transmission activity of specific types of packets.

  • Page 111: Fiber Digital Diagnostics Monitoring (Sfp Ddm And Fiber Check)

    Fiber Digital Diagnostics Monitoring functions: SFP DDM and Fiber Check. Type Models Supported SFP DDM EDS-510E, IKS-6726A, IKS-6728A, IKS-6728A-8PoE, IKS-G6524A, IKS-G6824A, ICS-G7526A, ICS-G7826A, ICS-G7528A, ICS-G7828A, ICS-G7748A, ICS-G7848A, ICS-G7750A, ICS-G7850A, ICS-G7752A, ICS-G7852A Series Fiber Check EDS-518E series, EDS-G508E, EDS-G512E, EDS-G516E 3-98...
  • Page 112 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions SFP Digital Diagnostic Monitor Parameter Description Port Switch port number that the SFP is plugged into Model Name Moxa SFP model name Temperature (°C) SFP casing temperature Voltage (V) Voltage supplied to the SFP Tx power (dBm) The amount of light being transmitted into the fiber optic cable Rx power (dBm)
  • Page 113 Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Parameter Description Port Switch port number with a fiber connection. Model Name Moxa SFP/fixed type fiber model name. Wavelength (nm) Wavelength of the fiber connection. Vcc (V) Voltage supply to the fiber connection. Temperature (°C) – Current Fiber connection current temperature.

  • Page 114: Event Log

    Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions Event Log The Event Log Table displays the following information: Index Event index assigned to identify the event sequence. Bootup Number This field shows how many times the Moxa switch has been rebooted or cold started. Date The date is updated based on how the current date is set in the Basic Setting page.

  • Page 115: Mib Groups

    MIB Groups The Moxa switch comes with built-in SNMP (Simple Network Management Protocol) agent software that supports cold/warm start trap, line up/down trap, and RFC 1213 MIB-II. The standard MIB groups that the Moxa switch supports are as follows: MIB II.1—System Group sysORTable MIB II.2—Interfaces Group ifTable...
  • Page 116 Managed Ethernet Switch (UI_2.0_FW_5.x) MIB Groups dot1dTpHCPortTable dot1dTpPortOverflowTable pBridgeMIB dot1dExtBase dot1dPriority dot1dGarp qBridgeMIB dot1qBase dot1qTp dot1qFdbTable dot1qTpPortTable dot1qTpGroupTable dot1qForwardUnregisteredTable dot1qStatic dot1qStaticUnicastTable dot1qStaticMulticastTable dot1qVlan dot1qVlanCurrentTable dot1qVlanStaticTable dot1qPortVlanTable The Moxa switch also provides a private MIB file, located in the file Moxa-[switch’s model name]-MIB.my on the Moxa switch utility CD-ROM.

This manual is also suitable for:

Eds-g508eEds-528eEds-g516eEds-g512e-8poeEds-g512eEds-510e

Table of Contents

Save PDF
