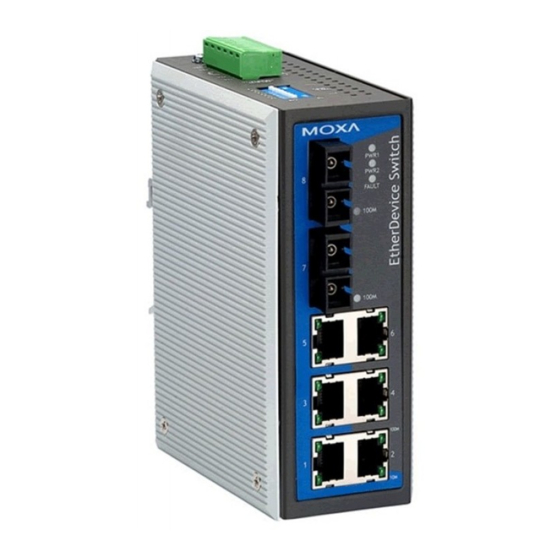

Page 1 Moxa EtherDevice Switch EDS-308/309 Hardware Installation Guide Eighth Edition, September 2010 © 2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan, R.O.C. TEL: +886-2-8919-1230 P/N: 1802003083010...
Page 2: Package Checklist
Moxa EtherDevice Switch: EDS = Moxa EtherDevice Switch Package Checklist Moxa EDS-308/309 is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. Moxa EtherDevice™ Switch...
Page 3 EDS-308 Panel Layout EDS-308 Grounding screw Front Panel View Terminal block for power inputs PWR1/PWR2 and relay output Heat dissipation orifices DIP switches Power input PWR1 LED Power input PWR2 LED Fault LED 10/100BaseT(X) Port TP port’s 100 Mbps LED TP port’s 10 Mbps LED...
Page 4 EDS-308 Panel Layout (SC-type) EDS-308-M-SC EDS-308-MM-SC Front Panel View Front Panel View NOTE: The appearance of EDS-308-S-SC Top Panel View is identical to EDS-308-M-SC, and the appearance of EDS-308-SS-SC is identical to EDS-308-MM-SC. PWR2 FAULT PWR1 Grounding screw V1 V2 INPUTS: 24 VDC...
Page 5 EDS-309 Panel Layout (SC-type) EDS-309-3M-SC Front Panel View Grounding screw Terminal block for power inputs PWR1/PWR2 and relay output Heat dissipation orifices DIP switches Power input PWR1 LED Power input PWR2 LED Fault LED 10/100BaseT(X) Port TP port’s 100 Mbps LED TP port’s 10 Mbps LED Model Name 100BaseFX Port...
Page 6 EDS-308/309 Panel Layout (ST-type) EDS-308-MM-ST EDS-309-3M-ST Front Panel View Front Panel View Top Panel View Grounding screw Terminal block for power input PWR2 PWR1/PWR2 and relay output FAULT Heat dissipation orifices PWR1 V1 V2 INPUTS: 24 VDC DIP switches Power input PWR1 LED...
Page 7: Mounting Dimensions (Unit = Mm)
The aluminum DIN-Rail attachment plate should already be fixed to the back panel of EDS-308/309 when you take it out of the box. If you need to reattach the DIN-Rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below.
Page 8: Wall Mounting (Optional)
Wall Mounting (optional) For some applications, you will find it convenient to mount EDS-308/309 on the wall, as illustrated below. STEP 1: Remove the aluminum DIN-Rail attachment plate from plate ⇒ EDS-308/309’s rear panel, and then attach the wall mount...
Page 9: Wiring Requirements
Wiring Requirements WARNING Do not disconnect modules or wires unless the power supply has been switched off or the area is known to be non-hazardous. The devices may only be connected to the supply voltage shown on the type plate. The devices are designed for operation with a Safety Extra-Low Voltage.
Page 10: Wiring The Alarm Contact
Grounding Moxa EtherDevice Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel.
Page 11: Communication Connections
ATTENTION Before connecting the EDS to the DC power inputs, make sure the DC power source voltage is stable. Communication Connections 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) ports located on the EDS’s front panel are used to connect to Ethernet-enabled devices. Below we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports, and also show cable wiring diagrams for straight-through and cross-over Ethernet cables.
Page 12: Redundant Power Inputs
Both power inputs can be connected simultaneously to live DC power sources. If one power source fails, the other live source acts as a backup, and automatically supplies all of EDS-308/309’s power needs. Alarm Contact The Moxa EtherDevice Switch has one Alarm Contact located on the top panel.
Page 13: Dip Switch Settings
100BaseFX port is inactive Auto MDI/MDI-X Connection The Auto MDI/MDI-X function allows users to connect EDS-308’s 10/100BaseTX ports to any kind of Ethernet device, without needing to pay attention to the type of Ethernet cable being used for the connection. This means that you can use either a straight-through cable or cross-over cable to connect EDS-308/309 to Ethernet devices.
Page 14: Switching, Filtering, And Forwarding
Switching and Address Learning Moxa EDS-308/309 has an address table that can hold up to 1K node addresses, which makes it suitable for use with large networks. The address tables are self-learning, so that as nodes are added or removed, or moved from one segment to another, EDS-308/309 automatically keeps up with new node locations.
Page 15: Specifications
(1 dB/km, 800 MHz × km) Power Input Voltage 12 to 48 VDC (EDS-308 Series), redundant inputs 12 to 45 VDC (EDS-309 Series), redundant inputs Input Current @ 24VDC 1.1A (EDS-308 Series, EDS-309 Series) Connection Removable “6-pin” Terminal Block Overload Current 1.1 A (EDS-308) Protection 1.6 A (EDS-308-M, EDS-308-S, EDS-308-MM,...
Page 16 Environmental Operating Temperature 0 to 60ºC (32 to 140ºF) -40 to 75ºC (-40 to 167ºF) for -T models Storage Temperature -40 to 85ºC (-40 to 185ºF) Ambient Relative Humidity 5 to 95% (non-condensing) Regulatory Approvals Safety UL60950, UL 508, CSA C22.2 No. 60950, EN60950 Hazardous Location UL/cUL Class I, Division 2, Groups A, B, C and D ATEX Class I, Zone 2, Ex nC nL IIC T4...

This manual is also suitable for:
