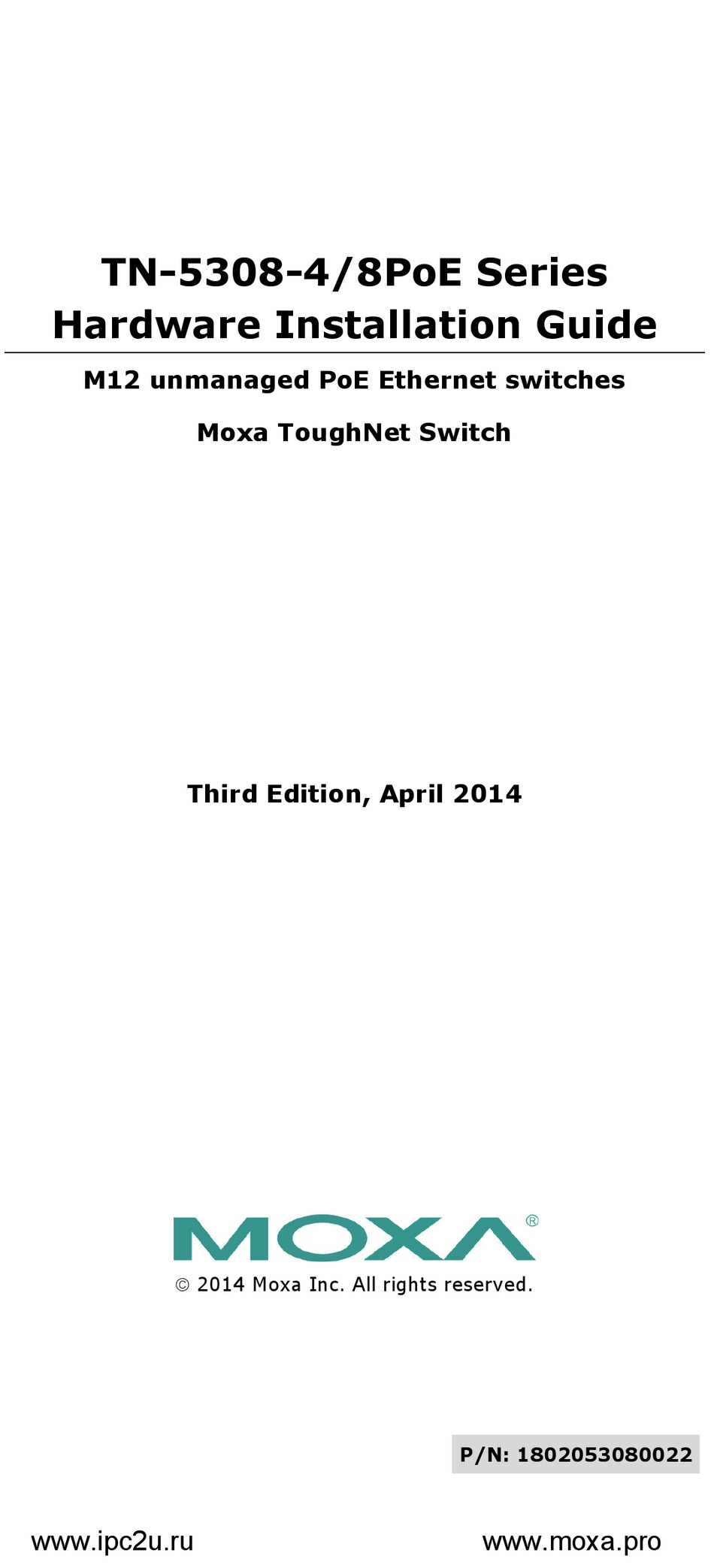

- Page 1 TN-5308-4/8PoE Series Hardware Installation Guide M12 unmanaged PoE Ethernet switches Moxa ToughNet Switch Third Edition, April 2014 2014 Moxa Inc. All rights reserved. P/N: 1802053080022 www.ipc2u.ru www.moxa.pro...
-
Page 2: Package Checklist
Overview The ToughNet TN-5308-4PoE and TN-5308-8PoE series M12 unmanaged PoE Ethernet switches are designed for industrial applications in harsh environments. The TN series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5308-4PoE and TN-5308-8PoE series Ethernet switches provide 8 Fast Ethernet M12 ports, 4 or 8 of which are 10/100BaseT(X) PoE compliant, support IEEE 802.3/802.3u/802.3x/802.3af with 10/100M,... - Page 3 TN-5308-4PoE Panel Layouts 1. TP port’s 10/100 Mbps LED 2. 10/100BaseT(X) port (female 4-pin shielded M12 connector with D coding) 3. Port label 4. Screw holes for panel mounting kit or DIN rail mounting kit (there are 3 holes: top middle, bottom left, and bottom right) 5.
- Page 4 TN-5308-8PoE Panel Layouts 1. TP port’s 10/100 Mbps LED 2. 10/100BaseT(X) port (female 4-pin shielded M12 connector with D coding) 3. Port label 4. Screw holes for panel mounting kit or DIN rail mounting kit (there are 3 holes: top middle, bottom left, and bottom right) 5.
-
Page 5: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) TN-5308-4PoE TN-5308-8PoE Panel/Wall Mounting Mounting the TN-5308-4/8PoE on the wall requires 3 screws. Please use the 3 screws packed in the panel mounting kit. STEP 1: Prepare the 3 screw holes on the wall according to the positions of the 3 screw holes on the switch shown on the mounting dimension diagram. -
Page 6: Din-Rail Mounting (Optional)
NOTE Please use the screws (M3 x 40 mm) packed in the panel mounting kit. DIN-Rail Mounting (optional) With the optional DIN-Rail mounting kit DK-TN-5308-4/8PoE (must be purchased separately), you can mount the TN-5308-4/8PoE on a 35mm DIN-Rail. STEP 1: Fix the DIN-Rail attachment plate onto the rear panel of the switch as shown in the figure at the right. - Page 7 ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa switch. This device has UL508 approval. Use copper conductors only, 60/75°C, and tighten to 4.5 pound-inches. For use in pollution degree 2 environments. ATTENTION Safety First! Calculate the maximum possible current in each power wire and common wire.
-
Page 8: Connecting The Power Supply
Connecting the Power Supply The M12 A-coded 5-pin male connector on the TN-5308-4/8PoE front panel is used for the DC power input. You have to prepare a power cord with M12 A-coded 5-pin female connector to connect the switch to the DC power input. - Page 9 Pinouts for the 10/100BaseT(X) Ports on the TN-5308-4/8PoE Pinouts for the RJ45 (8-pin) Port RJ45 (8-Pin) MDI Port Pinouts MDI-X Port Pinouts Signal Signal Tx + Rx + Tx - Rx - Rx + Tx + Rx - Tx - M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring M12 (4-pin, M) to M12 (4-pin, M) Straight-Through Cable Wiring - 9 -...
-
Page 10: Auto Mdi/Mdi-X Connection
M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Straight-Through Cable Wiring Auto MDI/MDI-X Connection The Auto MDI/MDI-X function allows users to connect TN-5308-4/8PoE’s 10/100BaseTX ports to any kind of Ethernet device, without needing to pay attention to the type of Ethernet cable being used for the connection. -
Page 11: Auto-Negotiation And Speed Sensing
Auto-Negotiation and Speed Sensing All of the TN-5308-4/8PoE’s Ethernet ports independently support auto-negotiation for speeds in the 10BaseT and 100BaseTX modes, with operation according to the IEEE 802.3u standard. This means that some nodes could be operating at 10 Mbps, while at the same time, other nodes are operating at 100 Mbps. - Page 12 Operating Humidity 5 to 95% (non-condensing) Regulatory Approvals Safety UL508 (Pending) Rail Traffic EN50155, EN50121-3-2, EN50121-4 FCC Part 15, CISPR (EN55022) class A EN61000-4-2 (ESD), level 3 EN61000-4-3 (RS), level 3 EN61000-4-4 (EFT), level 3 EN61000-4-5 (Surge), level 3 EN61000-4-6 (CS), level 3 EN61000-4-8 Shock IEC61373...
