Reison 10018 User Instruction

Clamp armboard
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual

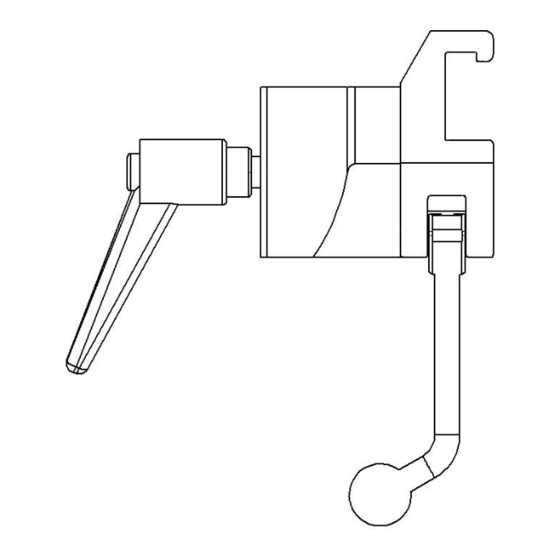

Clamp armboard 10018
Clamp armboard 10018 including versions
Version
10018
10018-UK
10018-US
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2022-02-03
Document number: M10018EN rev.01
1
Description
Clamp (EU 25x10 mm rail)
Clamp (UK 1¼ " x ¼ " rail)
Clamp (US 1⅛ '' x ⅜ '' rail)
Pole type
Ø20 mm
Ø18 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10018 and is the answer not in the manual?

Questions and answers

Related Manuals for Reison 10018

Summary of Contents for Reison 10018

  • Page 1 Clamp armboard 10018 Clamp armboard 10018 including versions Version Description Pole type 10018 Clamp (EU 25x10 mm rail) Ø20 mm 10018-UK Clamp (UK 1¼ ” x ¼ ” rail) Ø18 mm 10018-US Clamp (US 1⅛ ’’ x ⅜ ’’ rail) Warning! This symbol indicates important information related to safety.
  • Page 2 Intended use Clamp intended to attach and position accessories, with a pole size Ø 16 mm or plane Ø 20 mm, to the accessory rail on operating and examination tables. The product is to be used by medical professionals within a medical facility. Safety regulation Maximum load: 10 kg inward load over the OR-table and 20 kg outward load away from the OR-table, according to EN 60601-1 and EN 60601-2.
  • Page 3 User instruction Installation Usage...
  • Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used. Wipe dry with soft cloth.
  • Page 5 Spare parts Version: 10018 10018-UK 10018-US Description Pcs. Articele no. Articele no. Articele no. House 10031 10543 10547 Guide 10053 10053 10053 Screw MC6S M6x45 FZ Adjustable handle 6-593-65 6-593-65 6-593-65 Shaft 10009 10009 10009 Spring 10013 10013 10013 Pressure pin...
  • Page 6 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
