WebRelay-10 Plus™ Users Manual
Step 3: Right click on the icon labeled Local Area Connection. In the menu that follows, select the option at the
bottom of the menu labeled Properties. The Local Area Connection Properties window will appear. Scroll down to
and highlight "Internet Protocol (TCP/IP)," then click the button labeled "Properties."

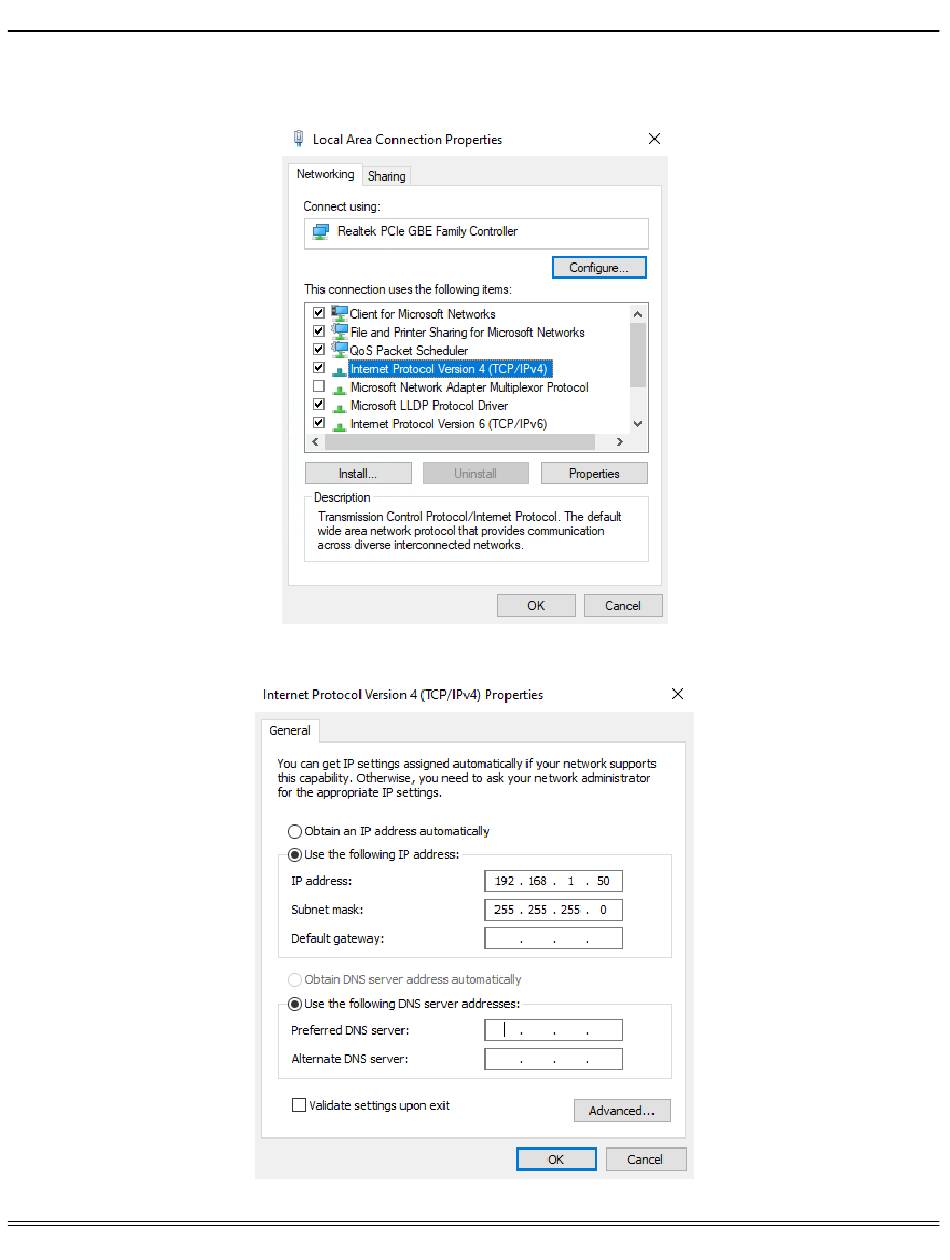

Figure 2.3f - Local Area Connection
Step 4: The following "Internet Protocol (TCP/IP)" Properties menu appears:
Figure 2.3g - TCP/IP Properties
Xytronix Research & Design, Inc.
Page 19
