ControlByWeb WEBRelay-10+ User Manual page 11

WebRelay-10 Plus™ can be used on a wireless network by connecting through an Ethernet bridge or a wireless
router. WebRelay-10 Plus™ is connected directly to the wireless device.
Note: The wireless Ethernet bridge or router must be properly configured for the wireless network. Refer to the
installation instructions for the wireless device.Terminal Connector.
The removable 5-position terminal connector is used for connecting temperature sensors, humidity sensors, or
discrete inputs. The terminals are described in the table below.
IMPORTANT: MAKE SURE WIRES ARE PROPERLY ATTACHED TO THE TERMINALS AND THAT THE SCREW
TERMINALS ARE TIGHT!
Xytronix Research & Design, Inc.

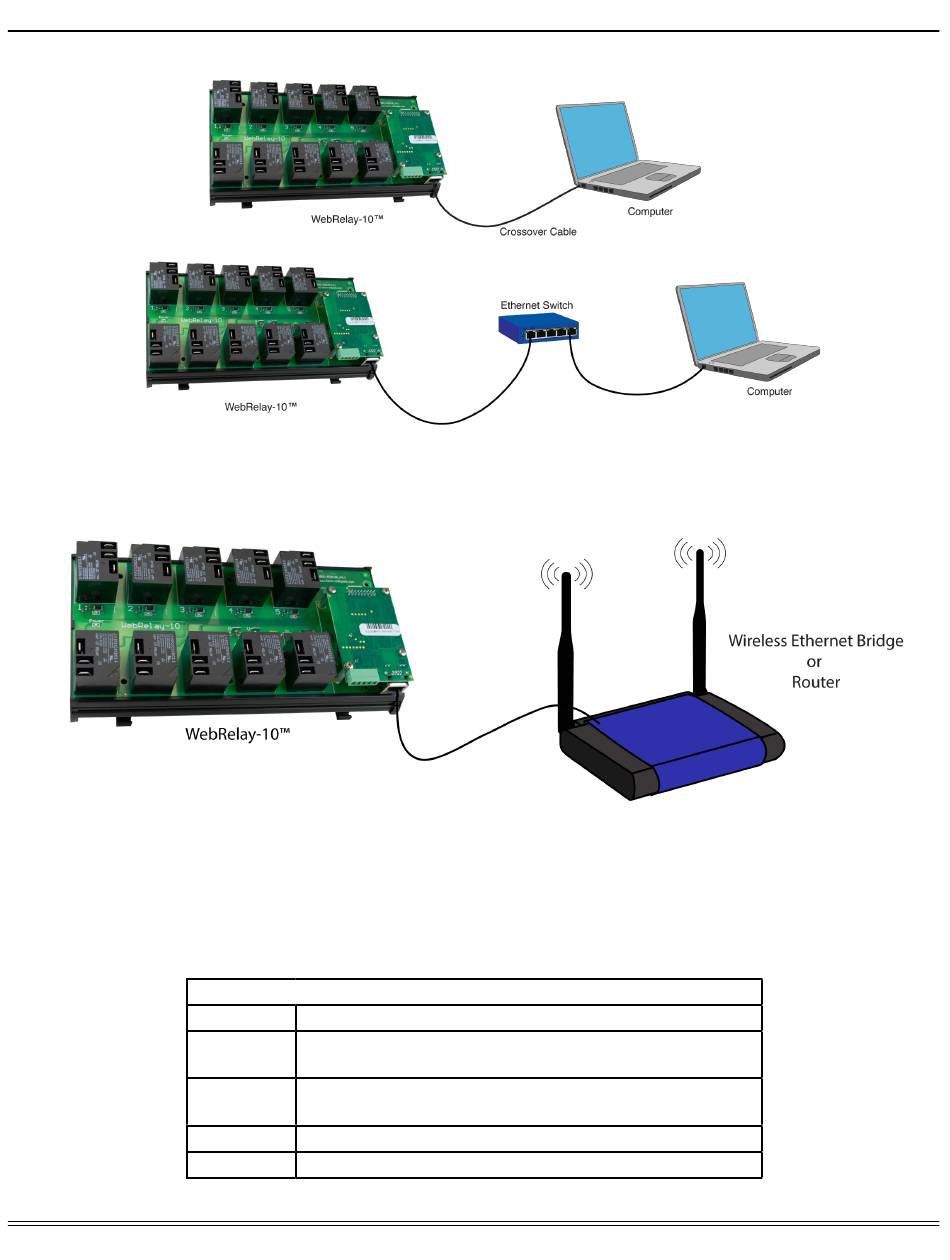

Figure 2.2a - Network Connection
Figure 2.2b - Wireless Connection
5-pin connector pinout
Pin Description
Data Temperature/Humidity Data. This is the data line
connection for the digital temperature/humidity sensors.
+5V Out This output voltage is used to provide power for the digital
temperature/humidity sensors.
Ground Ground connection for 5VDC output, and Inputs.
Input 1 & 2 Discrete Inputs.
WebRelay-10 Plus™ Users Manual
Page 11
