ControlByWeb WEBRelay-10+ User Manual page 13

Temperature/Humidity Sensor Connection
Temperature and/or humidity sensors can be used for monitoring environmental conditions. The digital sensors
use a one-wire data bus, which allows up to eight sensors to share the same terminals (+5V, Ground, Data).
Every sensor on the one-wire bus is assigned a unique serial number when it is manufactured. That number is
used to address the device during communication.
The sensors have three wires; the wire color is show in the table below.
Figure 2.2f - Temperature Sensor
Multiple sensors can be connected in two ways, directly connected to the unit (star topology) or "daisy chained"
(linear topology) as shown in Figure 2.2g.
Xytronix Research & Design, Inc.

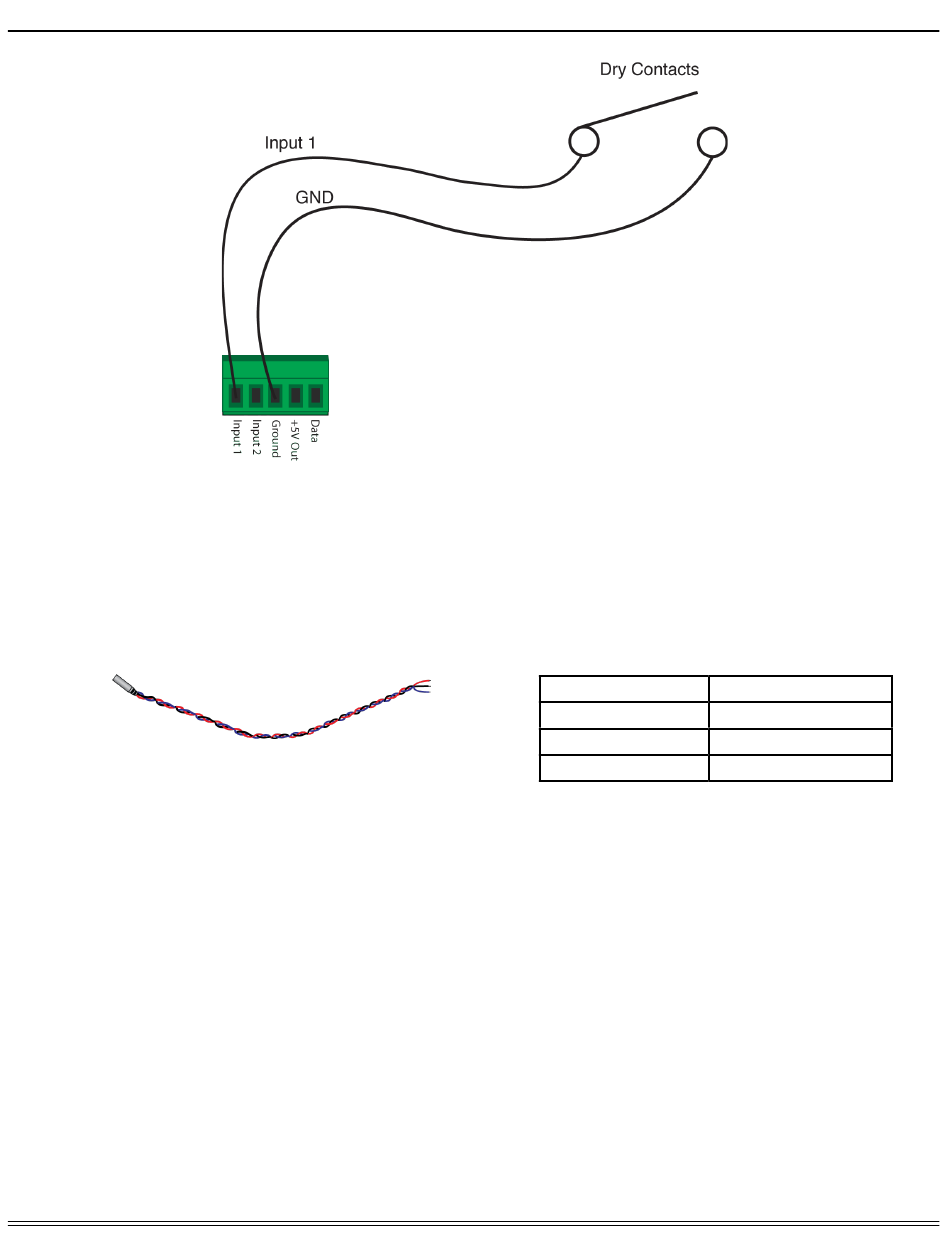

Figure 2.2e - Input Connector
Sensor Wire Color
Red
Black
Blue (or White)
WebRelay-10 Plus™ Users Manual
Connection
Vout
Gna
Data
Page 13
