USER MANUAL

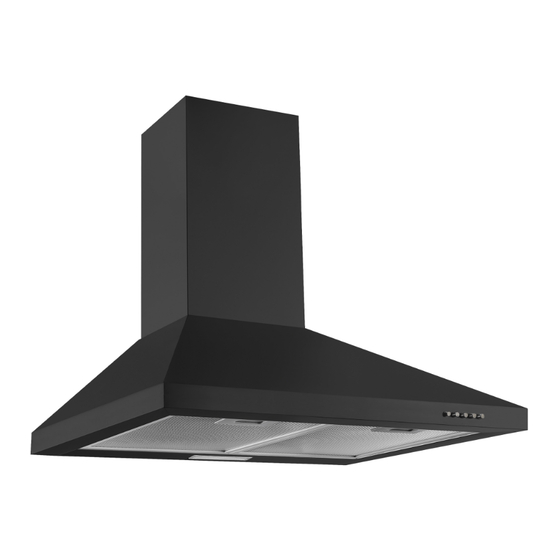

60cm Black Slimline Canopy Rangehood
Model No. BRA603SCB
FINELINE: 0430298
BRA603SCB-F
GSM Retail Australia Pty Ltd ABN: 53 007 682 475
For Warranty and technical queries: Australia 1300 373 199
For Warranty and technical queries: New Zealand 0800 764 912
www.belliniappliances.com.au
V2 June 2023
Advertisement
Related Manuals for Bellini BRA603SCB
Summary of Contents for Bellini BRA603SCB

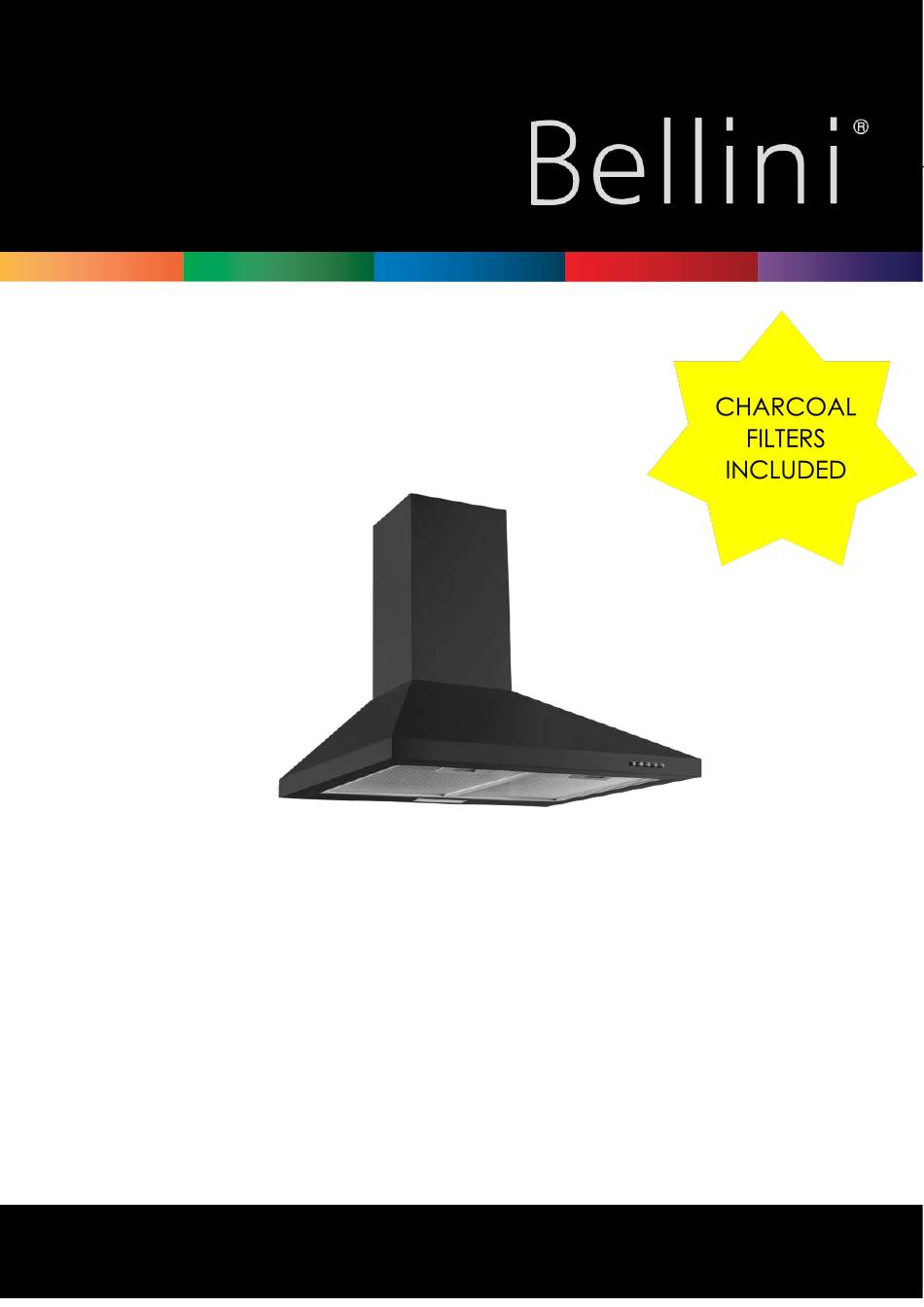

- Page 1 USER MANUAL 60cm Black Slimline Canopy Rangehood Model No. BRA603SCB FINELINE: 0430298 BRA603SCB-F GSM Retail Australia Pty Ltd ABN: 53 007 682 475 For Warranty and technical queries: Australia 1300 373 199 For Warranty and technical queries: New Zealand 0800 764 912 www.belliniappliances.com.au...
- Page 2 Thank you. Thank you for choosing Bellini Appliances. This Bellini appliance carries a 3 year in home warranty, be sure to retain your user manual and receipt. For all warranty and technical queries please phone: Australia 1300 373 199 New Zealand 0800 764 912...
-
Page 3: Table Of Contents
Contents Safety Instructions------------------------------2 Product Description-----------------------------4 Operation-----------------------------------------5 Installation----------------------------------------6 Start Using your Rangehood-----------------11 Maintenance and Cleaning -------------------12 Warranty------------------------------------------13... -
Page 4: Safety Instructions
In case of failure, only the Authorised Technical Service may repair this range hood. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only. Never Do : Always Do: This appliance is not intended for use by persons •... - Page 5 Safety instructions Always Do: Never Do : Attention should be given to ensure that any This range hood cannot be installed for outdoor use. • • applicable regulations concerning discharge of It is prohibited to fit the range hood over a solid fuel •...
-
Page 6: Product Description
1. Upper decorative chimney bracket 2. Upper decorative chimney (Inner) Power supply: 220 – 240v, 50Hz : 3. Lower decorative chimney bracket BRA603SCB(-F) 1x1.5W LED Light 4. Lower decorative chimney (Outer) ILCOS D code for this light is: DSS-1.5/65-S-120/33 5. Air outlet with flag Motor: 110W 6. -
Page 7: Operation
Operation Mode Your range hood can be operated in two optional modes, choose the mode suitable for your kitchen before installation. Air Extraction To outside For air extraction mode, a ducting kit is required, the air is drawn in and cleaned by the grease filters and directed outside. Ducting must be vented to outside atmosphere. -
Page 8: Installation
Installation Dimensions: BRA603SCB BRA603SCB-F... - Page 9 Installation: Warning: Check that the installation complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating plate inside the range hood. When installing the range hood, make sure you adhere to the minimum and maximum distances from the range hood base to the cooktop hob surface.
- Page 10 Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal line where the hood base will be. NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of 600mm &...
- Page 11 2. After confirming th e installation height and location of the installation holes, drill 9 holes on the wall, insert the dry wall anchors plugs, use 5 screws (ST4*40mm) to fix the hood mount bracket and the upper decoration chimney bracket on the wall, pay attention to ensure the level of the fuselage.
- Page 12 5. Use 2 screws (ST4*8mm) to fix the lower decorative chimney bracket on the lower chimney, and pay attention to ensure that the upper decorative chimney can be freely telescoped inside. 6. Then install the decorative chimney on the rangehood, fix the outer decorative chimney on t he rangehood with 2 screws (ST4*8mm) and fix it o n the wall with 2 screws(ST4*40mm), and pull the foil pipe out of the room.
-
Page 13: Start Using Your Rangehood
Charcoal filter Installation Install the charcoal filter into the range hood, the specific installation method is shown in the following iamge. Start Using Your Range Hood Push button Off button It’s used for turning off the fan. Low Speed button It’s used for Ventilation on the kitchen. -
Page 14: Maintenance And Cleaning
Maintenance and cleaning Caution: • Before maintenance or cleaning is carried out, the - By hand: Soak in warm water and a neutral washing up range hood should be disconnected from the main liquid. For stubborn grease stains use a soft nylon brush or power supply. -
Page 15: Warranty
Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. - Page 16 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
