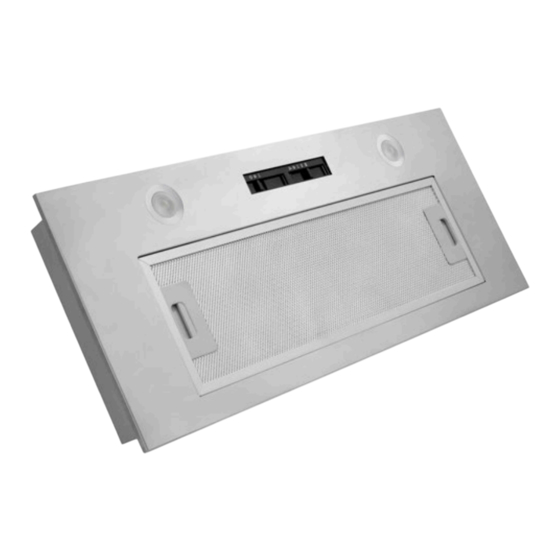

52cm & 75cm Undermount Rangehood
Model No. BRA52UX -
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: Australia 1300 373 199
For Warranty and technical queries: New Zealand 0800 764 912
www.belliniappliances.com.au
USER MANUAL
BRA52UX-F
BRA75UX -
BRA75UX-F
FINELINE: 81476
FINELINE: 133506
V9 January 2023
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bellini BRA52UX-F
Summary of Contents for Bellini BRA52UX-F

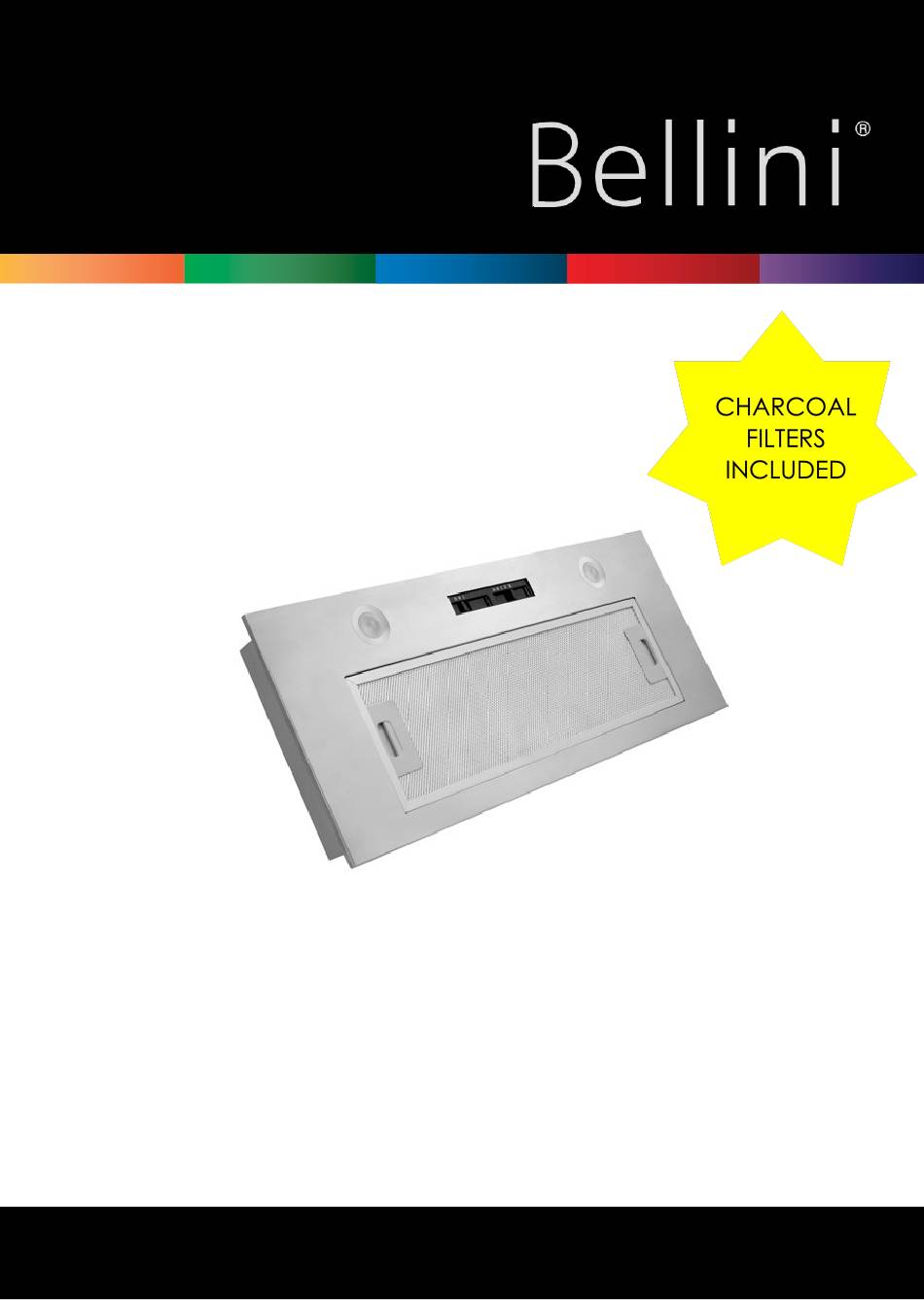

- Page 1 USER MANUAL 52cm & 75cm Undermount Rangehood Model No. BRA52UX - FINELINE: 81476 BRA52UX-F BRA75UX - FINELINE: 133506 BRA75UX-F GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: Australia 1300 373 199 For Warranty and technical queries: New Zealand 0800 764 912 V9 January 2023 www.belliniappliances.com.au...
- Page 2 Thank you. Thank you for choosing Bellini Appliances. This Bellini appliance carry a 3 year in home warranty, be sure to retain your user manual and receipt. For all warranty and technical queries please phone: Australia 1300 373 199 New Zealand 0800 764 912...
-
Page 3: Table Of Contents
Contents Safety Instructions------------------------------ 2 Installation---------------------------------------- 5 Start Using your Appliance-------------------- 8 Troubleshooting--------------------------------- 8 Maintenance & Cleaning --------------------- 9 Environment Protection----------------------- 12 Warranty------------------------------------------ 13... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS hismanualexplainstheproperinstallationanduseofyourrangehood,pleasereadit carefullybeforeusingevenifyouarefamiliarwiththeproduct.Themanualshouldbe keptinasafeplaceforfuturereference. Nevertodo: Alwaystodo: o not try to use the rangehood without mportant! Always switch off the electricity ● ● the grease filters or if the filters are supply at the mains during installation and excessively greasy! maintenance such as light bulb replacement. o not install above a cooktop with a ●... - Page 5 Alwaystodo: Alwaystodo: lways put lids on pots and pans when aution: The appliance and its accessible ● ● cooking on a gas cooker. parts can become hot during operation. Be careful to avoid touching the heating hen in extraction mode, air in the room ●...
- Page 6 PRODUCT DESCRIPTION Accessories bag Description Picture v-flap(150) 1 pair ST4*18mm screws Installation & User Manual INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the rangehood does not have an assembled V-flap 1, you should mount the half- parts to its body.The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations.
-
Page 7: Installation
INSTALLATION INSTALLATION If you have an outlet to the outside, your rangehood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm) - Page 8 1. Before installation ensure that the cupboard is structurally sound and is capable of carrying the weight of the rangehood and that the rangehood distance between a cooktop and underneath the rangehood must be minimum of 600mm to a cooktop and a maximum height of 750mm.
- Page 9 2. The minimum requirement for the height of the inside cupboard is suggested 384mm to fit the undermount rangehood. Make sure the distance between the edge of the cut out hole and the back of the cupboard is at least 25mm and at least 25mm from the other cut out edges front and sides.
-
Page 10: Start Using Your Appliance
Note:The expansion pipe is not included in the product. WARNING: • For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. • Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. -
Page 11: Maintenance & Cleaning
Replace blubs as per this Lights not working Broken or faulty bulbs. instruction. The distance between the Refit the rangehood to the Insufficient suction rangehood and the gas top correct distance. is too far. The rangehood The fixing screw is not tight Tighten the hanging screw and inclines enough. - Page 12 GREASE MESH FILTERS The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a mild detergent and then brush it gently with a soft brush. Please do not apply too much pressure so as to avoid any damage to it. (Leave to dry naturally out of direct sun light). Filters should be washed separately to crockery and kitchen utensils.
- Page 13 BULB REPLACEMENT Important : The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands.
-
Page 14: Environment Protection
ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. -
Page 15: Warranty
Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. - Page 16 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
