啊哈

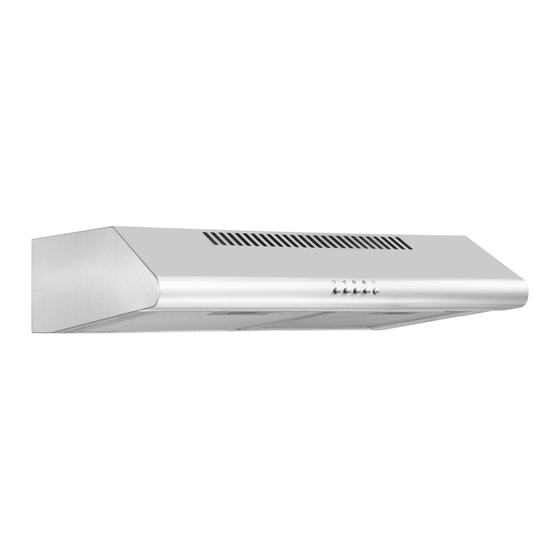

Slim Line Range Hood
Installation and User manual
Content
Safety instructions---------------------------------- 2
Product description--------------------------------- 4
Operation mode-------------------------------------- 5
Installation--------------------------------------------- 6
Start using the range hood------------------------ 10
Maintenance and cleaning-------------------------11
Warranty------------------------------------------------ 12
For warranty service call 1300 373 199(Australia)
or 0508 123108(New Zealand) to connect you to
the nearest authorised service centre
20150318 issue 2
BRA603SX
BRA903SX
BRA603SX-F
BRA903SX-F
BRA603SW
BRA903SW
BRA603SW-F
BRA903SW-F
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bellini BRA603SX
Summary of Contents for Bellini BRA603SX
-
Page 1: Table Of Contents
Product description--------------------------------- 4 Operation mode-------------------------------------- 5 Installation--------------------------------------------- 6 Start using the range hood------------------------ 10 Maintenance and cleaning-------------------------11 Warranty------------------------------------------------ 12 BRA603SX BRA903SX For warranty service call 1300 373 199(Australia) BRA603SX-F or 0508 123108(New Zealand) to connect you to BRA903SX-F the nearest authorised service centre... -
Page 2: Safety Instructions
Safety Instructions This manual explains the proper installation and use of your range hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. Never to do: ... - Page 3 Safety Instructions Never to do: Always to do: This range hood cannot be installed for outdoor use. Attention should be given to ensure that any It is prohibited to fit the range hood over a solid fuel applicable regulations concerning discharge stove of exhaust air are fulfilled.
-
Page 4: Product Description
Outlet cover *2pcs for 60cm, 3 pcs for 90cm range hood Technical data: Model Description Motor Width Others BRA603SX 60cm slim line stainless BRA603SX-F steel range hood Power supply: 220 – 240v, 50Hz 2x100W 600mm BRA603SW 60cm slim line painted... -
Page 5: Operation Mode
Operation Mode Your range hood can be operated in two optional modes, choose the mode suitable for your kitchen before installation. Air Recirculation traction For air recirculation For air ex mode, a mode, charcoal filter ducting kit is required, the must air is drawn in and cleaned eliminate... -
Page 6: Installation
Installation Dimensions: *Width data please refer to page 4 Installation: Warning: Check that the installation complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating plate inside the range hood. - Page 7 Failure to observe these basic instructions will reduce the performance and increase noise levels of the range hood Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant. We provide two options to install your range hood, against wall (method A) or into cabinet (method B), choose what kind of method you want and then follow up corresponding instruction.
- Page 8 Hammer dry wall anchor plugs into holes. Insert 2pcs Screw(ST4x30mm) into the 2 holes at the top and fasten, hang the range hood onto the two screws, screw another 2pcs Screw(ST4x30mm) into the 2 holes at the bottom inside the range hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards Fit the outlet and flexible exhaust pipe* on top of range hood body**...
- Page 9 B: Install into cabinet According to below drawing to determine where want to place the range hood, and drill 4 holes with 4mm diameter at the hanging board of your cabinet. 545mm(60cm hood), 842mm(90cm hood) 225mm 410mm 240mm Fit the outlet on top of range hood body. Install the range hood onto the bottom of cabinet board, insert 4pcs Screw(M4x35mm) with the nuts and washers into the holes and fasten.
-
Page 10: Start Using The Range Hood
Start Using Your Range Hood Push button 0 Off button It’s used for turning off the fan. Low Speed button It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam. Medium Speed button Airflow speed is ideally for ventilation in standard cooking operation. -
Page 11: Maintenance And Cleaning
Maintenance and cleaning Caution: • Before maintenance or cleaning is carried out, the GREASE MESH FILTERS range hood should be disconnected from the main The mesh filters can be cleaned either by hand or in power supply. Ensure that the range hood is switched the dishwasher. -
Page 12: Warranty
Consumer until the expiry of one (1) years (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. - Page 13 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
