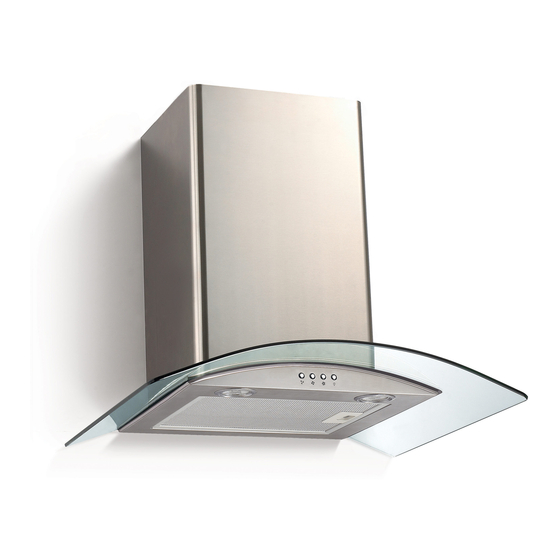

Bellini BR603GCX Installation And User Manual

Curve glass canopy

Hide thumbs

Quick Links

Curve Glass Canopy

Range Hood

Installation and User manual

Content

Safety instructions----------------------------------------1

Product description---------------------------------------3

Operation mode-------------------------------------------4

Installation---------------------------------------------------5

Start using the range hood------------------------------10

Maintenance and cleaning------------------------------11

Warranty-----------------------------------------------------12

For warranty service call 1300 373 199(Australia)

or 0508 123108(New Zealand) to connect you to

the nearest authorised service centre

20111101 Issue 4

BR603GCX

BR903GCX

Need help?

Do you have a question about the BR603GCX and is the answer not in the manual?

Questions and answers

Summary of Contents for Bellini BR603GCX

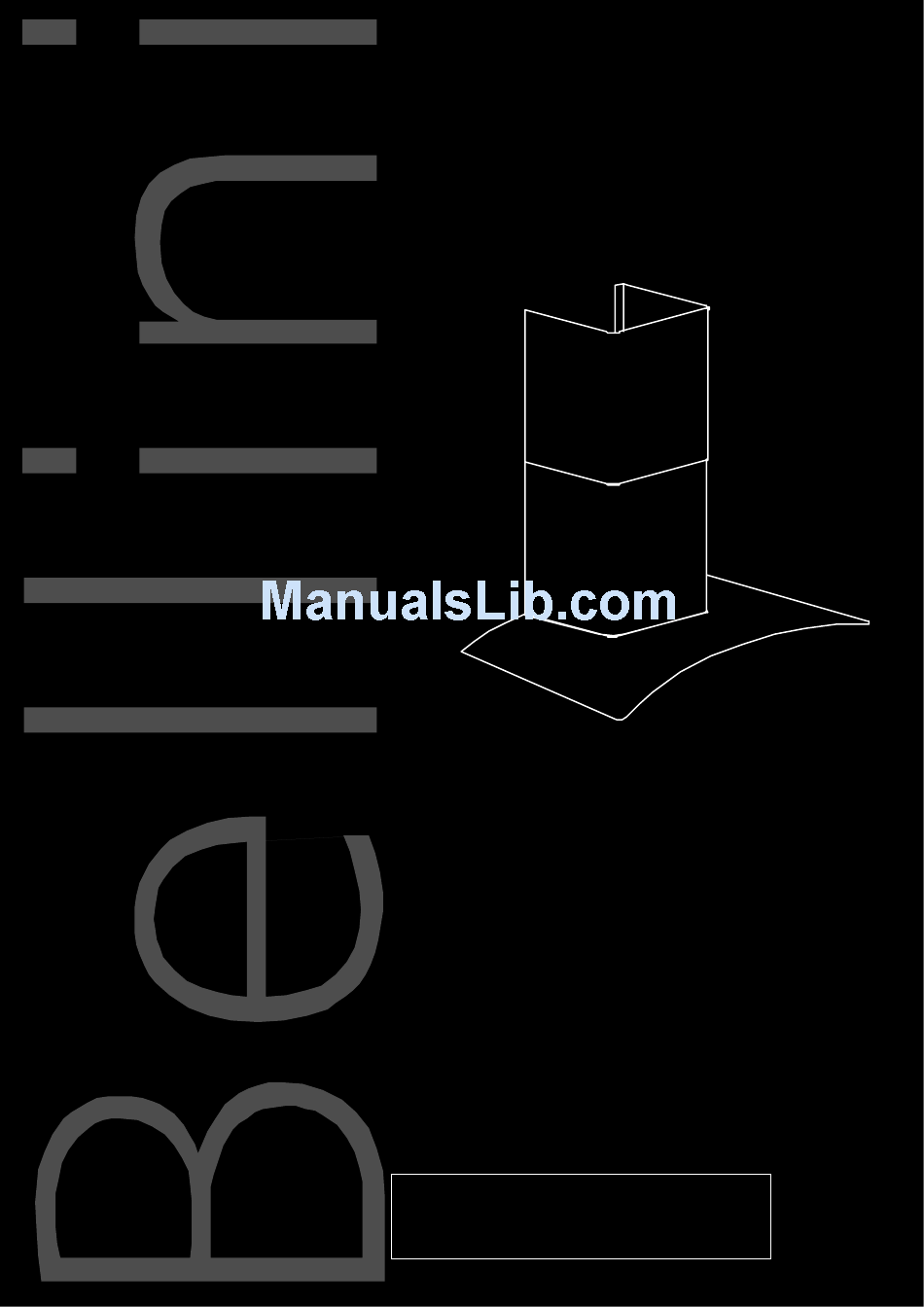

Page 1: Table Of Contents
Installation and User manual Content Safety instructions----------------------------------------1 Product description---------------------------------------3 Operation mode-------------------------------------------4 Installation---------------------------------------------------5 Start using the range hood------------------------------10 Maintenance and cleaning------------------------------11 Warranty-----------------------------------------------------12 For warranty service call 1300 373 199(Australia) or 0508 123108(New Zealand) to connect you to BR603GCX the nearest authorised service centre BR903GCX...
Page 2: Safety Instructions
Safety instructions This manual explains the proper installation and use of your range hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. Never to do: Always to do: This appliance is not intended for use by persons...
Page 3 Safety instructions Never to do: Always to do: This range hood cannot be installed for outdoor use. Attention should be given to ensure that any It is prohibited to fit the range hood over a solid fuel applicable regulations concerning discharge stove of exhaust air are fulfilled.
Page 4: Product Description
Product description Accessories bag Description Picture *BR903GCS only User Manual 1:1 installation guide template Upper decorative chimney bracket Lower decorative chimney bracket Hood mount bracket Outlet( diameter 150mm) Dry wall anchors plugs Screw(ST4x8mm) Screw(ST4x40mm) Screw(ST4x30mm) Screw(4x22mm) Decorative ring* Rubber insert* Component list: Technical data: 1.
Page 5: Operation Mode
Operation Mode Your range hood can be operated in two optional modes, choose the mode suitable for your kitchen before installation. Air Exaction For air exaction mode, a ducting kit is required, the air is To outside drawn in and cleaned by the grease filters and directed outside.
Page 6: Installation
Installation Dimensions: BR603GCX BR903GCX Installation: Warning: Check that the installation complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating plate inside the range hood.
Page 7 1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal line where the hood base will be. NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of 600mm &...
Page 8 5. Fit the flexible exhaust pipe onto outlet. * If choose air extraction mode, please install the flexible exhaust pipe; if choose air recirculation mode, no need to install the flexible exhaust pipe, please skip this step and go to step 6 directly 6.
Page 9 14. Carefully put the glass according to the arrow direction onto the cooker hood, and then fasten the screws+ decorative ring + rubber washer to fix the glass. * for BR603GCX, glass already installed on main body so skip this step but go to next step directly.
Page 10 15. Extend the upper decorative chimney to desired height and fix it with the upper decorative chimney bracket by 2pcs ST4x8mm screws. 16. Remove all blue protective film on chimney and cooker hood, the installation is now finished.
Page 11: Start Using The Range Hood
Start using your range hood Lamp – Turn on/off light Speed –select speed to suit cooking conditions Low – light frying/boiling. Depress this button to enter into low speed and again to turn off motor. Medium – frying/wok cooking/heavy boiling. Depress this button to enter into medium speed and again to turn off motor High –...
Page 12: Maintenance And Cleaning
Maintenance and cleaning Caution: GREASE MESH FILTERS • Before maintenance or cleaning is carried out, the The mesh filters can be cleaned either by hand or in range hood should be disconnected from the main the dishwasher. After cleaning ensure that the filters power supply.
Page 13: Warranty
6. The Company (and any company related to the Company) will not be liable for any special, The original purchaser of this Bellini product is incidental or consequential damages or for loss, provided with the following warranty, subject to the damage or expense or for personal injury or loss or following warranty conditions.
Page 14 Purchased from: NOTE: Consistent with our continuing product Co. Name: development policy, improvements may have Address: been made which render the contents of this Date of Purchase: packaging slightly different to that shown. FOR WARRANTY SERVICE CALL 1300 373 199(AUSTRALIA) OR 0508 123108(NEW ZEALAND) TO CONNECT YOU TO THE NEAREST AUTHORISED SERVICE CENTRE NOTES:...
