INSTALLATION & OPERATION
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au

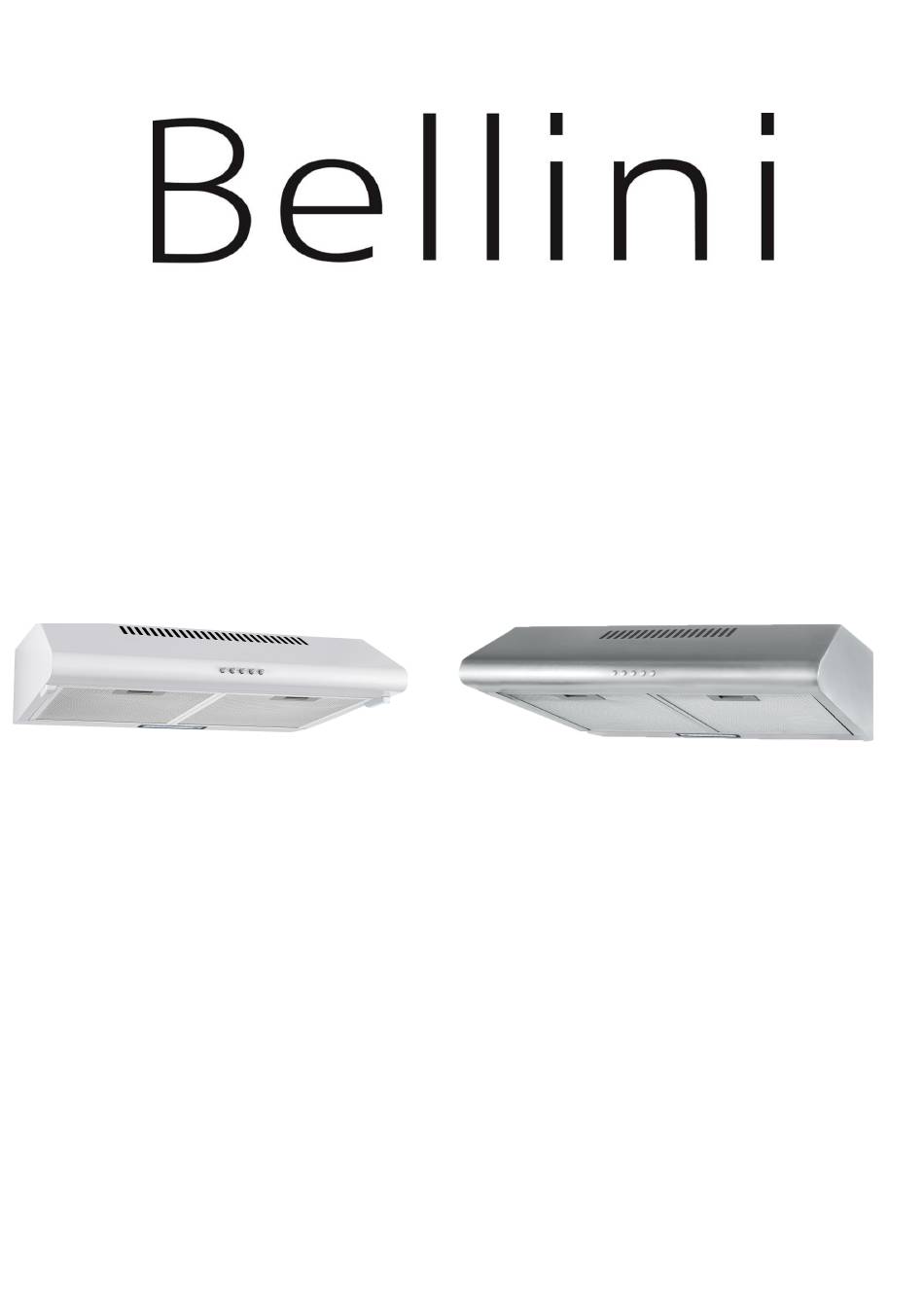

Model: BRA603SX2-F FN195634 BRA603SW2-F FN195633 60cm Slim Line Range hood
INSTRUCTIONS
60cm Slim Line Range hood
Model No.
BRA603SX2
BRA603SX2-F
BRA603SW2
BRA603SW2-F
FINELINE: 195634
FINELINE: 195633
V3 Sep20
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bellini BRA603SX2
Summary of Contents for Bellini BRA603SX2
- Page 1 BRA603SW2-F FINELINE: 195633 V3 Sep20 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au Model: BRA603SX2-F FN195634 BRA603SW2-F FN195633 60cm Slim Line Range hood...
- Page 2 For all warranty and technical queries please contact 1300 373 199 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au Model: BRA603SX2-F FN195634 BRA603SW2-F FN195633 60cm Slim Line Range hood...
-
Page 3: Table Of Contents
Maintenance and cleaning -------------------11 Warranty------------------------------------------12 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au Model: BRA603SX2-F FN195634 BRA603SW2-F FN195633 60cm Slim Line Range hood... -
Page 4: Safety Instructions
In case of failure, only the Authorised Technical Service may repair this range hood. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only. Never to do:... - Page 5 Safety Instructions Never to do: Always to do: This range hood cannot be installed for outdoor use. Attention should be given to ensure that any It is prohibited to fit the range hood over a solid fuel applicable regulations concerning discharge ...
-
Page 6: Product Description
3. Grease mesh filters* Outlet cover *2pcs for 60cm Technical data: Model Description Motor Width Others BRA603SX2 60cm slim line stainless Power supply: 220 – 240v, 50Hz steel range hood BRA603SX2-F Lights: 1x1.5W LED Light 2x100W 600mm BRA603SW2 60cm slim line painted Length of power cord: 1.5m... -
Page 7: Operation
Operation Mode Your range hood can be operated in two optional modes, choose the mode suitable for your kitchen before installation. Air Recirculation For air recirculation For air ex ̀ . mode, a traction mode, charcoal filter ducting kit is required, the is a must to eliminate air is drawn in and cleaned cooking smells. -
Page 8: Installation
Installation Dimensions: *Width data please refer to page 4 Installation: Warning: Check that the installation complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating plate inside the range hood. - Page 9 Failure to observe these basic instructions will reduce the performance and increase noise levels of the range hood Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant. We provide two options to install your range hood, against wall (method A) or into cabinet (method B), choose what kind of method you want and then follow up corresponding instruction.
- Page 10 Hammer dry wall anchor plugs into holes. Insert 2pcs Screw(ST4x30mm) into the 2 holes at the top and fasten, hang the range hood onto the two screws, screw another 2pcs Screw(ST4x30mm) into the 2 holes at the bottom inside the range hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards Fit the outlet and flexible exhaust pipe* on top of range hood body**...
- Page 11 B: Install into cabinet According to below drawing to determine where want to place the range hood, and drill 4 holes with 4mm diameter at the hanging board of your cabinet. 545mm(60cm hood) 225mm 410mm 240mm Fit the outlet on top of range hood body. Install the range hood onto the bottom of cabinet board, insert 4pcs Screw(ST4x30mm) with the nuts and washers into the holes and fasten.
-
Page 12: Start Using Your Range Hood
Start Using Your Range Hood Push button Off button It’s used for turning off the fan. Low Speed button It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam. Medium Speed button Airflow speed is ideally for ventilation in standard cooking operation. -
Page 13: Maintenance And Cleaning
Maintenance and cleaning Caution: GREASE MESH FILTERS • Before maintenance or cleaning is carried out, the The mesh filters can be cleaned either by hand or in range hood should be disconnected from the main the dishwasher. After cleaning ensure that the filters power supply. -
Page 14: Warranty
Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. - Page 15 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
