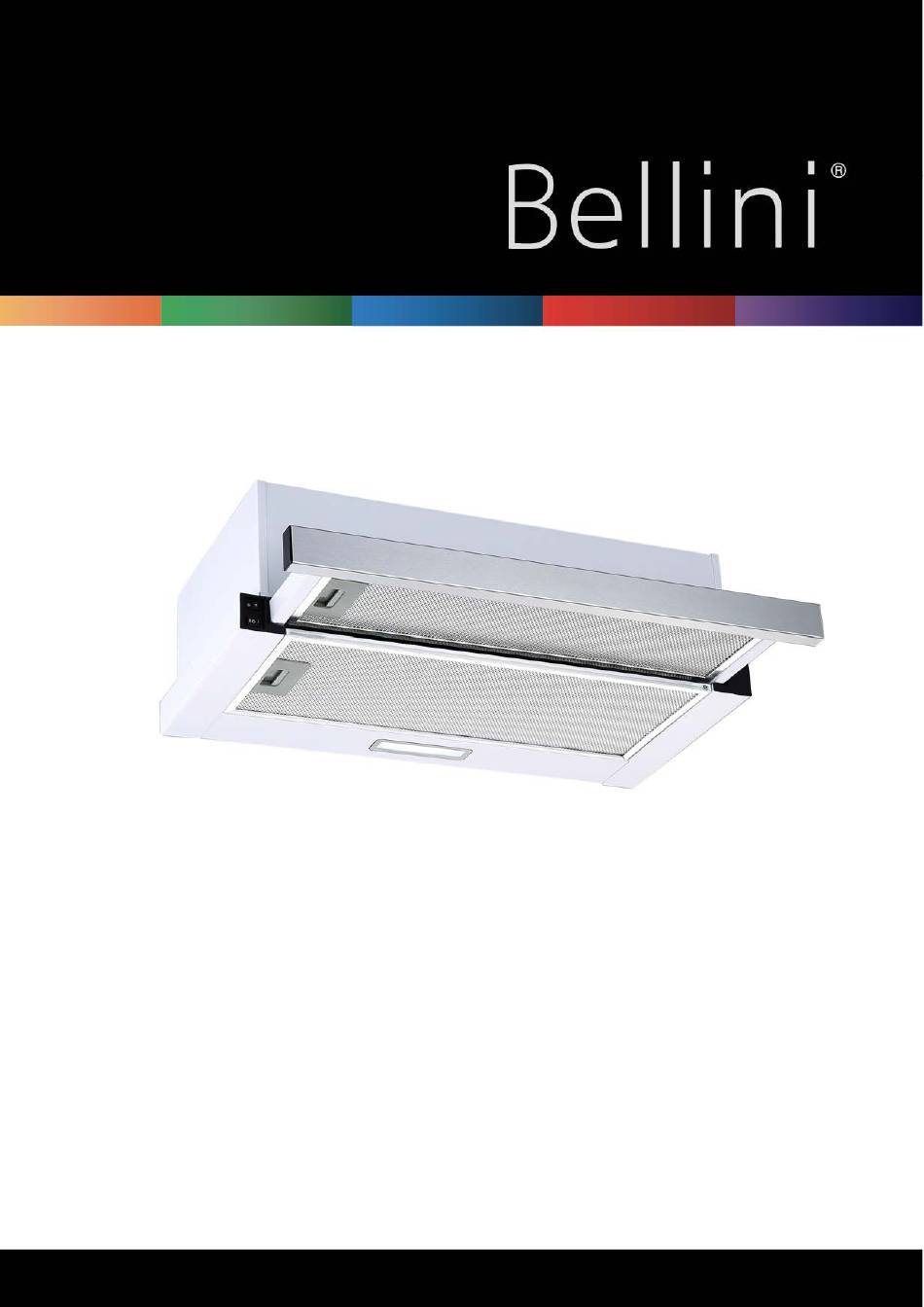

OPERATION INSTRUCTIONS
60cm White Slide Out Rangehood
Model No. BRA62SWP
BRA62SWP-F
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ
V4 Sep 2020
www.belliniappliances.com.au Model: BRA62SWP-F FINELINE: 0081475 60cm White Slide Out
Rangehood
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bellini BRA62SWP
Summary of Contents for Bellini BRA62SWP
- Page 1 Model No. BRA62SWP BRA62SWP-F GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ V4 Sep 2020 www.belliniappliances.com.au Model: BRA62SWP-F FINELINE: 0081475 60cm White Slide Out Rangehood...
- Page 2 Bellini prides itself on ‘affordable living’ making sure there is not compromise in your favourite room..The Kitchen. All Bellini appliances carry a 3 year In Home warranty, be sure to retain your installation and user manual and receipt. For all warranty and technical queries please phone:...
- Page 3 Start using your appliance ......... 5-6 Maintenance ............7-8 Warranty .............. 9-10 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust www.belliniappliances.com.au Model: BRA62SWP-F Fineline 0081475 60cm White Slide out Rangehood...
- Page 4 In case of failure, only the Authorised Technical Servicemay repair this range hood. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only. Never to do:...
- Page 5 Safety Instructions Never to do: Always to do: • This range hood cannot be installed for outdoor use. • Attention should be given to ensure that • It is prohibited to fit the range hood over a solid any applicable regulations concerning discharge of exhaust air are fulfilled.
- Page 6 Product Description Accessories bag Description Picture Installation & User Manual Metal plate L bracket Outlet( diameter 120mm) Dry wall anchors plugs Screw (M4x10mm) Screw(ST4x30mm) Screw (ST3x12mm)* Washer* Screw (M4x35mm)* *Used in installation method B Component list: Technical data: 1. L bracket(used installation A method) 2.
- Page 7 Operation Mode Your range hood can only be operated in ducting mode (Air Extraction). Air Extraction For air extraction mode, a ducting kit is required, the air is drawn in and cleaned by the grease filters and directed outside. Ducting must be vented to outside atmosphere.
- Page 8 Installation Installation: Warning: Check that the installation complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating plate inside the range hood. When installing the range hood, make sure you adhere to the minimum and maximum distances from the range hood base to the cooktop hob surface.
- Page 9 A: Install against wall Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal line where the hood base will be. NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of 600mm &...
- Page 10 Fit the outlet and flexible exhaust pipe on top of range hood body. Hang on the range hood, fasten 2pcs Screw(ST4x30mm) and L bracket onto two higher holes(with distance to horizontal line 516mm), and then fasten 2pcs Screw (M4x10mm) and L bracket onto body. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards B: Install into cabinet...
- Page 11 Fit the outlet on top of range hood body. Install the range hood onto the bottom of cabinet board, fasten 6pcs Screw (M4x35mm) with washers. If gap is there between range hood back and cabinet end, fasten 2pcs Screw (ST3x12mm) and metal plate onto body to fill it. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards Installation of charcoal filters...
- Page 12 Start Using Your Range Rocker switch Rocker switch 1. Insert the power plug into the socket. 2. Push switch ① to" " , the lamp will be on; push switch ① to “0”, the lamp will be off. 3. Push the switch ② into “I、II”, the motor will be on “low、high” two speeds, push into “0”, the motor will be off.
- Page 13 Maintenance and cleaning GREASE MESH FILTERS Caution: The mesh filters can be cleaned by hand.Soak them • Before maintenance or cleaning is carried out, for about 3 minute in water with a mild detergent and the range hood should be disconnected from then brush it gently with a soft brush.
- Page 14 LED LIGHT ASSEMBLY REPLACEMENT Important: The light must be replaced by the manufacturer, its service agent or similarly qualified persons. Always switch electricity supply before carrying out any operations on the appliance. When handling the light, make sure it has completely cooled down before any direct contact to hands.
- Page 15 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company’s specifications. The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which is installed in a domestic household area.
- Page 16 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
