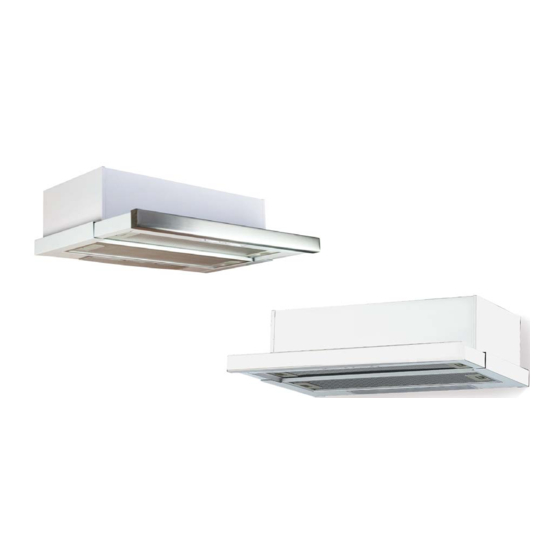

Model: CRHR6W01-F FINELINE: 5102737 AUS Only BRA903SLX-F FINELINE: 5103717 AUS & NZ 60/90cm Retractable Range hood

INSTALLATION & OPERATION

INSTRUCTIONS

60/90cm Retractable Range hood

Model No.

CRHR6W01

CRHR6W01-F

BRA903SLX

BRA903SLX-F

**Air Extraction Only

FINELINE: 5102737 AUS Only

FINELINE: 5103717 AUS & NZ

V15 Sep20

Table of Contents

Need help?

Do you have a question about the BRA903SLX and is the answer not in the manual?

Questions and answers

Summary of Contents for Bellini BRA903SLX

Page 1 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au Model: CRHR6W01-F FINELINE: 5102737 AUS Only BRA903SLX-F FINELINE: 5103717 AUS & NZ 60/90cm Retractable Range hood...
Page 2 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au Model: CRHR6W01-F FINELINE: 5102737 AUS Only BRA903SLX-F FINELINE: 5103717 AUS & NZ 60/90cm Retractable Range hood...
Page 3: Table Of Contents
GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au Model: CRHR6W01-F FINELINE: 5102737 AUS Only BRA903SLX-F FINELINE: 5103717 AUS & NZ 60/90cm Retractable Range hood...
Page 4: Safety Instructions
In case of failure, only the Authorised Technical Service may repair this range hood. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only. Never to do:...
Page 5 Safety Instructions Never to do: Always to do: This range hood cannot be installed for outdoor use. Attention should be given to ensure that any • • It is prohibited to fit the range hood over a solid fuel applicable regulations concerning discharge •...
Page 6: Product Description
Product Description Accessories bag Description Picture Installation & User Manual Metal plate L bracket Outlet( diameter 120mm) Dry wall anchors plugs Screw (M4x10mm) Screw(ST4x30mm) Screw (ST3x12mm)* Washer* Screw (M4x35mm)* *Used in installation method B Component list: Technical data: 1. L bracket(used installation A method) 2.
Page 7: Operation
Operation Mode Your range hood can only be operated in ducting mode (Air Extraction). Air Extraction For this mode, a ducting kit is required, the air is drawn in and cleaned by the grease filters and directed outside. Ducting must be vented to outside atmosphere.
Page 8: Installation
Installation CRHR6W01, CRHR6W01-F Dimensions: BRA903SLX, BRA903SLX-F Installation: Warning: Check that the installatio n complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains vo ltage corresponds to the voltage on the applian ce rating plate inside the range hood.
Page 9 *If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation Drill 4 holes of 8mm diameter on the wall according to below drawing. Vertical centre line 516mm 496mm For CRHR6W01& 795mm For BRA903SLX 190mm 152mm Horizontal line Hood base Hammer dry wall anchor plugs into holes.
Page 10 Fit the outlet and flexible exhaust pipe on top of range hood body. Hang on the range hood, fasten 2pcs Screw(ST4x30mm) and L bracket onto two higher holes(with distance to horizontal line (516mm CRHR6W01-F & BRA903SLX-F ), and then fasten 2pcs Screw (M4x10mm) and L bracket onto body.
Page 11 Fit the outlet on top of range hood body. Install the range hood onto the bottom of cabinet board, fasten 6pcs Screw (M4x35mm) with washers. If gap is there between range hood back and cabinet end, fasten 2pcs Screw (ST3x12mm) and metal plate onto body to fill it.
Page 12: Start Using Your Range Hood
Start Using Your Range Hood ○ ○ Speed –select speed to suit cooking conditions Lamp – Turn on/off light “O” – to switch off motor “O” – to switch off light Low( )– light frying/boiling “ ” – to switch on light Medium( ) –...
Page 13: Maintenance And Cleaning
Maintenance and cleaning Caution: • Before maintenance or cleaning is carried out, the GREASE MESH FILTERS range hood should be disconnected from the main The mesh filters can be cleaned either by hand or in power supply. Ensure that the range hood is switched the dishwasher.
Page 14: Warranty
Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
Page 15 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
