Icon Process Controls truflo UltraFlo H2O Series Operating Manual page 12

UFM-H2O Series
Ultrasonic Flow Meter

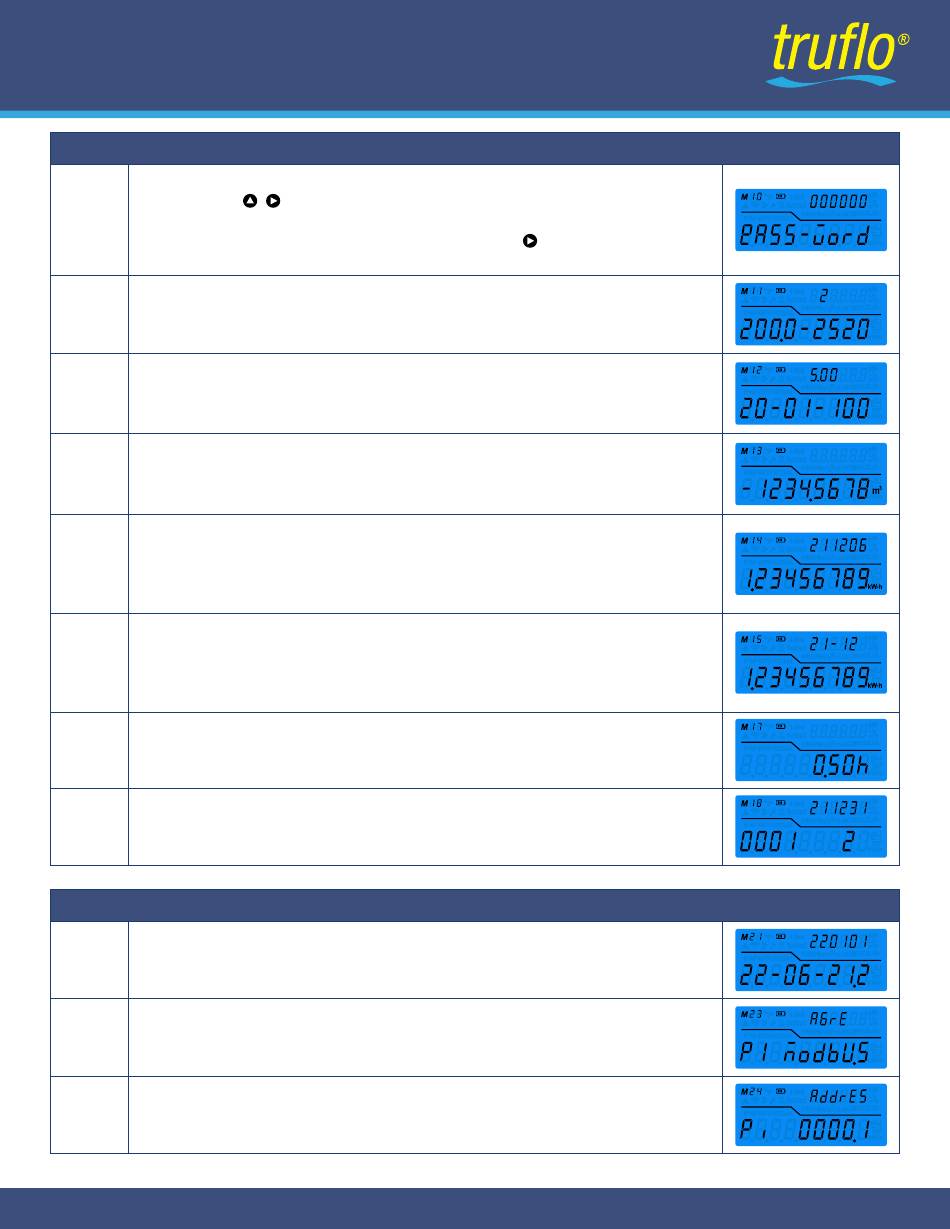

M-1 Pipeline Parameters & Historical Query
Enter the Password to Enter the Submenu
After pressing "
M10 password:
"1111" and confirm to enter the main menu cycle. Press the "
menu, and enter the submenu of the main menu after confirmation.
Displays the number of sound channels, inner diameter, distance between probes
M11
First Line : number of channels
Second Row : Inner diameter / Probe spacing
Display sampling time, damping coefficient, angle coefficient
First Line : The actual sampling Interval time
M12
Second Line : Damping coefficient / set sampling interval time / angle coefficient
Shows Negative Cumulative Flow
M13
Second Line : Display Negative Cumulative Flow
Query Daily Net Cumulative Amount
First Line : Display the query Year - Month - Day
M14
Second Line : Display the Net Cumulative Amount of the Day
You can turn the page to check the daily net cumulative amount of the previous 32 days.
Query Monthly Net Cumulative Amount
First Line : display the query Year - Month
M15
Second Line : display the net cumulative amount of the current month
You can turn the page to check the net accumulation in the previous 32 months.
Shows Total Working Hours
M17
Displays the total working hours for normal metering.
Displays Production Date, Calibration Job Number & Instrument Grade
M18
First Line : Display the Production Date
Second Line : Display the Calibration job Number / Instrument Level
M-2 Communication Settings
Set Date, Time, Week
First Line : Hourminute - Second
M21
Second Line : year - month - day / week
Set RS485 Letter of Agreement
All communication protocols are adaptive, no need to set.
M23
Set RS485 Contact Address
M24
Set Mailing Address Code
(Battery Operated)
" to exit from any submenu in the M-0 main menu , enter the
" key to select the main
