Detailed Menu - Icon Process Controls truflo UltraFlo H2O Series Operating Manual

UFM-H2O Series
Ultrasonic Flow Meter

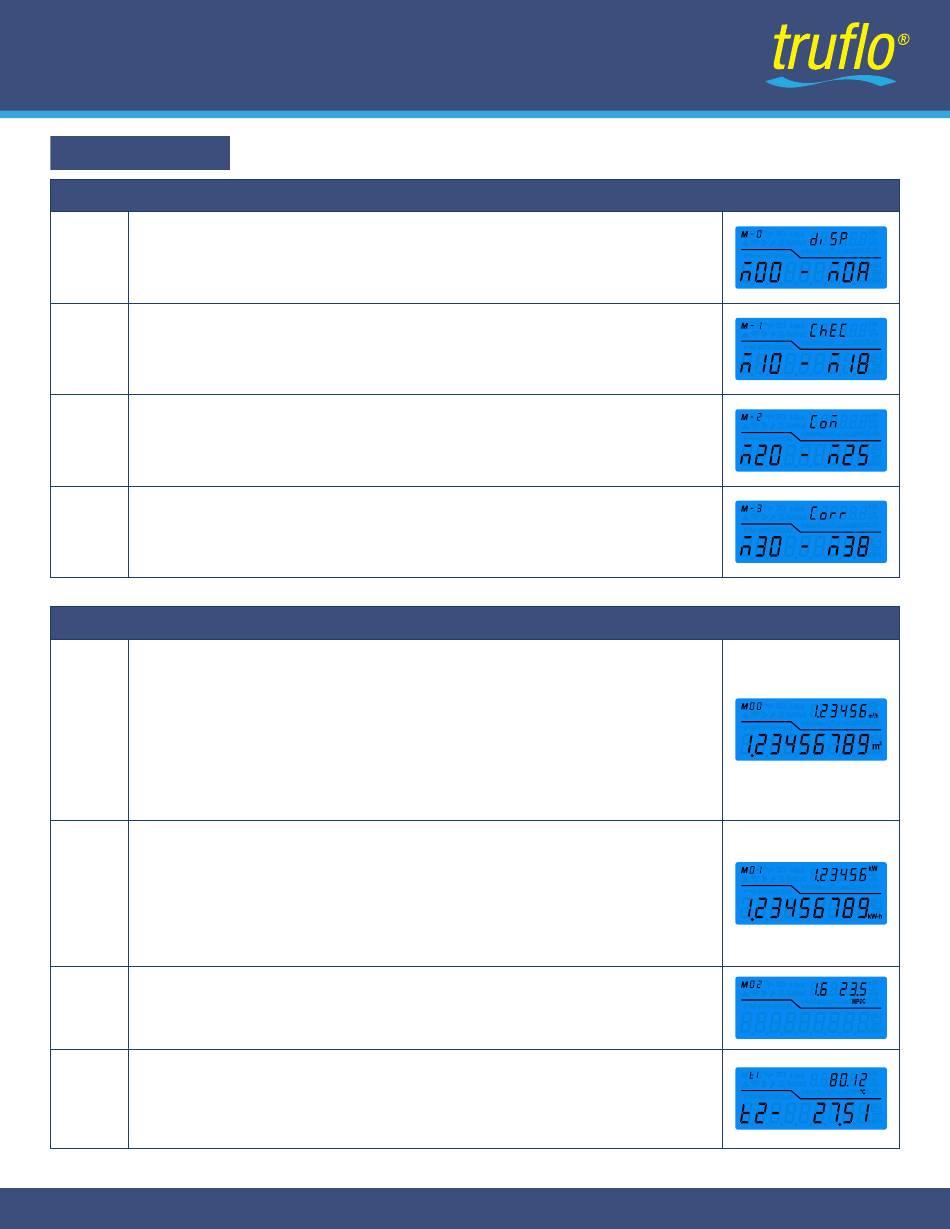

Detailed Menu

Main Menu
M-0 Measured value display and working status DISP
M-1 Pipeline parameters and history query Chec
M-2 Communication Settings Com
M-3 Flow, heat setting and correction Corr
M-0 Measured Value Display and Working Status
Displays instantaneous flow and positive cumulative flow (the default display
window of the water meter)
The First Row : Instantaneous Flow
The Second Row : Positive Cumulative flow
M00
The water meter displays the window by default, and it will automatically jump to this
window if there is no operation for two minutes.
The position of the decimal point of the unit and cumulative quantity is modified and set
with a special parameter setting software.
Displays instantaneous heat and positive / negative cumulative heat (heat meter
default display window, water meter does not have this window)
The First Row : Instantaneous Heat
M01
The Second Row : Positive / Negative Cumulative Heat
The heat meter displays the window by default, and it will automatically jump to this
window if there is no operation for two minutes.
Displays water pressure and water temperature (multi-function water meter displays
this window)
M02
Line 1: Water pressure / water temperature
Displays water supply temperature T1 and return water temperature T2 (heat meter
display window, water meter does not have this window)
M03
First Line : supply water temperature T1
The second Line : return water temperature T2
(Battery Operated)
