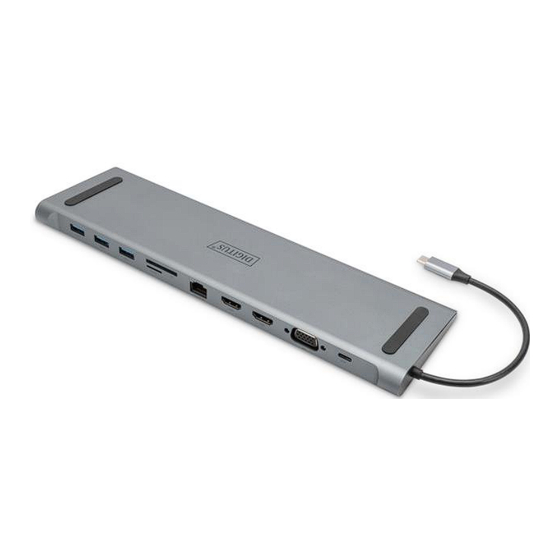

11-port usb-c dock, grey, 2x hdmi, vga

Advertisement

11-Port USB-C Dock, Grey,
2x HDMI, VGA
Quick Installation Guide
DA-70898

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-70898 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus DA-70898

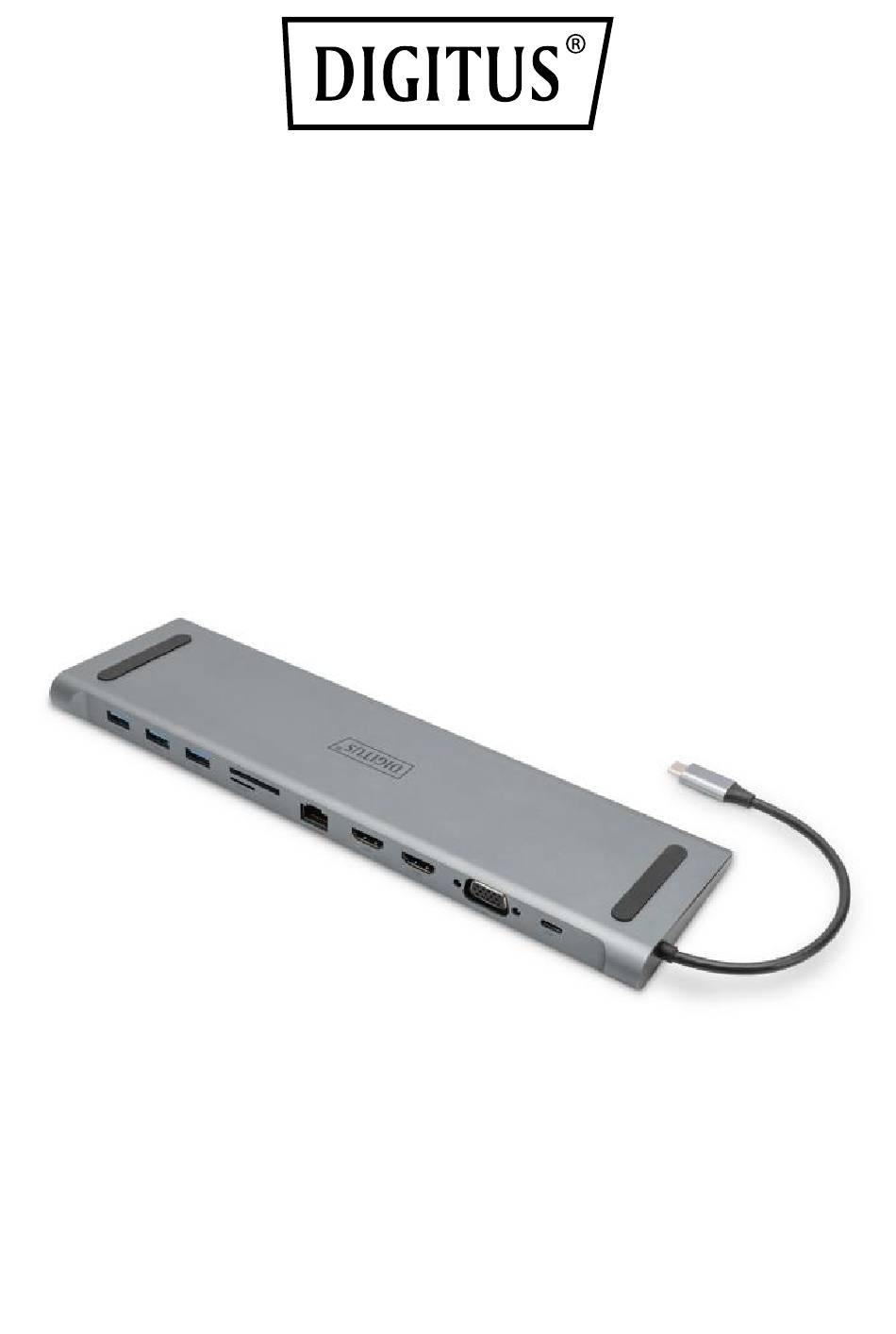

  • Page 1 11-Port USB-C Dock, Grey, 2x HDMI, VGA Quick Installation Guide DA-70898...
  • Page 2 Product Introduction The multifunctional DIGITUS® docking station has everything you need to create a fully equipped workplace. Via the 2x HDMI® and VGA port, you can extend your desktop to 3 additional monitors or connect projectors / TV devices. In combination with your existing screen, this allows you to clone your desktop on up to 4 displays or extend on up to 3 displays.
  • Page 3 2. Features 2 x HDMI® connection: 4K/30 Hz (3840 x 2160p) 1 x VGA connection: Full HD (1920 x 1080, 60 Hz) Triple display support - connect up to 3 displays simultaneously Supports SST and MST Mode (Single Stream Transport mode / Multi Stream Transport mode) Three simultaneous video output signals - resolution: SST / MST mode max.
  • Page 4 22. Not all USB-C™ ports support all functions of the USB Type-C™ standard. Make sure that your notebook’s USB-C™ port supports the DisplayPort Alternate Mode (DP Alt Mode) as well as USB Power Delivery (PD). 3. Package Contents  1x USB-C™ Docking Station, 12-Port ...
  • Page 5 1*LAN: 10/100/1000Mbps 1*TYPE-C/F: Only support PD 3.0 charging 100W Max 1*C/F(Data)Output Voltage: 5V, Date transmission Speed: 5Gbps (depend on other factors) 1*Audio Support audio input 1. MacBook2015/2016/2017, MacBook Pro2016/2017 2. DELL XPS13/15 3. HP Spectre X360 4. Google Chromebook Pixel Support the brand 5.
  • Page 6 5. Connection Diagram audio connection SD card & MicroSD USB 3.0 Ethernet interface HDMI VGA connection USB-C™ connection USB-C™ plug...
  • Page 7 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
