Digitus DA-70890 User Manual

Usb-c docking station with wireless video extender, 8 port
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
USB-C™ DOCKING STATION WITH
WIRELESS VIDEO EXTENDER, 8 PORT
User Manual
DA-70890

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA-70890 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digitus DA-70890

Summary of Contents for Digitus DA-70890

  • Page 1 USB-C™ DOCKING STATION WITH WIRELESS VIDEO EXTENDER, 8 PORT User Manual DA-70890...

  • Page 2: Important Safety Notice

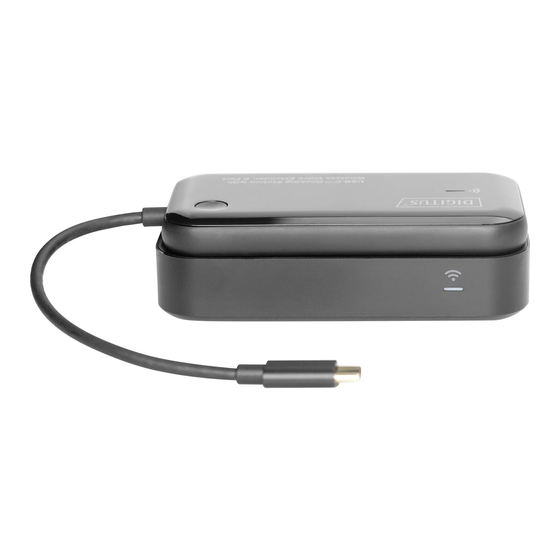

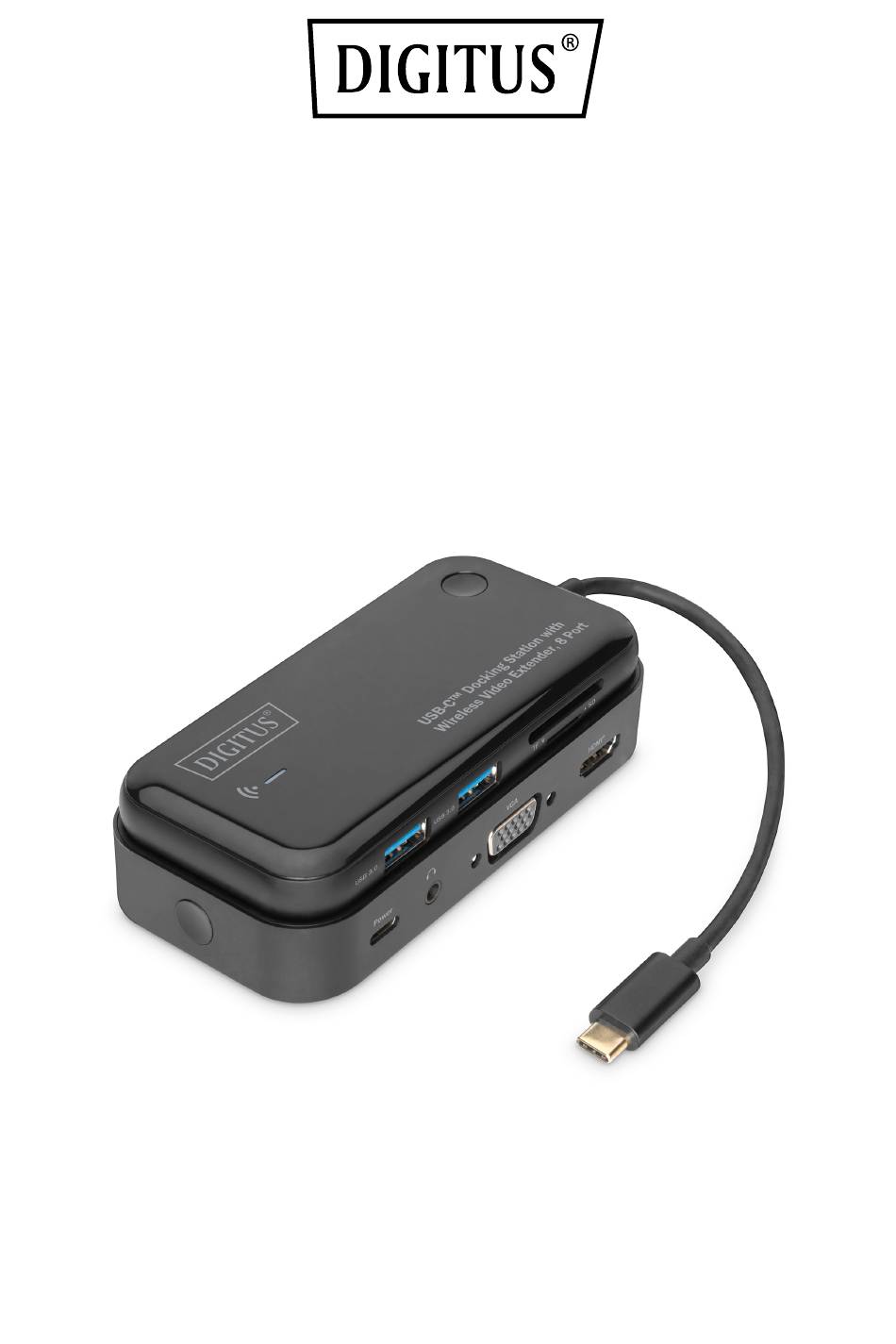

    Introduction The two-part DIGITUS® docking station transmits Full HD video signals to distances of up to 10 m. These video signals can be displayed on the HDMI® and VGA connection in parallel. Additionally, audio signals can be picked up via the existing 3.5 mm jack socket because a VGA cable cannot transmit any audio signals.

  • Page 3: Structure Diagram

    Structure Diagram Transmitter Receiver Function Key Function Key ①. ①.  Long press 5s: Enter pairing mode  Single click: stop /Restart video USB-C™ (Power supply to receiver) display ⑤.  Long press 5s: Enter pairing mode 3.5mm Audio ⑥. ...
  • Page 4 Connection Receiver Transmitter Audio SD/ Micro SD ①. ④. VGA Display HDD& USB Stick ②. ⑤. HDMI® Display Power Adapter ③. ⑥. Connectivity Transmitter Connection Receiver Connection Connect the transmitter to Connect the receiver to the monitors with HDMI or VGA cables mobiles/tablets/laptops (USB-C™...
  • Page 5 Features 2-part docking station consists of transmitter and receiver unit • • Transmitter unit: 1 x USB-C™ (Host), 2 x USB A (USB 3.0, 5 Gbps), 1 x card reader (SD/MicroSD) • Receiver unit: 1 x HDMI™, 1 x VGA, 1 x USB-C™ (Power), 1 x Audio (3.5 mm) •...

  • Page 6: Package Content

    a. Why is there no video output? 1. Please check the connection is good 2. Please use standard HDMI or VGA cable 3. The automatic screen casting link will take about 10 seconds, please wait patiently 4. Mobile phone/computer supports video output 5.
  • Page 7 Frequency range and maximum transmission power Frequency range: Wi-Fi (HT80) 5.1 GHz- 5.8 GHz Transmission power: max. 14.5 dBm SW (software) version: V 1.3e HW (hardware) version: V 1.0 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
