Universal docking station, usb type-c

Advertisement

Universal Docking Station,
USB Type-C™
Quick Installation Guide
DA-70863 Rev.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4016032435396 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus 4016032435396

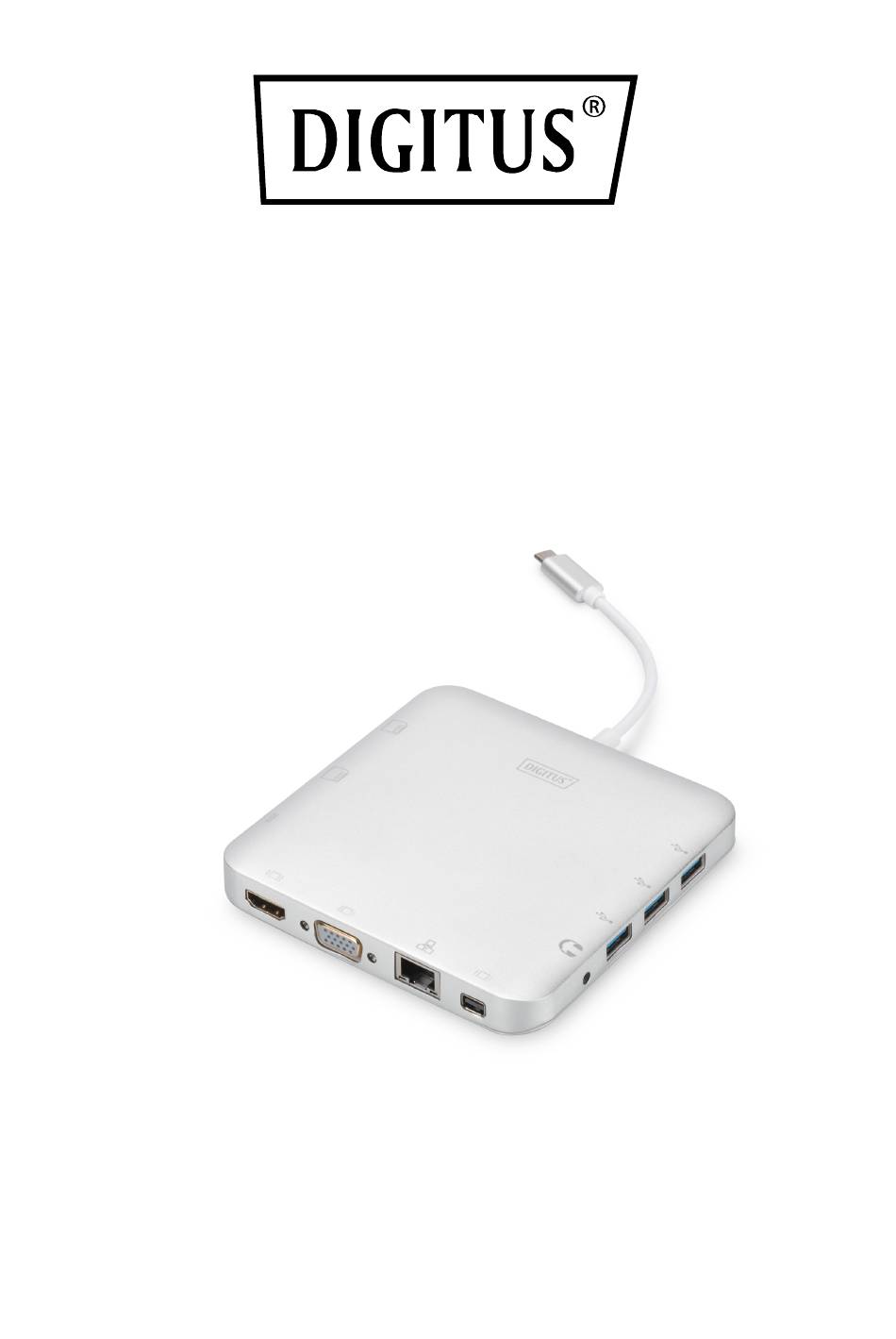

  • Page 1 Universal Docking Station, USB Type-C™ Quick Installation Guide DA-70863 Rev.4...

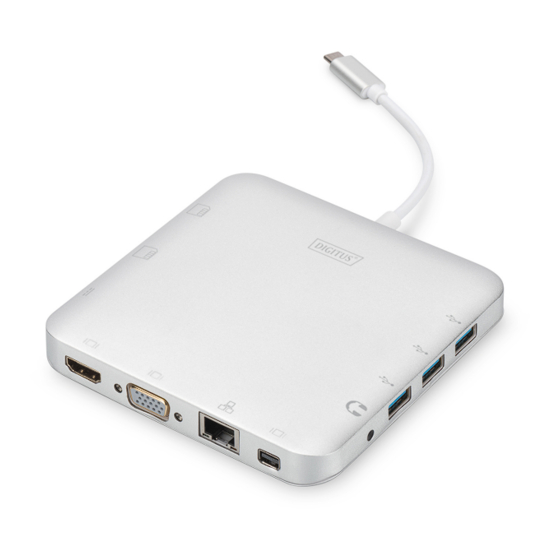

  • Page 2 1. INTRODUCTION The fully functional universal docking station, USB Type-C™ from Digitus offers you everything to create a fully equipped workspace. It offers three video interfaces (HDMI, MiniDP and VGA), where two monitors can be operated at the same time.
  • Page 3  Support Secure Digital v3.0 UHS-I (Reading speed max 70Mbps, Writing speed max 90Mbps)  Support MultiMediaCard (MMC) specification  Support Micro SD/SDHC/SDXC (up to 128 GB)  Supports: Mac OS 10.10.2 and above, Google Chrome, Windows: Windows 7 to Windows 10 Note The product is a Multi-Stream-Transport (MST) hub and supports the extended...
  • Page 4 4. SPECIFICATIONS Input/Output Connector Input USB-C Male x1 Output HDMI Female x1 Mini DP Female x1 VGA Female x1 USB-C Female x1 USB 3.0 Female x3 RJ45 X1 Stereo x1 SD card slot x1 Micro SD card slot x1 USB-C Female x1 for charging Environmental Operating 0°C to +45°C...
  • Page 5 Ethernet cable 7) Connect the Stereo port to earphone 8) Insert Micro SD and SD/MMC cards into the card reader ports 9) Connect the Type-C™ charging port, it can charge your notebook/ultrabook and support this adapter to work simultaneously Support Mac: Supported OS 10.10.2 from 10.12.1 (newest), Google Chrome Windows: Supported Windows 7 to Windows 10 Note:...
  • Page 6 6. PORT DESCRIPTION 1. USB Type-C – Charging 2. USB 3.0 – Charging & Data Transfer 3. RJ45 – Network connection 4. Audio (Out) – Headphones 5. HDMI (Out) 6. Mini DisplayPort 7. VGA Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
