Summary of Contents for Gage Bilt GB722SHAVTAXT08

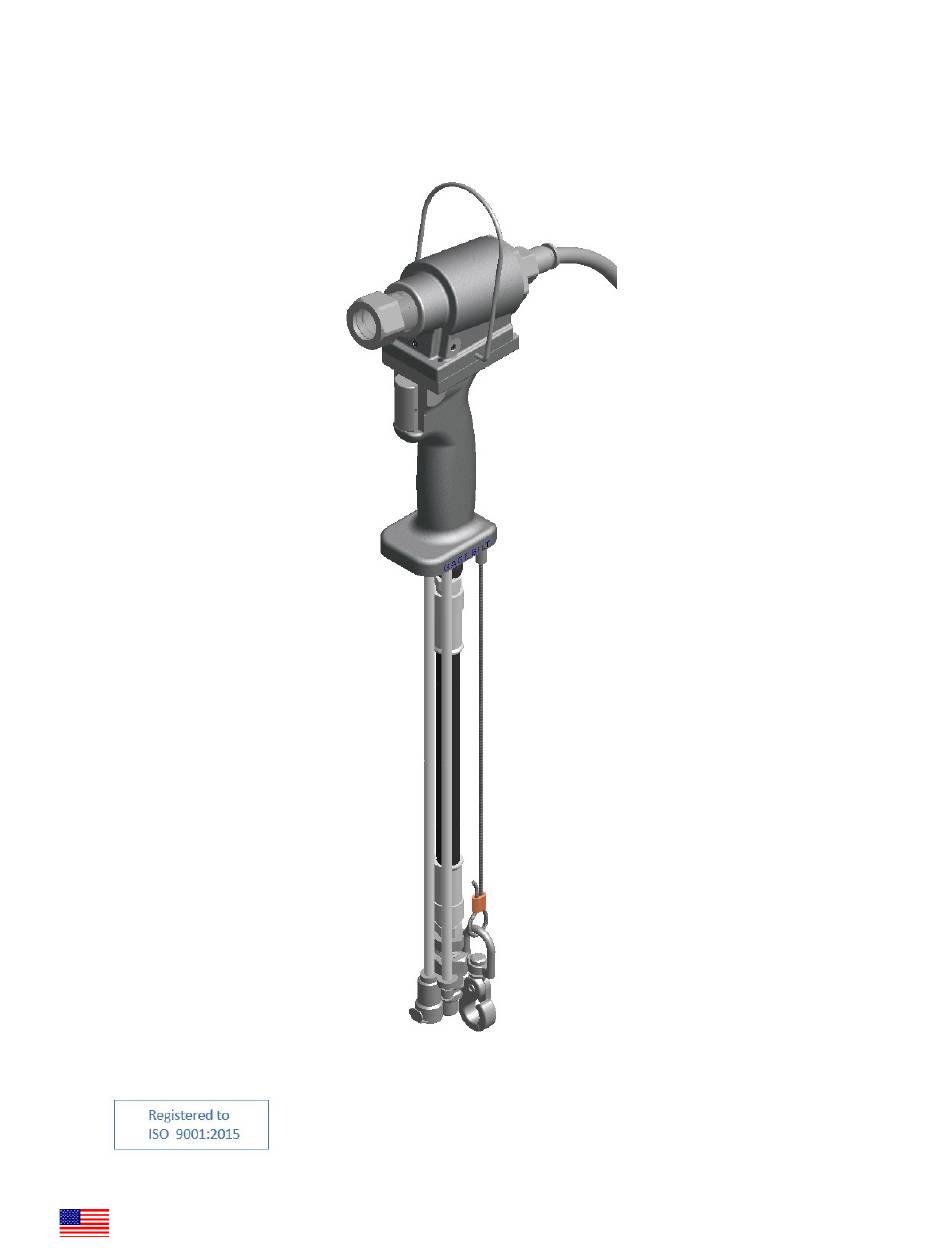

- Page 1 ORIGINAL INSTRUCTIONS GB722SHAVTAXT08 INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. 44766 Centre Court Clinton Twp. MI 48038 USA GAGE BILT Ph: +1 (586) 226-1500 Fax: +1 (586) 226-1505 solutions1@gagebilt.com / www.gagebilt.com MADE in USA...
-
Page 2: Table Of Contents
Description and Technical Specifications ..........................4 Description of Functions ................................5 Warnings ..................................... 6 Principle of Operation ................................7 How to set-up the GB722SHAVTAXT08 ........................... 8 How to use the GB722SHAVTAXT08 ............................9 Maintenance and Hydraulic Thread Preparation ........................10 Filling and Bleeding ................................. 11 Troubleshooting .................................. -
Page 3: Warranty
This warranty is void if Seller is not notified in writing of any rejections or defects within 1 year after the receipt of the material by the customer. THIS WARRANTY IS MADE IN LEIU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING MERCHANTABILITY. GB722SHAVTAXT08 PNEUDRAULIC INSTALLATION TOOL 3/22 REV 3/23... -
Page 4: Description And Technical Specifications
The handle and head assembly when held in hand weighs 2.5 lbs. (1.6 kg). It has a .590” (15 mm) fastener setting stroke. The GB722SHAVTAXT08 split handle installation tool comes with 8 feet (2.4 m) of hose and operates in conjunction with the GB808HVB &... -
Page 5: Description Of Functions
Head Cylinder Assembly Hanger Pintail Evacuation Tube Bleed Screw Handle Assembly Actuator Assembly Hydraulic “PULL” Hose Air Line (Feed from Regulator to Actuator). Air Line “RETURN” Lanyard Assembly Image may not reflect actual tool GB722SHAVTAXT08 PNEUDRAULIC INSTALLATION TOOL 3/22 REV 3/23... -
Page 6: Warnings
7. Forcible ejection of the mandrel from the front of the nose assembly is possible. 4. Support the weight of the tool in a stand, tensioner or balancer, because a lighter grip can then be used to support the tool. GB722SHAVTAXT08 PNEUDRAULIC INSTALLATION TOOL 3/22 REV 3/23... -
Page 7: Principle Of Operation
PULL Cycle RETURN Cycle Pressurized Air Unpressurized Air Pressurized Oil Unpressurized Oil Images may not reflect actual tool GB722SHAVTAXT08 PNEUDRAULIC INSTALLATION TOOL 3/22 REV 3/23... -
Page 8: How To Set-Up The Gb722Shavtaxt08
HOW TO SET-UP THE GB722SHAVTAXT08 WARNING: Only qualified and trained operators shall install, adjust or use the assembly power tool for non-threaded mechanical fasteners. WARNING: Operator MUST read and understand all warnings and cautions. WARNING: It is required that eye protection, hearing protection and safety boots be worn at all times while handling this equipment. -
Page 9: How To Use The Gb722Shavtaxt08
HOW TO USE THE GB722SHAVTAXT08 WARNING: Only qualified and trained operators shall install, adjust or use the assembly power tool for non-threaded mechanical fasteners. WARNING: Operator MUST read and understand all warnings and cautions. WARNING: It is required that eye protection, hearing protection and safety boots be worn at all times while handling this equipment. -
Page 10: Maintenance And Hydraulic Thread Preparation
WARNING: Tool must be maintained in a safe working condition at all times and examined on a daily basis for damage or wear. Any repair must be done by qualified personnel trained on Gage Bilt procedures. WARNING: Excessive contact with hydraulic oil and lubricants must be avoided. -
Page 11: Filling And Bleeding
Subtract dimension (B) from dimension (A). If stroke is not consistent within 1/64" (.396 mm) repeat steps 1 - 9 until stroke met. For your consideration, Gage Bilt offers a depth gage (Pt.# A-1935) to help simplify and more accurately check your tool stroke. -
Page 12: Troubleshooting
Note: Offset nose assemblies must be check by removing the vacuum line from the nose assembly. c.) Press gage against the vacuum line or nose assembly to create seal. Optimum vacuum pressure at nose assembly must be between 15 - 22 inHg. (381 - 558.8 mmHg). GB722SHAVTAXT08 PNEUDRAULIC INSTALLATION TOOL 3/22 REV 3/23... -
Page 13: Overhaul
11. Reassembly sequence is opposite of disassembly. Be sure relative positions of o'rings and back-up rings are as shown in exploded view and part list. Coat hose fitting threads with a non-hardening Teflon® thread compound such as Slic-tite® (Gage Bilt part no. 403237). DO NOT USE TEFLON TAPE. - Page 14 Poppet valve assembly sits flush against pin dia. in hole Reinsert pin into hole on handle assembly (700343). Re-attach the lever and tighten set screw. Note: View above shows proper orientation of lever. GB722SHAVTAXT08 PNEUDRAULIC INSTALLATION TOOL 3/22 REV 3/23...
-
Page 15: Assembly / Disassembly Of Nose Assemblies To Tool
(IE* collet, extension-collet & jaws). (Individual parts vary depending on nose assembly). * Sleeve (722148) must be removed (before assembly/disassembly of nose assemblies) to install Allen wrench into rear of piston. GB722SHAVTAXT08 PNEUDRAULIC INSTALLATION TOOL 3/22 REV 3/23... -
Page 16: Parts Lists
PARTS LIST GB722SHAVTAXT08 PNEUDRAULIC INSTALLATION TOOL 3/22 REV 3/23... -
Page 17: Alternate Styles
Alternative Styles (Sold Separately) Inline (SRA) Pistol Grip (SHA) All SRA and SHA tools require a powerunit to operate. Please contact GAGE BILT for more information. Description Pistol Grip Inline Image may not reflect actual tool Pintail Deflector Vacuum SHAV... -
Page 18: Powerunits
POWERUNITS (Sold Separately) Compatible with Gage Bilt and Huck® Air/hydraulic installation tools GB808 POWERUNIT (Sold Separately) Hose Kits available to 26 ft (7.92 m) Pressure 4,000 lbs. (177.93kN) @ 90 PSI (6.2 bar) Fast Acting Cylinder Requires 1/2" (12.7 mm) Air Hose POWER: 80-100 PSI compressed air (5.2-6.9 bar) - Page 19 This page intentionally left blank GB722SHAVTAXT08 PNEUDRAULIC INSTALLATION TOOL 3/22 REV 3/23...
-
Page 20: Kits / Accessories
Gage Bilt offers a wide selection of standard and custom kits tailored to your needs. Contact us for more information. GB722SHAVTAXT08 ACCESSORIES Approved for use on Gage Bilt CE installation tools and/or other manufacturer’s CE approved tools of similar design. (Sold Separately) Catcher Bag...
