P.O. BOX 557 204 INDUSTRIAL PARK DRIVE
LAKEFIELD, MINNESOTA USA 56150-0577
Read and understand the entire installation and operation manual, including all
safety information, before plugging in or using this product. Failure to do so may
result in fire, electric shock, or serious personal injury.
This fireplace meets the construction and safety standards of H.U.D. for application
in manufactured homes when installed according to these instructions.
English installation manuals are available through your
local dealer or website. Visit our website
Hussong Mfg. Co, Inc.

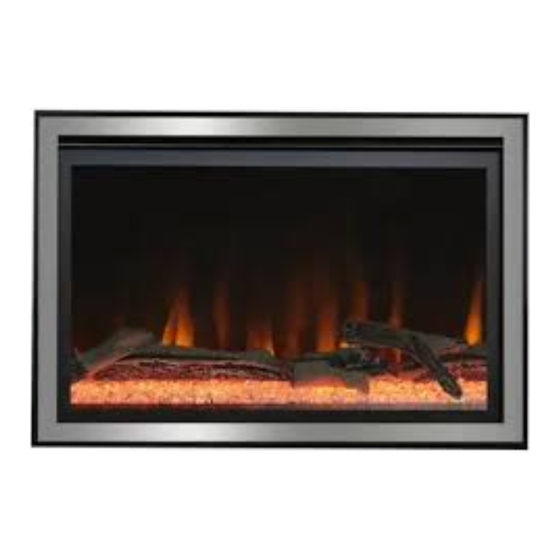

Osseo E-Series Electric Fireplace
Osseo E-Series
Electric Fireplace - Built-In or Insert
Model #OSO-e29
Model #OSO-e34
www.kozyheat.com.
INSTALLATION AND
OPERATION MANUAL
WARNING
INSTALLER: Leave this manual with the
CONSUMER: Retain this manual for future
1
appliance.
reference.
Rev. 1 - January 2024
Starting Serial Number: 23 OSE29000001 49,
23 OSE34000001 49
Advertisement
Table of Contents
Related Manuals for kozy heat Osseo E Series
Summary of Contents for kozy heat Osseo E Series
- Page 1 INSTALLATION AND OPERATION MANUAL P.O. BOX 557 204 INDUSTRIAL PARK DRIVE LAKEFIELD, MINNESOTA USA 56150-0577 Osseo E-Series Electric Fireplace - Built-In or Insert Model #OSO-e29 Model #OSO-e34 WARNING Read and understand the entire installation and operation manual, including all safety information, before plugging in or using this product. Failure to do so may result in fire, electric shock, or serious personal injury.
- Page 2 Hussong Mfg. Co, Inc. Rev. 1 - January 2024 Osseo E-Series Electric Fireplace Starting Serial Number: 23 OSE29000001 49, 23 OSE34000001 49...
-
Page 3: Homeowner Reference Information
CONGRATULATIONS! We welcome you as a new owner of a Kozy Heat electric fireplace. Kozy Heat products are designed with superior components and materials, and assembled by trained craftsmen who take pride in their work. Our commitment to quality and customer satisfaction has remained the same for over 40 years. We offer a complete line of gas, wood, and electric fireplaces, along with stylish accessories to complement any decor. - Page 4 Hussong Mfg. Co, Inc. Rev. 1 - January 2024 Osseo E-Series Electric Fireplace Starting Serial Number: 23 OSE29000001 49, 23 OSE34000001 49...
-
Page 5: Table Of Contents
TABLE OF CONTENTS HOMEOWNER REFERENCE INFORMATION ....3 TABLE OF CONTENTS .............5 IMPORTANT INSTRUCTIONS ..........7 1.0 Introduction ............8 1.1 Appliance Certification ........8 1.2 California Proposition 65 Warning ...... 8 1.3 Electrical Specifications ........8 1.4 Appliance Preparation ......... 8 1.5 Parts and Hardware ..........8 1.6 Appliance Dimensions ......... - Page 6 Hussong Mfg. Co, Inc. Rev. 1 - January 2024 Osseo E-Series Electric Fireplace Starting Serial Number: 23 OSE29000001 49, 23 OSE34000001 49...
-
Page 7: Important Instructions
4. Do not operate any heater after it malfunctions. Disconnect power at service panel and have heater inspected by an author- ized Kozy Heat dealer before reusing. 5. Do not use outdoors. 6. To disconnect the heater, turn the controls to OFF, and turn off the power to the heater circuit at the main disconnect panel. -
Page 8: Introduction
1.0 Introduction 1.1 Appliance Certification 1.5 Parts and Hardware Laboratory: Intertek Testing Services IMPORTANT: Keep any plastic packaging and small parts away from young children as they can pose a danger. Standards: Package Contents: CSA C22.2 No 46-13 Ed.9 Electric Air-Heaters (R2018) •... -
Page 9: Appliance Dimensions
1.6 Appliance Dimensions Figure 1.1 - Appliance Dimensions Fireplace Models OSO-e29 19-1/16” 28-9/16” 11-1/2” 23” (486mm) (725mm) (292mm) (584mm) OSO-e34 22-7/8” 32-5/16” 11-1/2” 26-3/4” (581mm) (821mm) (292mm) (679mm) Hussong Mfg. Co, Inc. Rev. 1 - January 2024 Osseo E-Series Electric Fireplace Starting Serial Number: 23 OSE29000001 49, 23 OSE34000001 49... -
Page 10: Assembly And Installation
2.0 Assembly and Installation 2.1 Installation Planning NOTE: Follow all national and local building and electrical codes. • To reduce the risk of fire, do not store or use gasoline or other flammable vapors and liquids in the vicinity of the heater. •... -
Page 11: Appliance Preparation For Installation
2.3 Appliance Preparation for Installation 2.3.1 Insert Installation Ensure there is an electrical connection inside the existing opening. Install the provided power cord. See Section 2.9. Remove the (5) screws along the top edge and (2) screws on each side to be able to install a shroud. Install the shroud to the fireplace as shown in right image in Figure 2.4. -
Page 12: Nailing Flange Installation
2.4 Nailing Flange Installation The nailing flanges come attached to the appliance. There are (2) nailing flanges on each side of the appliance. Fold out the nailing flange as shown in Figure 2.5. Use the nailing flange to secure the appliance to framing. When unfolding the nailing flange as When unfolding the nailing flange Nailing flange location... -
Page 13: Clearance To Combustibles
2.5 Clearance to Combustibles Table 2.1, Minimum Clearances to Combustibles Bottom of appliance 0” (0 mm) Left and right sides of appliance 0” (0 mm) Back of appliance 0” (0 mm) Top of appliance 1” (25 mm) Viewing Area Opening Top to 12” (305mm) mantel 0”... -
Page 14: Framed Appliance Opening
2.6 Framed Appliance Opening Select a location not prone to moisture and is located at least 36” (914mm) away from the front of the appliance to combustible materials such as curtains, drapes, furniture, bedding, paper, etc. 1. Create a rough opening. Figure 2.1 - Framed Opening Framed Opening Dimensions 20-1/8”... -
Page 15: Exterior Trim - Purpose And Installation
2.7 Exterior Trim - Purpose and Installation The exterior trim is an optional accessory for the Osseo e29 and e34. • This trim is intended to be used when the appliance is installed in a recessed installation. • The purpose of the trim is to cover an unfinished or exposed edge of finishing material that is flush with the appliance (drywall or wood). -
Page 16: Chaska Screen Barrier Hanging Bracket - Purpose And Installation
2.8 Chaska Screen Barrier Hanging Bracket - Purpose and Installation The Chaska screen barrier hanging brackets is an optional accessory for the Osseo e29 and e34. • This hanging bracket and accompanying Chaska screen barrier is intended to be used when the appliance is installed in a recessed installation. -
Page 17: Electrical Connection
2.9 Electrical Connection The appliance is shipped in a manner where the electrical connection can be hardwired or connected with a power cord (provided). When the appliance is installed in a recessed installation application the electrical connection must be hard- wired. -
Page 18: Facing And Finishing
3.0 Facing and Finishing 3.1 Mantel Requirements WARNING: All minimum clearances to combustible material MUST be maintained. • Combustible Mantel Projections: Mantel projections must fall within the 12” (305mm) combustible Wall Projection shown in Figure 3.2. The combined wall projection, finishing material, and combustible mantel cannot exceed a 12” (305mm) projection. •... -
Page 19: Finishing Material Information
Figure 3.2 - Hearth and Mantel Projections 3.3 Finishing Material Information • When selecting a finishing material consider how the finishing material will butt up against or overlap the edge of the appliance. There are different options on how to cover the edge of finishing material. Hussong Mfg. offers an exterior trim (Section 2.7) or a Chaska Hanging Bracket (Section 2.8) to cover the edge of finishing material. -
Page 20: Appliance Setup
4.0 Appliance Setup 4.1 Glass Front Removal and Installation Note: If the Exterior Trim or Chaska Screen Brackets are installed you must remove those before removing the glass. Note: The Osseo e29 has an air channel in front of the glass valance channel. Ensure the glass in reinstalled in the glass valance channel that it was initially removed from. -
Page 21: Log Set Installation
4.3 Log Set Installation The Osseo E-Series has an optional traditional log or birch log set. 4.3.1 Osseo e29 & e34 Birch Log Set • The images below show the suggested log configuration for optional birch log set • Figure 4.2 shows the (4) charred logs installed. These are positioned in front of the pulsating ember bed LEDs. The two bark and char logs are on both sides of the fireplace. - Page 22 4.3.2 Osseo e29 & e34 Traditional Log Set • The images below show the suggested log configuration for optional traditional log set. • Figure 4.4 shows the (4) charred logs installed. These are positioned in front of the pulsating ember bed LEDs. The two bark and char logs are on both sides of the fireplace.
-
Page 23: Operating Instructions
5.0 Operating Instructions 5.1 Methods of Operation WARNING: Read and understand this entire installation and operation manual, including all safety information, before plug- ging in or using this product. This appliance must be properly installed before use. Failure to do so could result in electric shock, fire, serious injury, or loss of life. -
Page 24: Appliance Control Panel Operation
5.3 Appliance Control Panel Operation Note: Each time you press a button on the control panel you will hear an audible beep sound indicating an action has happened. Main Power Switch • Push the main power switch to I, the main power indicator will illuminate. Manual Switch •... -
Page 25: Remote Control Operation
5.4 Remote Control Operation Figure 5.3 - Remote Control Note: The remote will go into safe mode after 60 seconds of not being used. Press the “unlock” button on the remote to unlock the remote before use. When you press the “unlock” button the remote screen backlight will turn on. •... - Page 26 Turning on / off the appliance. Note: The rocker switch on the appliance control panel must be turned on. • Press the “power” button on the remote control to turn the fireplace on or off. Remember that if the remote has not been used within the last 60 seconds then you will have to push the power button once to unlock the remote then press the power button a second time to turn the fireplace on or off.
- Page 27 Flame Effect Icon Down LED Effect Icon Floor LED Effect Icon Figure 5.6 - LED Light Effect Icons Flame Effect • Press the “flame” button and the icon will flash on the remote. The flame adjustment is now active. • Press the “up”...
-
Page 28: Maintenance
6.0 Maintenance 6.1 Cleaning the Appliance The appliance should always have power turned off when performing maintenance. Go to the appliance control panel and en- sure the toggle switch is in the off position. • Carefully clean the air inlet and heater area with a cloth or vacuum on a regular basis. It is important that these areas are kept free from dust / pet hairs, etc. -
Page 29: Replacement Parts List
7.0 Replacement Parts List Replacement parts are available through your local dealer. Contact your local dealer for availability and pricing. The following warning is for replacement parts for this appliance. ⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. P.O. BOX 557 204 INDUSTRIAL PARK DRIVE LAKEFIELD, MINNESOTA USA 56150-0577 Osseo e29 Electric Fireplace - Replacement Parts Front Viewing Glass... - Page 30 OSE34-DLS Speaker OSE-SPE Flame Effect Motor OSE-FEM Power Cord OSE-POW Osseo E-Series Optional Accessories Osseo E Series Traditional Log Set OSE-TLS Osseo e29 Chaska Hanging Bracket OSE29-CHB Osseo E Series Birch Log Set OSE-BLS Osseo e34 Chaska Hanging Bracket OSE34-CHB...
-
Page 31: Limited Lifetime Warranty
Kozy Heat authorized dealer performed by a non-authorized service provider, or distributor. A list of Kozy Heat authorized dealers is without pre-authorization. available on the Kozy Heat website (www.kozyheat.com).
