HUSSONG MANUFACTURING CO., INC.
O S S E O 4 5
O S S E O 6 0
Models OSO-45 & OSO-60

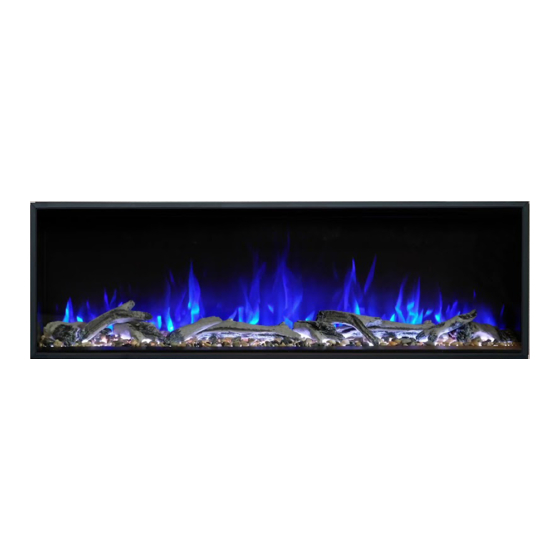

Wall Recessed Electric Fireplace
WARNING
Read and understand the entire installation
and operation manual, including all safety
information, before plugging in or using this
product. Failure to do so may result in fire,
electric shock, or serious personal injury.
This fireplace meets the construction and
safety standards of H.U.D. for application
in
manufactured
according to these instructions.
Hussong Mfg. Co., Inc.
OSO-45 & OSO-60
homes
when
installed
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATION AND
OPERATION MANUAL
English and French installation manuals are available through your
local dealer. Visit our website www.kozyheat.com.
Les manuels d'installation en français et en anglais sont disponibles
chez votre détaillant local. Visitez www.kozyheat.com .
Starting Serial Number OSO-45: 20-OS4500001-39
Starting Serial Number OSO-60: 20-OS6000001-39
Rev.1, November 2020
Advertisement
Table of Contents
Related Manuals for kozy heat OSSEO 45
Summary of Contents for kozy heat OSSEO 45
- Page 1 INSTALLATION AND OPERATION MANUAL HUSSONG MANUFACTURING CO., INC. O S S E O 4 5 O S S E O 6 0 Models OSO-45 & OSO-60 Wall Recessed Electric Fireplace WARNING English and French installation manuals are available through your local dealer.
- Page 3 Please retain this owner’s manual for future reference. CON GRAT ULAT I ON S! We welcome you as a new owner of a Kozy Heat electric fireplace. Kozy Heat products are designed with superior components and materials, and assembled by trained craftsmen who take pride in their work.
-
Page 5: Table Of Contents
2.5 Front Trim Removal and Installation ............ 13 9.0 REPLACEMENT PARTS LIST ............ 26 2.6 Nailing Flange Installation ............... 14 LIMITED WARRANTY ..............28 #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces TABLE OF CONTENTS 5... -
Page 7: Important Instructions
A heater has hot and arcing or sparking parts inside. Do not use of other heaters. in areas where gasoline, paint, flammable vapors, or liquids are SAVE THESE INSTRUCTIONS #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces IMPORTANT INSTRUCTIONS 7... -
Page 8: Specifications
The adapter should not be used if a three-slot grounded receptacle is available. Adapter Grounding pin Metal grounding screw Cover of grounded outlet box Figure 1.1, Adapter 8 SPECIFICATIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-45 #OSO-60 R.1 November 2020... -
Page 9: Parts And Hardware
1.5 Parts and Hardware Wood Screw ST Screw Crystals (small) River Rocks Crystals (large) Remote Control Nailing Flange Electrical Grommet Cover Plate Ember Bed LED Strip #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces SPECIFICATIONS 9... -
Page 10: Appliance Dimensions
(305mm) (416mm) (1143mm) (1054mm) (292mm) OSO-60 62-7/8” 22-1/4” 12” 16-3/8” 60” 56-1/2” 11-1/2” (1598mm) (565mm) (305mm) (416mm) (1524mm) (1435mm) (292mm) Figure 1.2, #OSO-45 & #OSO-60 10 SPECIFICATIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-45 #OSO-60 R.1 November 2020... -
Page 11: Assembly And Installation
Never exceed the maximum amperage for the circuit. DO NOT plug other appliances into the same circuit. #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces ASSEMBLY AND INSTALLATION 11... -
Page 12: Rough Opening
1/2” (12mm) clearance Dimension ‘K’ includes appliance depth plus 1/2” (12mm) clearance Nominal 2” x 4” framing used in framing Figure 2.1, Rough Opening Dimensions 12 ASSEMBLY AND INSTALLATION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-45 #OSO-60 R.1 November 2020... -
Page 13: Front Trim Removal And Installation
The front trim may be flush with the appliance finishing edge or extended up to 1” (25mm), depending on your desired finish. Figure 2.2, Front Trim Installation and Removal #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces ASSEMBLY AND INSTALLATION 13... -
Page 14: Nailing Flange Installation
(See Section 4.1 Hard Wiring Connection on page 17). Nominal 2” x 4” framing used in framing Figure 2.3, Nailing Flange Installation 14 ASSEMBLY AND INSTALLATION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-45 #OSO-60 R.1 November 2020... -
Page 15: Facing And Finishing
⁄ 4” 2” ” (102mm) (51mm) (73mm) Top of viewing opening Nominal 2” x 4” framing used in framing Figure 3.1, Mantel Clearances #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FACING AND FINISHING 15... - Page 16 12” (305mm) OSO-60 63-3/4” (1619mm) 23” (584mm) 12” (305mm) Finishing Material Nominal 2” x 4” framing used in framing Figure 3.2, Finishing Material Dimensions 16 FACING AND FINISHING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-45 #OSO-60 R.1 November 2020...
-
Page 17: Hard Wiring Installation
Re-install cover plate using (4) screws, as shown in Figure 4.1. Electrical Grommet 7/8" (22.2mm) Diameter Figure 4.1, Cover Plate Removal Figure 4.3, Wiring through Electrical Grommet and Cover Plate #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces HARD WIRING INSTALLATION 17... -
Page 18: Appliance Setup
Hold glass in place and secure with screws previously removed. Reinstall front trim. Figure 5.1, Glass Front Removal and Installation 18 APPLIANCE SETUP Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-45 #OSO-60 R.1 November 2020... -
Page 19: Media Installation
Figure 5.2, Ember Bed Strip Installation Figure 5.4, Small Crystal Installation Figure 5.5, Example of Large Crystal Installation Figure 5.3, Log and River Rocks Installation #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces APPLIANCE SETUP 19... -
Page 20: Operating Instructions
This is normal and should not occur again unless the appliance is not used for a long period of time. Remote Control Figure 6.1, Operating Components 20 OPERATING INSTRUCTIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-45 #OSO-60 R.1 November 2020... - Page 21 Press once: Indicator lights turns on. Timer defaults to appliance at a selected time. (30) minutes. Settings range from (30) minutes to (8) hours. Press again until desired setting is reached. #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces OPERATING INSTRUCTIONS 21...
- Page 22 Note: To prevent overheating, the heater will blow cool air for 8-10 seconds after the heater turns off. H1 - Low heater on with 750W H2 - High heater on with 1500W 22 OPERATING INSTRUCTIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-45 #OSO-60 R.1 November 2020...
- Page 23 (b5). and brighter. Note: Media bed colors 2, 3, & 4 on pulse (b5) will pul- sate an ember effect. #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces OPERATING INSTRUCTIONS 23...
-
Page 24: Maintenance Instructions
Figure 7.1, Remote Control Battery Replacement 7.2.2 Storage • Store heater and power cord in a clean, dry place when not in use. 24 MAINTENANCE INSTRUCTIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-45 #OSO-60 R.1 November 2020... -
Page 25: Troubleshooting
Replace batteries in remote control. See Section 7.3 Remote Control work Battery Information on page 24. Remote receiver malfunction. Ensure remote receiver is not blocked. Move closer to appliance. #OSO-45 #OSO-60 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces TROUBLESHOOTING 25... -
Page 26: Replacement Parts List
Electric Remote Control OSO-ERC Power Cord OSO-PWC Hussong Manufacturing Co., Inc. P.O. Box 577 204 Industrial Park Drive Lakefield, MN 56150-0577, USA OSO-45 & OSO-60 26 REPLACEMENT PARTS LIST Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-45 #OSO-60 R.1 November 2020... -
Page 28: Limited Warranty
Hussong Manufacturing Company, Inc. (Hussong Mfg.) warrants this Warranty coverage beings on the date of original purchase. In the Kozy Heat electric appliance from the date of purchase to the original case of new home construction, warranty coverage begins on the...
