ASSEMBLY
Mastermind System
V.21.0 2/2024
360.394.1300
watsonfurniture.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mastermind System and is the answer not in the manual?

Questions and answers

Related Manuals for WATSON Mastermind System

Summary of Contents for WATSON Mastermind System

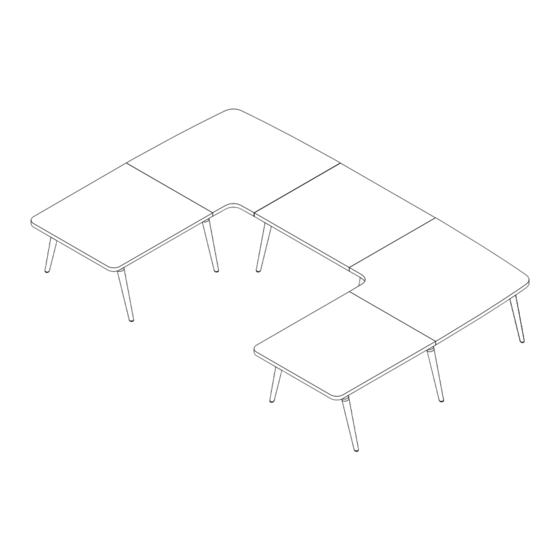

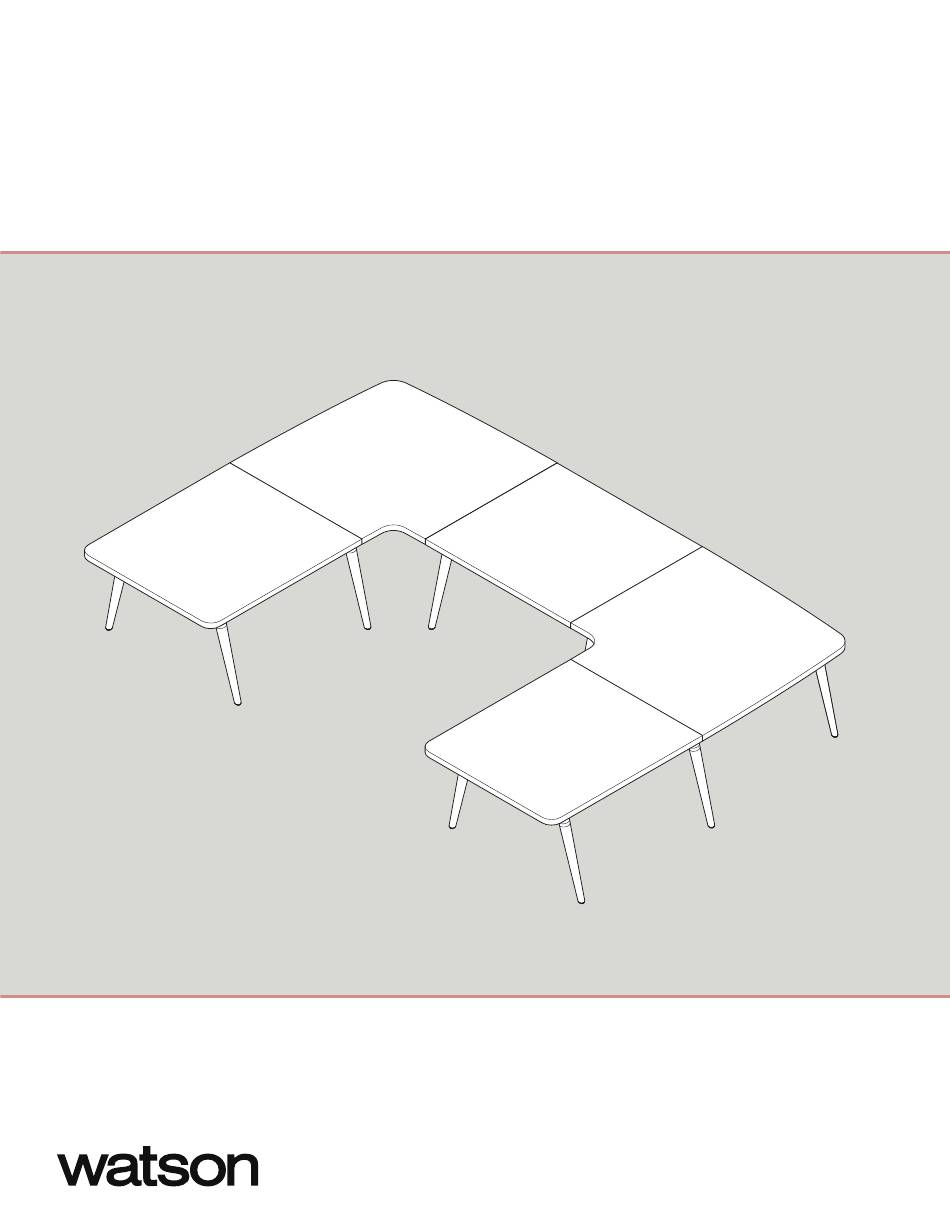

  • Page 1 ASSEMBLY Mastermind System V.21.0 2/2024 360.394.1300 watsonfurniture.com...

  • Page 2: Important Safety Instructions

    Important Safety Instructions This product is for commercial use only. Maximum intended load for each worksurface is 200 lbs (91 kg) When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). DANGER To reduce the risk of electric shock: 1.
  • Page 3 12. Electrical connection between rail segments shall be disconnected prior to removal of a mechanical connection. 13. The system may be supplied by a three phase power system with four individual circuits rated at 20 amps/120 volts max-imum, or as permitted by local code. 14.
  • Page 4 Tools Additional tools such as a 90 Degree Bit and an 18” Extension are helpful for some steps. *No torque or ball bits should be used Phillips Drill/ 5mm Hex Drill/ 90 DGREE BIT Electric Drill Driver Bit Driver Bit 18”...

  • Page 5: Essential Components

    Essential Components Leg Mount Traverse Long Traverse Short Traverse Plastic Nut End Cover Optional Cable Tray Rectanglular Adder Rectanglular Adder Rectanglular Adder Angled Adder...
  • Page 6 Section 1 Install Plastic Nut Assembly. Align and insert Plastic Nut Assembly into holes on Leg Mount Casting (1a thru 1e). Align Plastic Nut Assembly with notches in the Leg Mount Casting (See Figure 1). PLASTIC NUT ASSEMBLY LEG MOUNT CASTING Fig.
  • Page 7 Install Traverse End Covers. Align and attach Traverse End Covers to Leg Mount Castings wherever there is a Plastic Nut Assembly installed (2a thru 23). Refer to Fig. 2 for locations for the rest of the Traverse End Covers. PLASTIC NUT ASSEMBLY TRAVERSE END COVER LEG MOUNT...
  • Page 8 Section 1: Attach Traverses. Slide Traverses over each Traverse End Cover (3a thru 3d) to attach the Legs and build the Base. Assemble as shown. Note: The Long Traverses will run parallel to the length of the Table. TRAVERSE TRAVERSE END COVER LONG EXTRUSION...
  • Page 9 Secure Base. Screw, M8 X 25MM, Flat Head (0002678)
  • Page 10 Section 2 Install Plastic Nut Assembly. Align and insert Plastic Nut Assembly into holes on Leg Mount Casting (1a). Align Plastic Nut Assembly with notches in the Leg Mount Casting (See Figure 1). Fig. 1 This side connects to Section 1 CHANNEL IN PLASTIC NUT ASSEMBLY ALIGNED IN SAME DIRECTION AS...
  • Page 11 Install Traverse End Covers. Align and attach Traverse End Covers to Leg Mount Castings wherever there is a Plastic Nut Assembly installed (2a thru 2d). Refer to Fig. 2 for locations for the rest of the Traverse End Covers. Fig. 2 This side connects to Section 1 PLASTIC NUT ASSEMBLY...
  • Page 12 Attach Traverses. Slide Traverses over each Traverse End Cover (3a thru 3d) to attach the Legs and build the Base. Assemble as shown. Note: The Long Traverses will run parallel to the length of the Table. TRAVERSE TRAVERSE END COVER LONG EXTRUSION SHORT...
  • Page 13 Secure Base. Screw, M8 X 25MM, Flat Head (0002678)
  • Page 14 Section 3 Install Plastic Nut Assembly. Align and insert Plastic Nut Assembly into holes on Leg Mount Casting (1a thru 1e). Align Plastic Nut Assembly with notches in the Leg Mount Casting (See Figure 1). PLASTIC NUT ASSEMBLY LEG MOUNT CASTING This side connects to Section 2 Fig.
  • Page 15 Install Traverse End Covers. Align and attach Traverse End Covers to Leg Mount Castings wherever there is a Plastic Nut Assembly installed (2a thru 2e). Refer to Fig. 2 for locations for the rest of the Traverse End Covers. PLASTIC NUT ASSEMBLY LEG MOUNT CASTING...
  • Page 16 Attach Traverses. Slide Traverses over each Traverse End Cover (3a thru 3d) to attach the Legs and build the Base. Assemble as shown. Note: The Long Traverses will run parallel to the length of the Table. TRAVERSE TRAVERSE END COVER LONG EXTRUSION SHORT...
  • Page 17 Secure Base. Screw, M8 X 25MM, Flat Head (0002678)
  • Page 18 Attaching Sections Together Attaching Section 1 to Section 2 Slide Traverses over each Traverse End Cover (1a thru1d) to attach the Legs and build the Base. Assemble as shown. SECTION 1 SECTION 2...
  • Page 19 Secure Base. Screw, M8 X 25MM, Flat Head (0002678) SECTION 1 SECTION 2...
  • Page 20 Attaching Section 2 to Section 3 Slide Traverses over each Traverse End Cover (3a thru 3e) to attach the Legs and build the Base. Assemble as shown. SECTION 2 SECTION 3...
  • Page 21 Secure Base. SECTION 2 Screw, M8 X 25MM, Flat Head (0002678) SECTION 3...
  • Page 22 Attaching the Worksurfaces Place Adders onto Base (1a) making sure the Table Mount Castings (pre-installed) (1b) are placed into the receiving ends of each Leg Mount Casting (1c). Angled Adder Rectangular Rectangular Adder Adder TABLE MOUNT CASTING Angled Adder Rectangular Adder LEG MOUNT CASTING...
  • Page 23 Turn all fourteen (14) locking components in leg 90° to secure surfaces. LOCKING COMPONENT...
  • Page 24 Attach Optional Cable Tray. Align each Cable Tray with five (5) pilot holes in the surface (3a). Attach the each Cable Tray using five (5) #10 x 5/8” Phillips Head Screws (3b). Screw, #10 x 5/8, BK, Phillips (0002148) CABLE TRAY...
