- Page 1 ASSEMBLY Mastermind Conference V.21.0 2/2024 360.394.1300 watsonfurniture.com...
-
Page 2: Important Safety Instructions
Important Safety Instructions This product is for commercial use only. Maximum intended load for each worksurface is 200 lbs (91 kg) When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). DANGER To reduce the risk of electric shock: 1. - Page 3 12. Electrical connection between rail segments shall be disconnected prior to removal of a mechanical connection. 13. The system may be supplied by a three phase power system with four individual circuits rated at 20 amps/120 volts max-imum, or as permitted by local code. 14.
- Page 4 Tools Additional tools such as a 90 Degree Bit and an 18” Extension are helpful for some steps. *No torque or ball bits should be used Phillips Drill/ 4mm Hex Drill/ 5mm Hex Drill/ 90 DGREE BIT Electric Drill Driver Bit Driver Bit Driver Bit 18”...
- Page 5 Essential Components-Conference 4 Leg Leg Mount Traverse End Cover Plastic Nut Zipbolt Ut Drawbolt 4mm Hexbit Splice Plate Optional Cable Tray Surfaces (4 Leg) Short Traverse (2) Mid Traverse (2) Long Traverse (2)
- Page 6 Essential Components-Conference 6 Leg Leg Mount Traverse End Cover Optional Cable Tray Plastic Nut Surfaces (6 Leg) Short Traverse (2) Mid Traverse (2) Long Traverse (2)
- Page 7 Conference 4 Leg Install Plastic Nut Assembly. Align and insert Plastic Nut Assembly into holes on Leg Mount Casting (1a). Align Plastic Nut Assembly with notches in the Leg Mount Casting (1b). PLASTIC NUT ASSEMBLY LEG MOUNT CASTING PLASTIC NUT ASSEMBLY CHANNEL IN PLASTIC NUT ASSEMBLY ALIGNED...
- Page 8 Install Traverse End Covers. Align and attach Traverse End Covers to Leg Mount CastingS wherever there is a Plastic Nut Assembly installed (2a & 2b). Refer to Fig. 1 for locations for the rest of the Traverse End Covers. PLASTIC NUT TRAVERSE END COVER ASSEMBLY LEG MOUNT...
- Page 9 Attach Traverses. Slide Traverses over each Traverse End Cover to attach the Legs and build the Base (3a thru 3d). Assemble as shown. Note: The Mid and Long Traverses will run parallel to the length of the Table. TRAVERSE END COVER SHORT TRAVERSE MID TRAVERSE SHORT...
- Page 10 Secure Base. Using a 5mm Hex Wrench, secure Traverses by threading (6) M8 x 25MM screws into each Plastic Nut Assembly from above and below (4a thru 4d). Screw, M8 X 25MM, Flat Head (0002678)
- Page 11 Install Top Surface (Two Piece Top). Place Top Surfaces onto Base (5a) making sure the Table Mount Castings (pre-installed) (5b) are placed into the receiving ends of each Leg Mount Casting (5c). TABLE MOUNT CASTING LEG MOUNT CASTING...
- Page 12 Install Top Surface (Two Piece Top continued). Place tite joints into the corresponding cutouts (6a & 6b). Close the gap between the surfaces by tightening each tite joint using a 4mm hex bit (6c).
- Page 13 Install Top Surface (Two Piece Top continued). Place four (4) Splice Plates onto corresponding hole patterns on Work Surfaces (7a & 7b) and secure each Splice Plate using using six (6) #10 x 1” BK Torx screws (7c). Turn all four (4) locking components in leg 90° to secure top (7d).
- Page 14 Attach Optional Cable Tray.. Align each Cable Tray with five (5) pilot holes in the surface (8a). Attach the each Cable Tray using five (5) #10 x 5/8” Phillips Head Screws (8b). Flip table over. Screw, #10 x 5/8, BK, Phillips (0002148) CABLE TRAY...

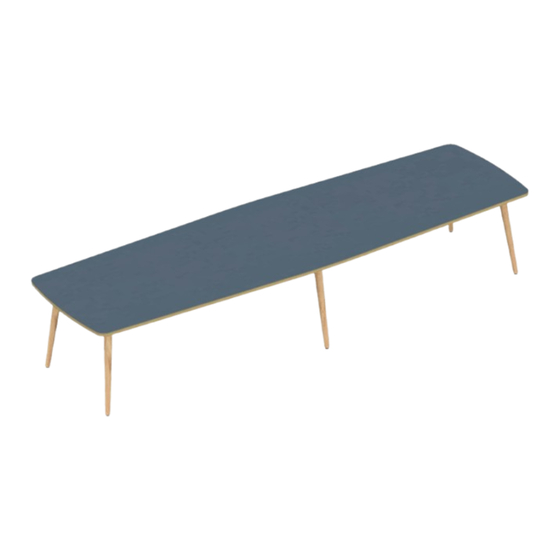

- Page 15 Conference 6 Leg Install Plastic Nut Assembly. Align and insert Plastic Nut Assembly into holes on Leg Mount Casting (1a). Refer to Figure 1 and align Plastic Nut Assembly with notches in the Leg Mount Casting (1b). PLASTIC NUT ASSEMBLY LEG MOUNT CASTING CHANNEL IN PLASTIC...
- Page 16 Install Traverse End Covers to Corner Legs. Align and attach Traverse End Covers to Corner Leg Mount Castings wherever there is a Plastic Nut Assembly installed (2a & 2b). Refer to Fig. 2 for locations for the rest of the Traverse End Covers (2c). TRAVERSE END COVER PLASTIC NUT ASSEMBLY...
- Page 17 Install Traverse End Covers to Center Legs. Align and attach Traverse End Covers to Center Leg Mount Castings wherever there is a Plastic Nut Assembly installed 3a & 3b). Refer to Fig. 3 for locations for the rest of the Traverse End Covers (3c). TRAVERSE END COVER CENTER LEG MOUNT...
- Page 18 Attach 1st Set of Traverses. Slide Traverses over each Traverse End Cover (4a thru 4d) to attach the Legs and build the Base. Assemble as shown. Note: The Long Traverses will run parallel to the length of the Table. TRAVERSE TRAVERSE END COVER EXTRUSION...
- Page 19 Secure Base. Using a 5mm Hex Wrench, secure Traverses by threading (4) M8 x 25MM screws into each Plastic Nut Assembly from above and below (5a thru 5d). Screw, M8 X 25MM, Flat Head (0002678)
- Page 20 Attach 2nd Set of Traverses.
- Page 21 Secure Base. Screw, M8 X 25MM, Flat Head (0002678)
- Page 22 Complete Base Assembly.
- Page 23 Secure Base. Screw, M8 X 25MM, Flat Head (0002678)
- Page 24 Install Top Surface (Two Piece Top). Place Top Surfaces onto Base (11a) making sure the Table Mount Castings (pre-installed) (11b) are placed into the receiving ends of each Leg Mount Casting (11c). TABLE MOUNT CASTING LEG MOUNT CASTING...
- Page 25 Install Top Surface (Two Piece Top continued). Turn all six (6) locking components in leg 90° to secure top. 90˚ LOCKING COMPONENT...
- Page 26 Attach Optional Cable Tray. Align each Cable Tray with five (5) pilot holes in the surface (13a). Attach the each Cable Tray using five (5) #10 x 5/8” Phillips Head Screws (13b). Flip table over. Screw, #10 x 5/8, BK, Phillips (0002148) CABLE TRAY...
