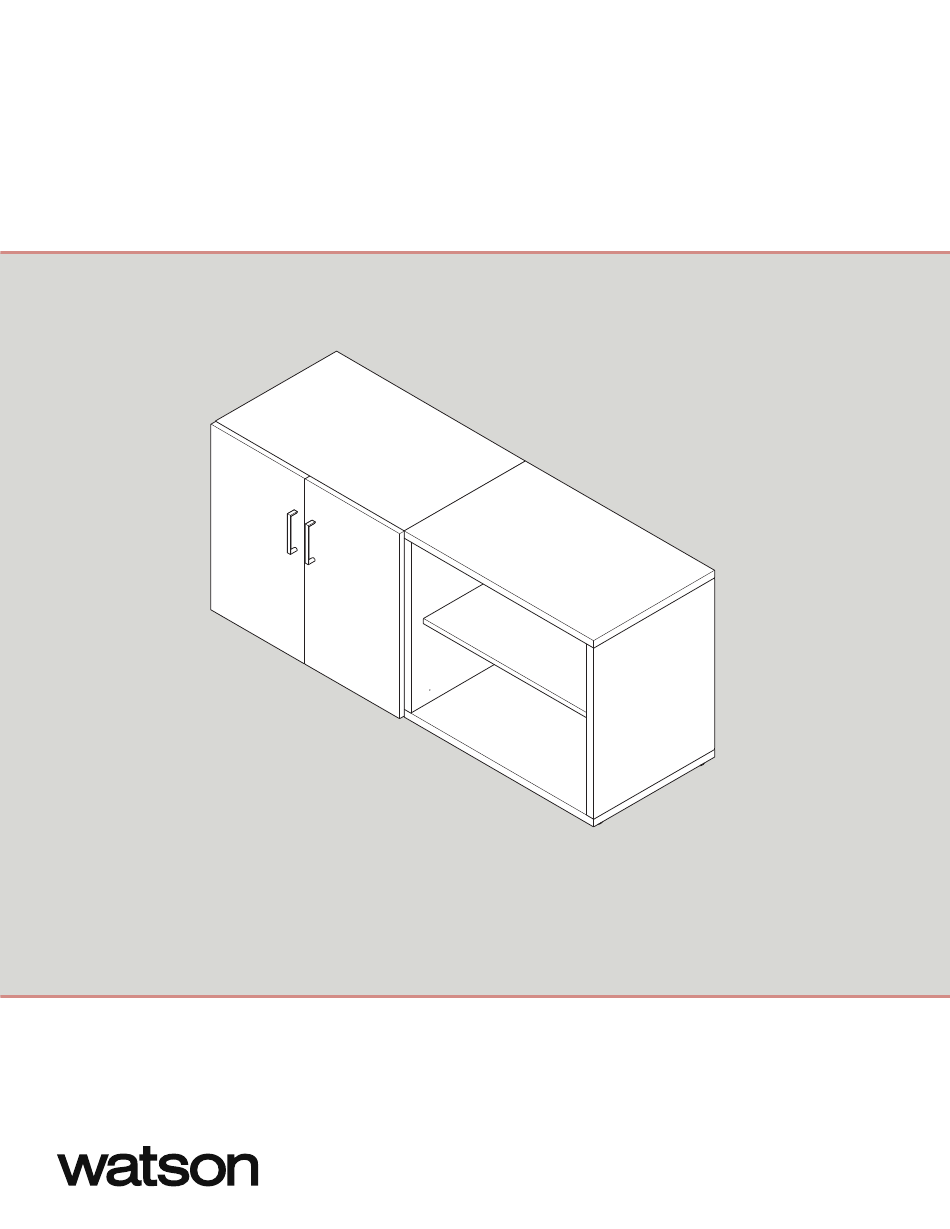

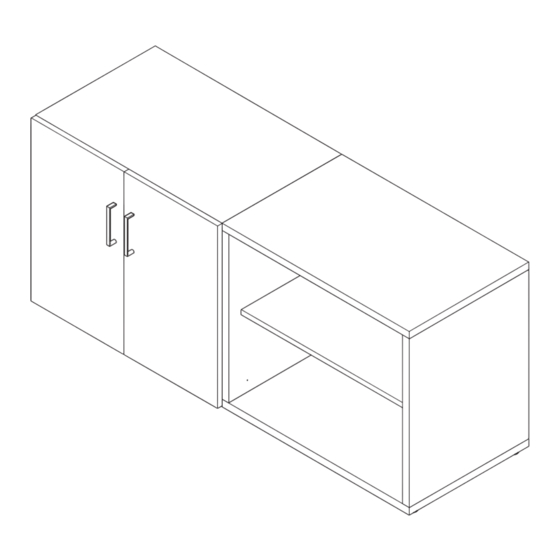

- Page 1 ASSEMBLY Zo Office Ganging Credenzas V.21.0 2/2024 360.394.1300 watsonfurniture.com...
-
Page 2: Important Safety Instructions
Important Safety Instructions This product is for commercial use only. Maximum intended load for each worksurface is 250 lbs (91 kg) When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). DANGER To reduce the risk of electric shock: 1. - Page 3 If Using Optional Utility Power - 1. The electrical desk plug must be plugged into the utility power when present. 2. This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug illustrated in sketch A (see Figure 77.1).
-
Page 4: Essential Components
Tools Additional tools such as a 90 Degree Bit and an 18” Extension are helpful for some steps. *No torque or ball bits should be used Phillips Drill/ Flat-Head 90 DGREE BIT Electric Drill Driver Bit Driver Bit 5/16” DRILL BIT 18”... - Page 5 Drill Out Holes. On the interior of each side panel in a Zo Credenza, there are four (4) score marks. The score marks are located neareach of the four corners on the panel. For sides you want to gang to another Zo Credenza, at the score marks use a 5/16”...
- Page 6 Gang Credenzas. Push the two credenzas up against each other (2a). Insert a Binding Barrel thrugh the hole you drilled out (2b). On the opposing Credenza, insert the 1/4-20 x 3/4” screw or 1/4-20 x 1-1/2” Screw in the opposing hole (2c). The Screw used will depend upon the thickness of the Credenza sides.
