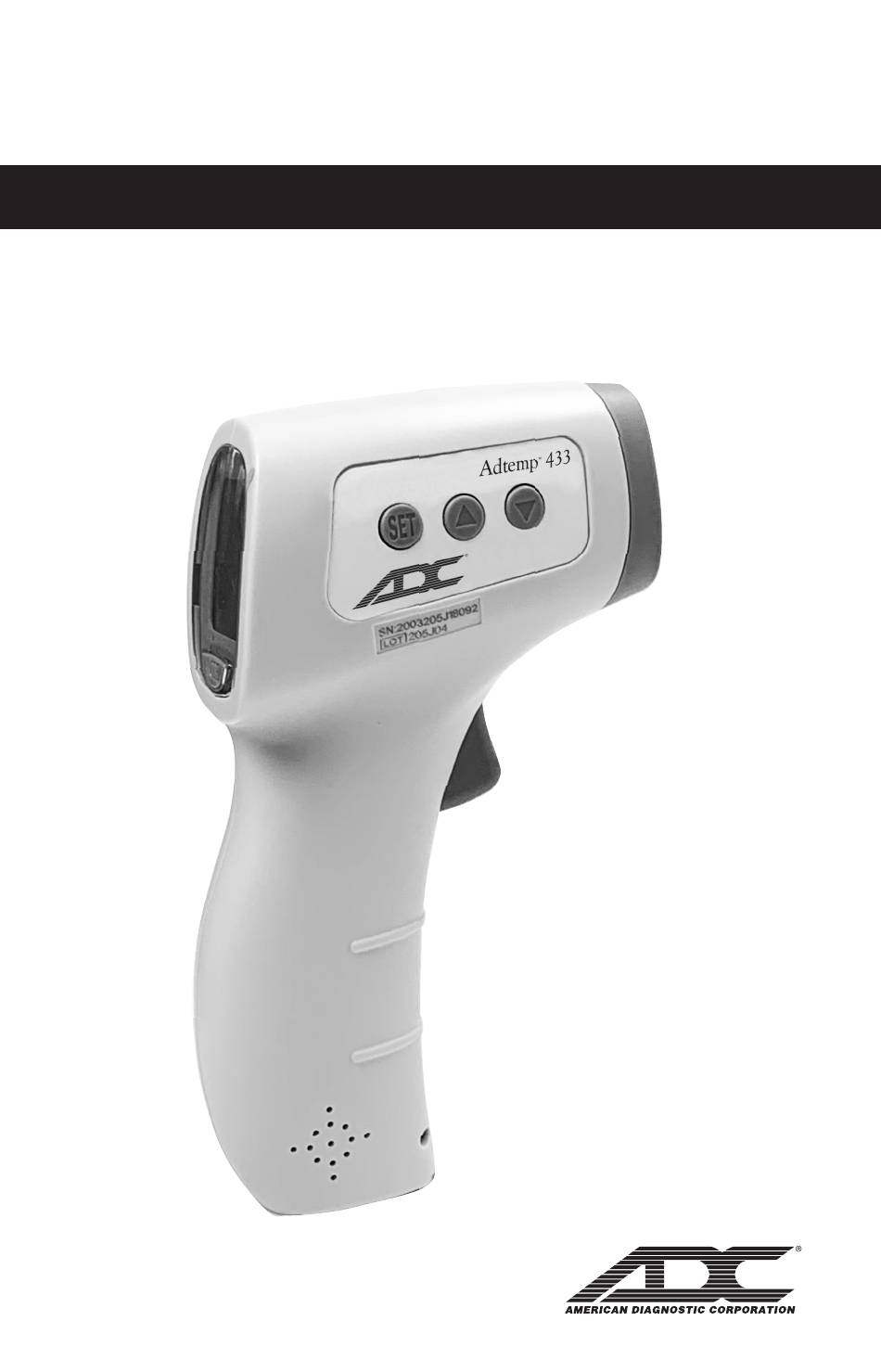

- Page 1 Adtemp Non-Contact Infrared Body Thermometer User’s Manual PLEASE NOTE: THIS MEDICAL INSTRUMENT MUST BE USED ACCORDING TO INSTRUCTIONS TO ENSURE ACCURATE READINGS Questions? Call ADC toll free at 1-800-232-2670...
- Page 2 You'll quickly appreciate the results, for you now own one of the finest non-contact thermometers that money can buy. With proper care and maintenance, your ADC Adtemp 433 is sure to provide you with many years of dependable service. The information and instructions that follow will allow you to make the most of your ADC product.
-
Page 3: Table Of Contents
Table of Contents 1. Symbols ..........4 2. -
Page 4: Symbols
1. Symbols Documentation Symbols WARNING: The warning statements in this manual identify conditions or practices that could lead to illness, injury, or death. CAUTION: The caution statements in this manual identify conditions or practices that could result in damage to the equipment or other property, or loss of data. Refer to operating instructions Storage Temperature Storage Humidity... - Page 6 Caution: Stop using this device if it operates erratically or if the display malfunctions. Caution: Contact ADC or your local ADC representative for any assistance with this device. Refer to the warranty section of this manual for contact details.
- Page 7 Caution: When the ambient temperature of the thermometer changes too much, such as moving the thermometer from one place of lower temperature to another place of higher temperature, allow the thermometer to remain in a room for 30 minutes where the temperature is between 59°F to 104°F (15°C to 40°C).
-
Page 8: Using The Thermometer

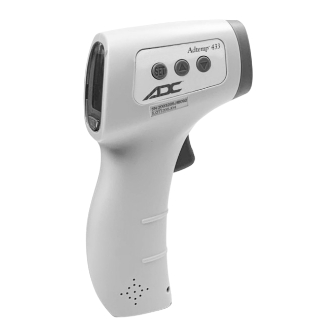

4. Using the Thermometer 4a. Controls and Features 1. IR sensor 2. Liquid crystal display (LCD) 3. MODE button 4. Down Arrow button 5. Up Arrow button 6. SET button 7. On/Measure button 8. Battery cover 9. Surface mode 10. Body mode 11. -
Page 9: Taking A Measurement
5. Taking a Measurement 1. Turn on the thermometer by pressing the On/Measure button. The thermometer will perform a self-test with all segments displayed for two seconds, followed by three consecutive beeps. When ready to measure the display will look like this: 2. -
Page 10: Memory Function
Note: All readings (body and surface) will be cleared when deleting readings from memory. 7. Adjustable Settings The Adtemp 433 has three adjustable settings: F1 Temperature Scale F/C 1. With the instrument on, press and hold the SET button until the display... - Page 11 2. Press the up "▲" or down "▼" button to move between Celsius and Fahrenheit scale. 3. Press the SET button to confirm the new setting. Please note: The factory default is Fahrenheit. F2 Fever-Alert Threshold The fever-alert threshold is the temperature at which the backlit display color turns red.
-
Page 12: Troubleshooting/Error Messages
8. Troubleshooting/Error Messages Display Situation Solution Body °F Temperature taken is not within typical human Take measurement again. temperature range. Body °F (93.2°F ~ 109.4°F or 34.0°C ~ 43.0°C) Measured over the distance 0.04-5.9 in (0.1-15 cm). Move closer to patient. Body °F Hair, antipyretic stickers, perspiration, or dirt can... -
Page 13: 9B. Cleaning And Disinfecting
Caution: Avoid touching the lens except when cleaning is required. Note: ADC is not responsible for validating alternative cleaning or disinfection processes outside of our facility. You should determine the requirements for personnel, equipment, and materials necessary to achieve your desired disinfection levels and may need to employ routine monitoring of your disinfection protocols within your facility. -
Page 14: Calibration Testing
This thermometer is calibrated at the time of manufacture. If the thermometer is operated in accordance with these instructions, periodic readjustment is not required. ADC recommends checking calibration on an annual basis or whenever clinical accuracy of the thermometer is in question. - Page 15 Memory: Power Supply Requirements Batteries: 1.5V (AAA) Alkaline battery (x2) (IEC Type LR03) Battery life: 2,000 measurements Adaptable range: 2.6V~3.6V Environmental Operating condition: Operating temperature: 59°F to 104°F (15°C to 40°C) Relative humidity: ≤85%, Atmospheric pressure: 70 Kpa - 106 Kpa Transport/Storage Storage temperature: -4°F to 131°F (-20°C to 55°C) condition:...
-
Page 16: Guidance And Manufacturer's Declaration
Calculated values of the indicators according to ISO 80601-2-56 Forehead mode: Group A1 Group A2 Group B Group C Bias 0.015 0.000 -0.042 -0.040 Standard deviation 0.123 0.121 0.121 0.137 Limits of agreement 0.245 0.243 0.243 0.274 Clinical repeatability 0.071 (for All Groups) Calculated values of the indicators according to ASTM E1965-98 Group I... - Page 17 Guidance and manufacture’s declaration - electromagnetic emission The Infrared Body Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Body Thermometer should assure that it is used in such an environment. Anti-interference detection IEC 60601 test level Compliance level...
-
Page 19: Warranty
Specific legal rights stipulated in your state may guide this warranty. If you have a legitimate claim under this warranty, send item(s) postage paid to ADC Attn: Repair Dept., 55 Commerce Dr., Hauppauge, NY 11788. Please include your name and address, phone no., proof of purchase, and a brief note explaining the problem. - Page 20 Distributed by: ADC ® Inspected in the U.S.A. 55 Commerce Drive Made in China Hauppauge, New York 11788 tel: 631-273-9600 1-800-232-2670 Hetaida Technology Co., Ltd. fax: 631-273-9659 Room 801, 802, 803, 804, 901, 2# Bldg www.adctoday.com Scientific Research Ctr email: info@adctoday.com Songhu Intelligent Valley No.
