Summary of Contents for ADC Adimals 426

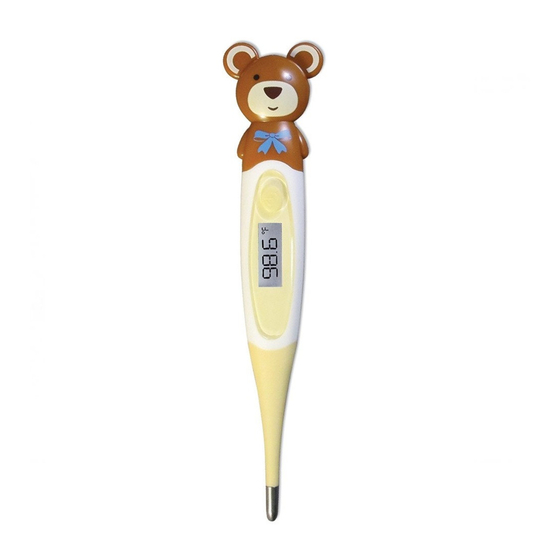

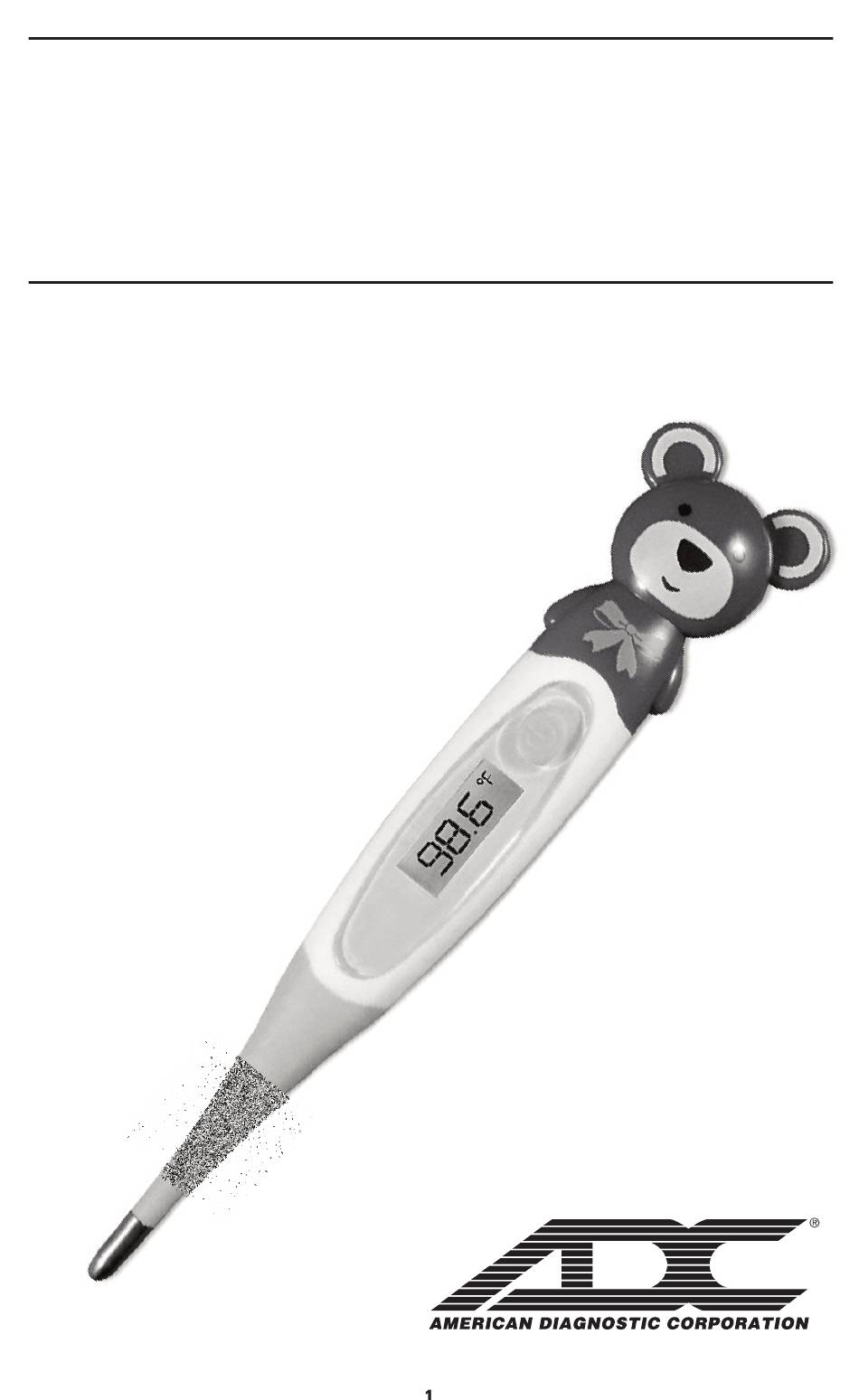

- Page 1 ® Adimals 426 Digital Thermometer Directions for Use...
- Page 2 Intended Use: A digital thermometer is a device used to measure the body temperature of a patient by means of a transducer coupled with an electric signal amplification, conditioning, and display unit. Power button Flexible Probe Battery cover LCD display Safety Information: •...
- Page 3 How to take temperature: 1. Place a probe cover carefully over the tip (Figure 1). 2. Push the Power button to turn the unit on. The LCD window will briefly display 188. 8 ° Figure 1 as an internal test. The unit will then briefly display the last read temperature.
- Page 4 Rectal use (Commonly used for babies, young children or when it is difficult to take an oral or un- derarm temperature): 1.After placing the probe cover on the thermometer, lubricate with a water-soluble jelly or petroleum jelly. 2.Gently insert the probe tip no more than 1/2 inch or 1.3 cm into the rectum. Do not force the tip into the rectum if resistance is encountered.
- Page 5 Error Indications: The unit is reading too high for its range. Try again. ° ° The unit is reading too low for its range. Try again. The battery needs to be replaced. - - - ° The thermometer was removed before a temperature was taken. Try again. There is a problem with the thermometer.
- Page 6 Specifications: 89.6°F - 109.4°F (32.0°C - 43.0°C) Measurement Range: ±0.3°F / 89.6°F - 95.7°F (±0.2°C / 32.0°C - 35.4°C) Accuracy: ±0.2°F / 95.9°F - 107.6°F (±0.1°C / 35.5°C - 42.0°C) ±0.3°F / 107.8°F - 109.4°F (±0.2°C / 42.1°C - 43.0°C) ( When measured at a standard room temperature of 73.4°F (23°C) in the water bath) 0.1°F (0.1°C)
- Page 7 Distributed by: ADC® Geon Corporation 55 Commerce Drive No. 12, Gung Ye Road, Hsi Hu Hauppauge NY 11788 Chang Hwa Hsien, Taiwan Inspected in the U.S.A. MYM STC, SL. Made in Taiwan Avda. de los Rosales, 32, 28935 www.adctoday.com Móstoles...
