Summary of Contents for ADC Adtemp 433

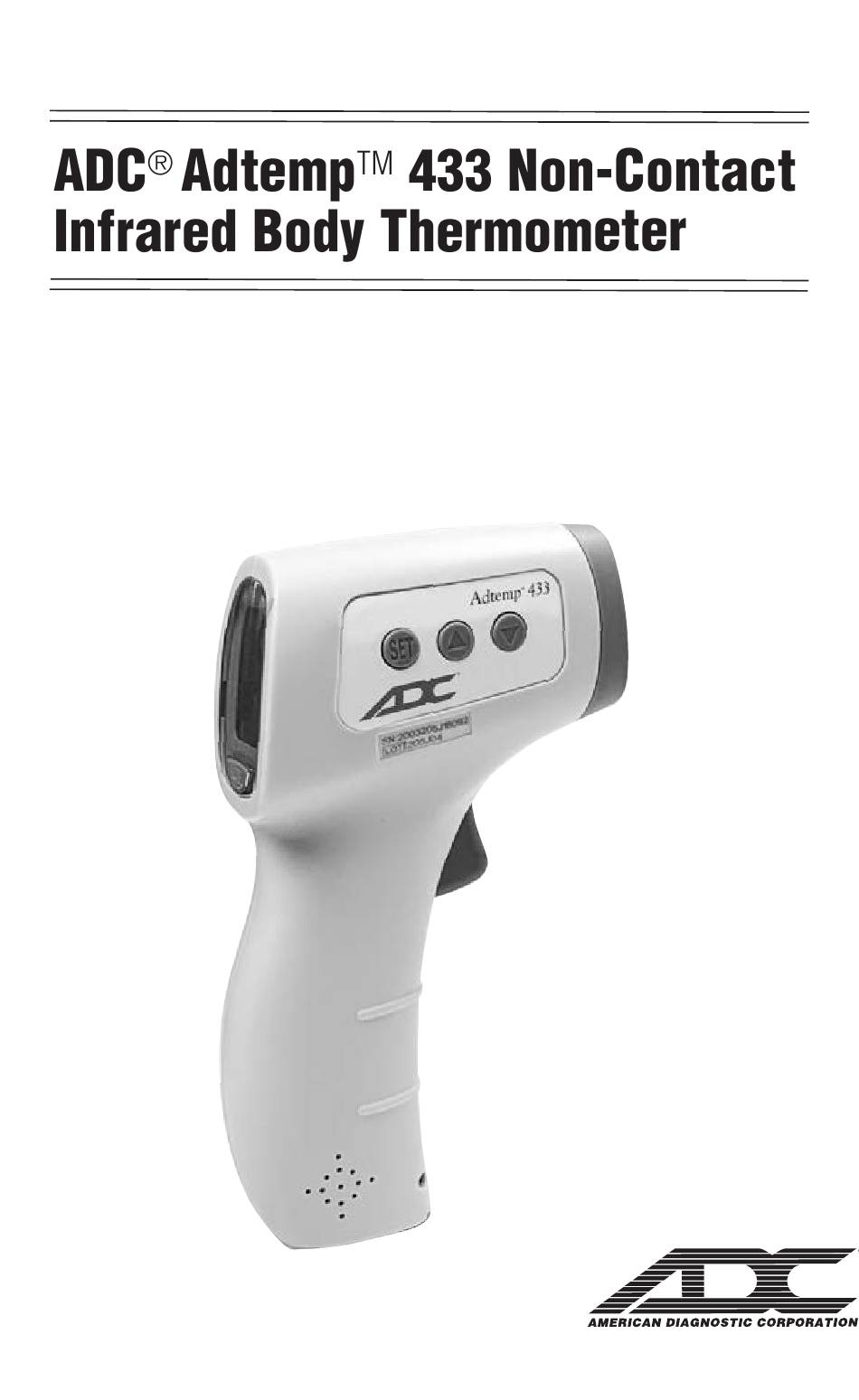

- Page 1 Instructions for Use...
- Page 2 With proper care and maintenance, your ADC Adtemp 433 is sure to provide you with many years of dependable service. The information and instructions that follow will allow you to make the most of your ADC product. Please read this booklet thoroughly before attempting to use your new thermometer.
-
Page 3: Table Of Contents
® Adtemp 433 Non-Contact Infrared Body Thermometer Table of Contents 1. SYMBOLS 2. INTRODUCTION / INTENDED USE 3. GENERAL WARNINGS AND CAUTIONS 4. USING THE THERMOMETER 4a. Controls and Features 4b. LCD Screen/Display 4c. Selecting a Scan Mode 5. TAKING A MEASUREMENT 6. -
Page 4: Symbols
1. SYMBOLS Documentation Symbols WARNING: The warning statements in this manual identify conditions or practices that could lead to illness, injury, or death. CAUTION: The caution statements in this manual identify conditions or practices that could result in damage to the equipment or other property, or loss of data. Refer to operating instructions Storage Temperature Storage Humidity... -
Page 5: Introduction / Intended Use
2. INTRODUCTION / INTENDED USE Intended use The Adtemp Non-Contact Infrared Thermometer is a clinical-grade device intended for the intermittent measurement of human body temperature in people of all ages. It can also be used to measure the temperature of objects. Please note, this manual refers to the person whose temperature is being measured as the “patient.”... - Page 6 Caution: Stop using this device if it operates erratically or if the display malfunctions. Caution: Contact ADC or your local ADC representative for any assistance with this device. Refer to the warranty section of this manual for contact details.
-
Page 7: Using The Thermometer
Caution: If measuring human forehead temperature, select "body" mode; for measur- ing objects, select "surface" mode. Caution: Do not store or use near strong electrostatic or strong magnetic fields. Caution: This product is intended for use as a screening tool in the home, in small commercial or industrial settings (e.g., offices, factories, warehouses, restaurants, retails shops, movie theaters) and in medical settings. -
Page 8: 4C. Selecting A Scan Mode
4c. Selecting a Scan Mode With the power on, press the Mode button to switch between body mode and surface mode. Body mode is used for measuring human body temperature. Surface mode is used to measure an object’s surface temperature. (The factory default is "body"... -
Page 9: Memory Function
Note: All readings (body and surface) will be cleared when deleting readings from memory. 7. ADJUSTABLE SETTINGS The Adtemp 433 has three adjustable settings: F1 Temperature Scale F/C 1. With the instrument on, press the SET button until the display reads F1. -
Page 10: Troubleshooting / Error Messages
F3 Silent Mode Silent mode will keep the unit from beeping. To turn silent mode on or off: 1. With the instrument on, press the SET button three times (until the display reads F3). 2. Press the down “▼” button or up "▲" button to toggle between on or off. 3. -
Page 11: Maintenance
Caution: Avoid touching the lens except when cleaning is required. Note: ADC is not responsible for validating alternative cleaning or disinfection processes outside of our facility. You should determine the requirements for personnel, equipment, and materials necessary to achieve your desired disinfection levels and may need to em- ploy routine monitoring of your disinfection protocols within your facility. -
Page 12: Calibration Testing
10. CALIBRATION TESTING This thermometer is calibrated at the time of manufacture. If the thermometer is oper- ated in accordance with these instructions, periodic readjustment is not required. ADC recommends checking calibration on an annual basis or whenever clinical accuracy of the thermometer is in question. -
Page 13: Technical Specifications
12. TECHNICAL SPECIFICATIONS °F / °C Measurement unit: Adjusted mode (Body mode) Operating mode: Direct mode (Surface mode) Forehead Measuring site: Axillary Reference body site: Measurement range: Body mode: 93.2°F to 109.4°F (42.9°C to 43.0°C) Surface mode: 32.0°F to 212.0°F (0°C to 100.0°C) Accuracy: Body mode:... - Page 14 Safety classification of ME equipment Protection against Internally powered ME equipment electric shock: Non applied part Applied part: Protection against harmful ingress of water or IP22 particulate matter: Continuous operation Mode of operation: NOTE: Not intended to be sterilized. Not for use in an oxygen rich environment.
-
Page 15: Guidance And Manufacturer's Declaration
13. GUIDANCE AND MANUFACTURER’S DECLARATION Guidance and manufacture’s declaration - electromagnetic emission The Infrared Body Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Body Thermometer should assure that it is used in such an environment. Anti-interference detection IEC 60601 test level Compliance level... - Page 16 Guidance and manufacture’s declaration - electromagnetic emission The Infrared Body Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Body Thermometer should assure that it is used in such an environment. Emission test Compliance RF emissions CISPR 11...
-
Page 17: Warranty
Specific legal rights stipulated in your state may guide this warranty. If you have a legit- imate claim under this warranty, send item(s) postage paid to ADC Attn: Repair Dept., 55 Commerce Dr., Hauppauge, NY 11788. Please include your name and address, phone no., proof of purchase, and a brief note explaining the problem. - Page 18 Distributed by: ADC ® Hetaida Technology Co., Ltd. 55 Commerce Drive 4F, BaiShiDa High-Tech Park Hauppauge, NY 11788 XiangDong Industrial Area, DaLingShan Town, Inspected in the U.S.A. DongGuan City, Made in China GuangDong, China tel: 631-273-9600 1-800-232-2670 Wellkang, Ltd. fax: 631-273-9659 16 Castle St, Dover, CT16 1PW, UK email: info@adctoday.com...
