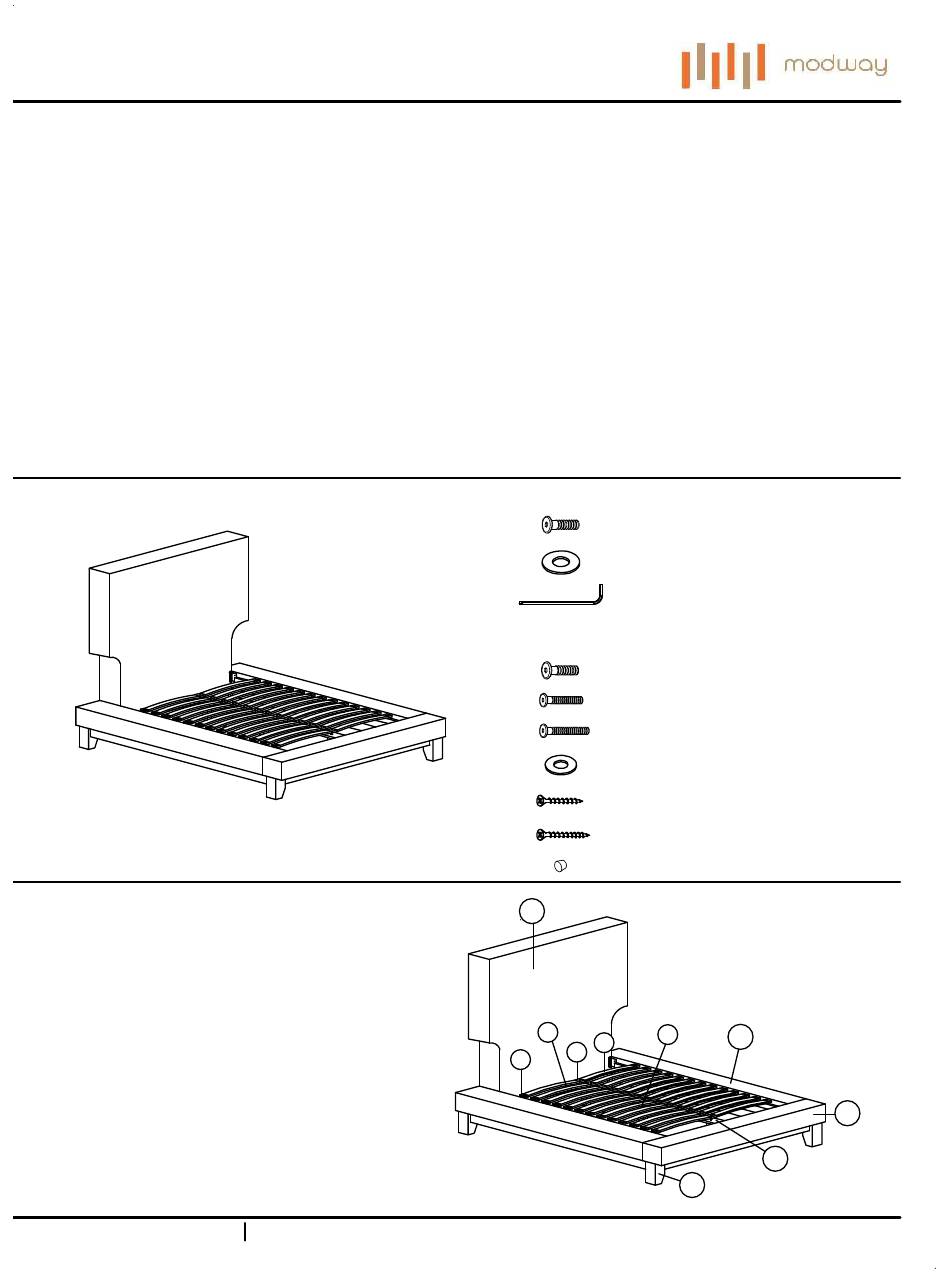

MOD-5237
Thank you for purchasing the MODWAY BED !
Before you start,here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed, we recommed that it is assembled by two adults,on a carpeted or
padded area, in the room that it is intended for.Approx assembly time:30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled.Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten.Depending on use, it may be necessary to tighten
the components from time to time,so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
Component :
1- HEADBOARD
2- FOOTBOARD
3- SIDE RAILS
4- CENTER RAIL
5- SLATS
Customer Service 908-368-1025 www.modwayfurniture.com
Hardware for Headboard
Hardware for Bed Frame and Legs
6- LEG SUPPORT
7- CENTER SUPPORT
8- BED LEG
9- BED SLAT HOLDER(BIG)
10-BED SLAT HOLDER(SMALL)
A
JCBC BOLT M6 X 25MM
B
FLAT WASHER 1/4''
C
M4 ALLEN KEY (BALL SHAPE)LONG
D
JCBC BOLT M6 X 25MM
E
JCBC BOLT M6 X 50MM
F
JCBC BOLT M6 X 70MM
G
FLAT WASHER 1/4''
H
CSK SCREW M4 X 32MM
I
CSK SCREW M4 X 38MM
J
WOOD BUTTON
1
7
5
9
10
6
3
2
4
8
Page 1/5
x4
x4
x1
x4
x7
x4
x4
x2
x12
x4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for modway MOD-5237
Summary of Contents for modway MOD-5237
- Page 1 MOD-5237 Thank you for purchasing the MODWAY BED ! Before you start,here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the bed, we recommed that it is assembled by two adults,on a carpeted or padded area, in the room that it is intended for.Approx assembly time:30 minutes.
- Page 2 MOD-5237 STEP 1 : Place SIDERAILS(3) and FOOTBOARD(2) on a carpeted or padded area as shown. Attach FOOTBOARD(2) with SIDERAILS(3) Place together. Then inserting JCBC BOLT M6 x 25mm(D) and FLAT WASHER '' (G).Tighten with M4 Allen Key(Ball Shape)Long(C). Place...
- Page 3 MOD-5237 STEP 3 : Place with the and attach them by inserting the Headboard (1) Siderail (3) JCBC BOLT M6 x 25mm(A),Flat Washer ''(B) . Place Tighten with M4 Allen Key (Ball Shape)Long(C). Place B x 4 A x 4 C x 1 Hardware &...
- Page 4 MOD-5237 STEP 7 : Place on the and insert into the hole. the Bed Slat Holder(Small)(10) Side Rail(3) Place Then,place the Bed Slat Holder(Big)(9)on the Center Rail(4) and insert into the three hole. Place Hardware & Tool required STEP 8 :...
- Page 5 MOD-5237 STEP 5 : Place on the and attach them by inserting the Center Support(7) Headboard (1) JCBC BOLT M6 x 50mm(E). Place Tighten with M4 Allen Key (Ball Shape)Long(C).Then,put the Center Rail(4) on the Center Support(7) and screw it with CSK Screw M4 x 32mm(H).Later,secure the Center Rail(4)with Leg Support(6) by inserting JCBC BLOT M6 x 50mm(E)
